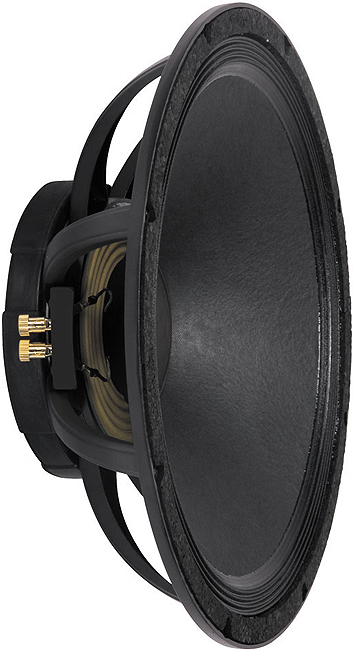

1505-8 KADT BW Low Frequency Driver

Regular Price $259.99 Our Price $139.99

Perfect for the Peavey SP Series Specifications: 15" Impedance: 8 Ohms Power Capacity: 1400w Peak, 700w Programs, 350w Continous Sensitivity:99.0 dB/1 W 1 m Usable freq. range: 40Hz - 2 kHz Cone: Kevlar impregnated cellulose Voice coil diamter: 4.0" / 100mm Voice coil material: Aluminum ribbon wire, Polyimide-impregnated fiberglass former, Nomex stiffener, Solderless diffusion welded OFHC copper leads. Net weight: 17 lbs Znom (ohms): 8 Revc (ohms): 5.23 Sd (square Meters): 0.084 BL (T/M): 17.7 Fo (Hz): 50.8 Vas (liters): 143.5 Cms (uM/N): 143.3 Mms (gm): 68.5 Qms: 7.599 Qes: 0.367 Qts: 0.350 Xmax (mm): 0.9 Le (mH): 0.28 SPL (1W 1m): 99 No (%): 4.50% Vd (cu. in./ml): 4.6/76 Pmax (watts pgm.): 700 Disp. (cu. in./ml): 197/3229
