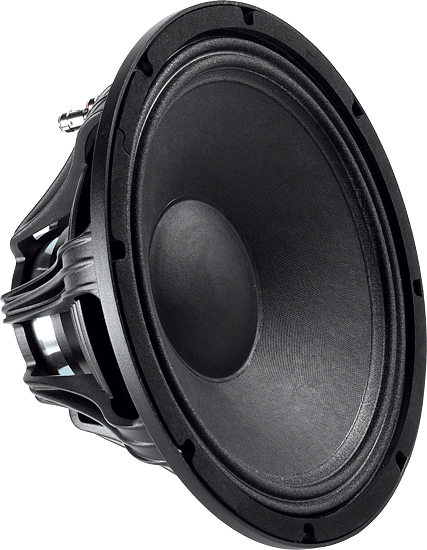

Faital Pro 12FH500

Regular Price $289.99 Our Price $209.99

NOMINAL SPECIFICATIONS Nominal Diameter 300 mm (12 in) Overall Diameter 316 mm (12.44 in) Bolt Circle Diameter 298.5 mm (11.75 in) Baffle Cutout Diameter 282.5 mm (11.12 in) Depth 155.75 mm (6.13 in) Flange and Gasket Thickness 12.45 mm (0.49 in) Net Weight 4 Kg (8.8 lb) Shipping Box 350x350x200 mm (13.8x13.8x7.9 in) Shipping Weight 4.6 Kg (10.1 lb) ELECTRICAL SPECIFICATION Minimum Impedance 6.4 Ohm Nominal Impedance 8 Ohm Nominal Power Handling * 500 W Maximum Power Handling ** 1000 W Sensitivity (1W/1m) 97 dB Frequency Range 45÷4000 Hz Voice Coil Diameter 77 mm (3 in) Winding Material Al Former Material Glass Fiber Winding Depth 18 mm (0.71 in) Magnetic Gap Depth 10.5 mm (0.41 in) Flux Density 1.2 T THIELE & SMALL PARAMETERS Fs 45 Hz Re 5.1 Ohm Bl 17.5 N/A Mms 56 g Cms 0.22 mm/N Rms 3.24 Kg/s Qes 0.26 Qms 6.9 Qts 0.25 Vas 76.2 dm^3 (2.69 ft^3) Sd 490.4 cm^2 (76 in^2) Xmax *** 7.25 mm Xdamage **** 16 mm Le 0.83 mH Mmd 50 g Eta Zero 2.5 %
