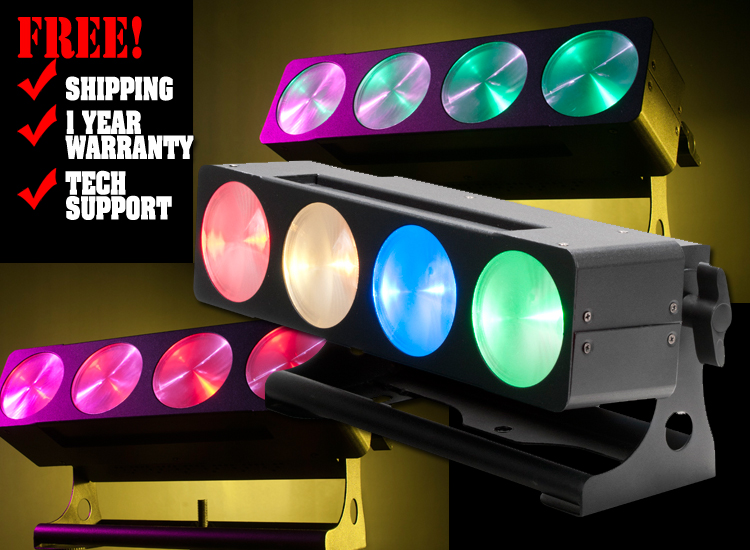

American DJ Dotz Bar 1.4

ADJ’s Dotz BAR 1.4 is the perfect size Wash/Blinder fixture for DJ,BAND small stage with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing fixture powered by 4 x TRI COB LEDs. Suitable for staging and nightclub lighting because it produces wide covers at a short distance and has no RGB color shadows.

The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, and a 4-button LCD DMX display. Dotz Flood may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller.

1 x 4 COB TRI LED high output linear wash bar
COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
Use as Wash/Bar or Pixel Mapped for a stunning visual effect
Great for Stage Lighting, Bands or Night Clubs
4x Operational modes: Auto Run, Sound Active, Built-In Programs, and DMX Controlled Mode
5 DMX channel modes: 3, 6, 8, 12 & 17 channel
Individual Pixel controllable in 12 or 17 channel DMX mode
Pixel Flip options changes pixel orientation
RDM Compliant (Remote Device Management)
Built-In preset colors and programs
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
25-degree beam angle

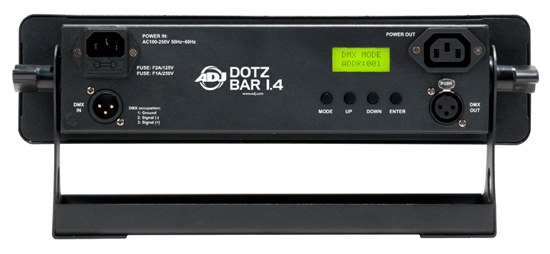

3 -pin XLR chassis mount connectors for DMX linking
IEC AC IN/OUT to daisy chain power (up to 10 Dotz Bar 1.4’s @ 120V and 22 Dotz Bar 1.4’s @ 230V)
Power Draw: 48W total (All LED's @ Full)
4-button DMX LCD display
Single yoke allows fixture to be mounted
Light Source: 4x 9-Watt COB TRI LEDs (RGB: 3 in 1)
Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
Dimensions (LxWxH): 13. 5” x 5.75” x 5.75”/ 340 x 140 x 140mm
Weight: 7 lbs. / 2.8 kgs.
