Chicago DJ Equipment Online Superstore - PRO DJ & STUDIO HEADPHONES & ACCESSORIES AT THE LOWEST PRICES!

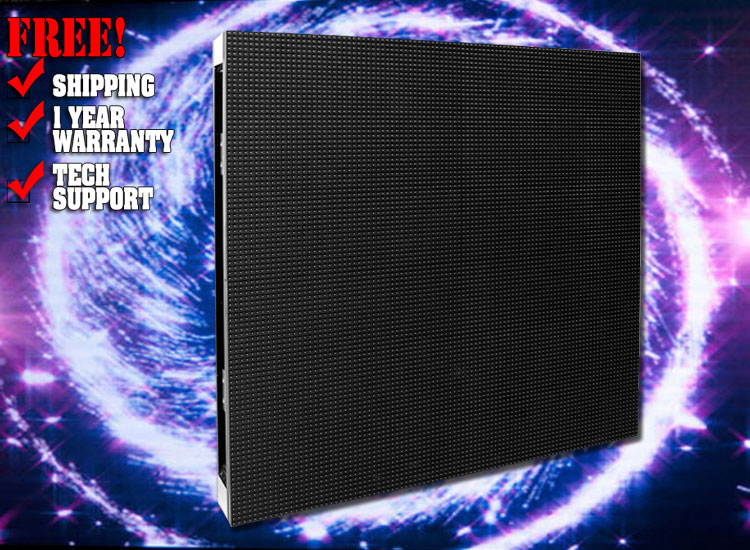

ADJ AV6 LED Video Wall
Visit us on Facebook Visit us on Twitter Visit us on YouTube



ADJ AV6 LED Video Wall
2 year extended warranty
Details
Regular Price $1499.95
Our Price $999.99
Free Shipping
Two Year Extended Warranty
Store Pick-Up Voltage Converters We'll beat any price!

ADJ AV6 LED Video Wall

Specifications

    Pixel Pitch: 6.0mm (0.25")

    • LED Configuration: 3-in-1 SMD2121 LED
    • Pixel Density: 96x96; 27,777 per square meter
    • For indoor use only
    • Size: 576 x 576 x 75mm / 22.75" x 22.75" x 3"
    • Module Quantity: 4
    • Weight: 23lbs. / 8.15Kg

    MECHANICAL RATINGS:

    • Surface Flatness: Gaps<0.5mm

    OPITCAL RATINGS:

    • Brightness: 1200 NITS
    • View Angle: Horizontal 140°/Vertical 140°
    • Distance: 20ft (6m)
    • Gray Scale / Display Color: 14Bit
    • Brightness Adjustment: 0~100% 100 Levels
    • Processing: 14Bit

    POWER SUPPLY:

    • Operation Power: 100~240V 50-60Hz
    • Max. Power Consumption: 300W/per panel
    • Ave. Power Consumption: 120W/per panel
    • Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

    CONTROL SYSTEM:

    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-60Hz
    • Scan Mode: 1/12 Duty
    • Refresh Rate: 1200Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable <100m or Fiber Optic >120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet

    ENVIRONMENTAL:

    • Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/
    • 10-90% (No Condensation)
    • Operating Life / MTBF: 100,000 Hours / 5,000 Hours
    • Protection Level: IP20 (Front and Back)
    • Out of Control Rate: < 0.02%
    • Listings: CE, FCC Class A

    OPTIONAL ACCESSORIES:

    • All accessories to be announced at a later date.

ADJ AV6

ADJ AV6

ADJ AV6

ADJ AV6

ADJ AV6

ADJ AV6
