ADJ AV3X2 Video Wall Packages

Description

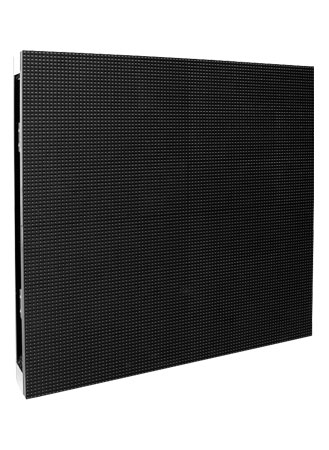

Affordable 6mm LED Video Wall for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship.

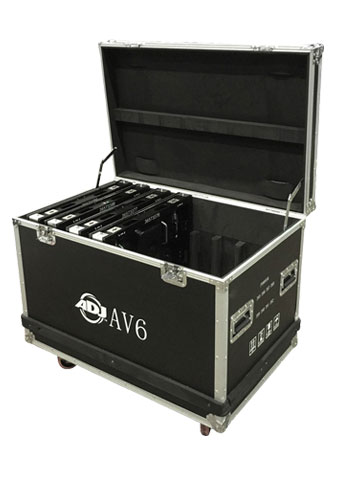

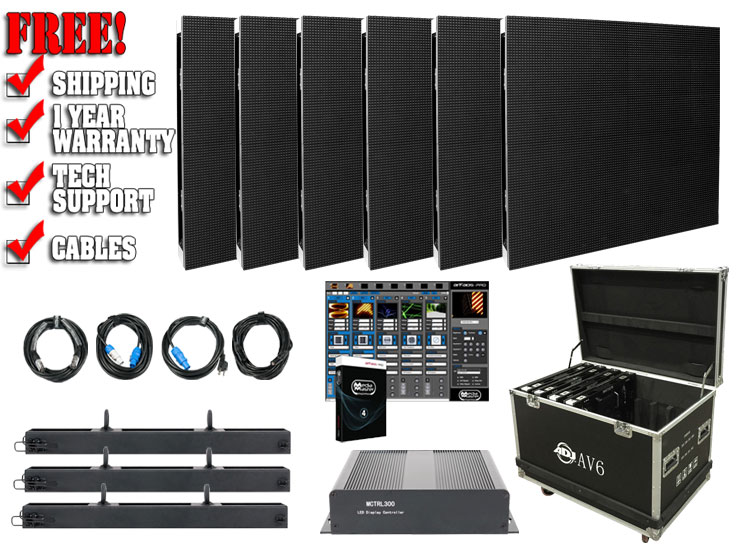

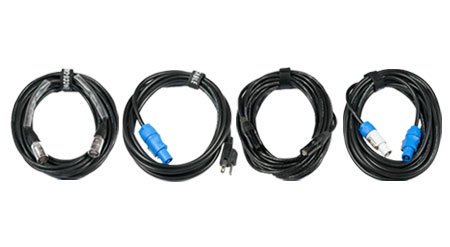

This package includes: 6x AV6, 3x AV6 Rigging Bars, 5x CAT303, 5x PLC3, 1x CAT461, 1x MPC015, 1x MCT RL300, 1x AV6 Flight Case, 1x Media Master Express

Features:

• Pixel Pitch: 6.0mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Surface Flatness: Gaps < 0.5mm
• Brightness: 1200 NITS
• View Angle: Horizontal 140°/Vertical 140°
• IP20 (Front and Back) Rating
• Listings: CE, FCC Class A, RoHS, China RoHS

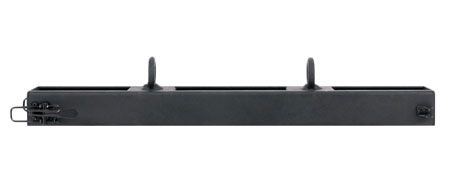

AV6-Bar

Single panel rigging bar for AV6 with up to 20 panels max vertical hang.

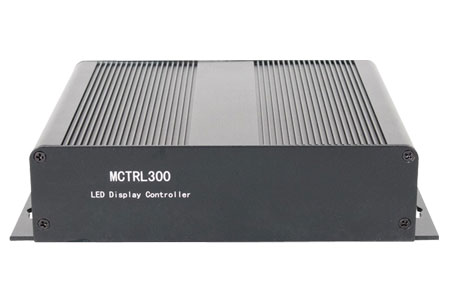

AV6 MCT-RL300

Features:

• Control Mode: Synchronous Display with Control PC by DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable < 100m or Fiber Optic > 120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

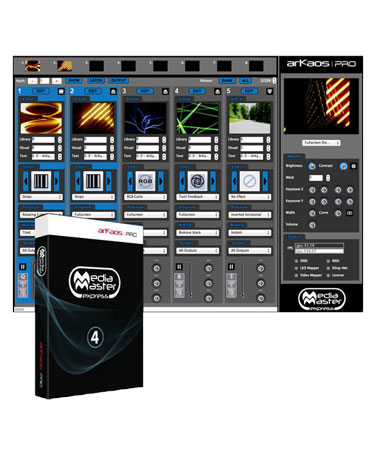

Media Master Express Panel Software

Features:

• Control video layers with just a few DMX dimmers or MIDI notes
• Work on a single DMX universe or MIDI channel
• Drag & Drop visuals directly on the main interface
• Organize your shows with up to 64 patches of 64 cells
• Control up to 3 parameters per cell via DMX or MIDI
• Optional fade time on trigger
