2x2 Video Wall Controller 1080p Support Cascaded and Remote Conrtrol

Specifications

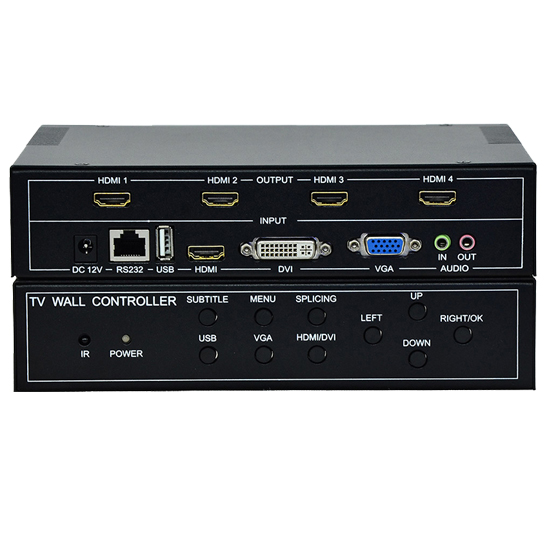

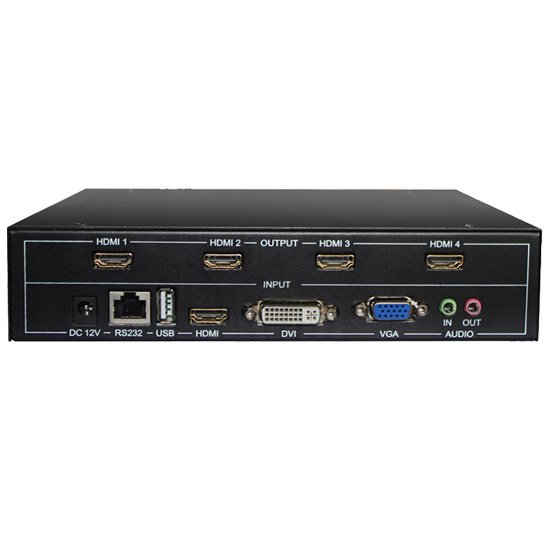

• Input signal
• VGA : HD15 interface; Support 640x480/85HZ to 1920x1200/60HZ
• HDM1 : HDM1.4 (HDOCP1.3) DV11.0,HDM1 embedded audio;
• DVI : DVI-I interface (24+5), maximum resolution support 1920x1080/60HZ;
• USB : The standard USB2.0 interface, can be connected with the U disk and other storage devices; with video, audio and image decoding, supportTXT document playback support round robin play. pause, fast fotward, program list and other functions;
• Output Signal
  • HDM1 Output : 4 HDM1 output, support 2*2,1*4,4*1 splicing mode; single maximum support for the 16 HDM1 Single Output; maximum resolution support 1920*1080/60HZ
  • Audio Output : 3.5 audio interface support stereo, audio and video spsal synchronisation switch;
• Others
• Control Mode : Remote Control, Front panel buttons, RS-232
• Power Supply : DCl2V-3A
• Splicing Scale : Simple four splicing
• Power Dissipation : 50W

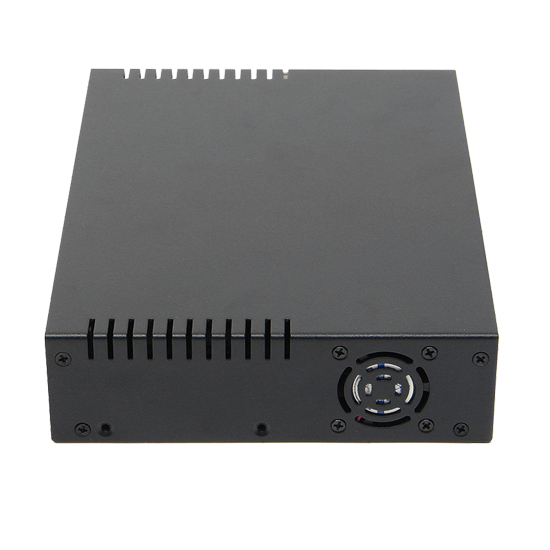

• Chassis Specifications
• Size : 210mm(length)*160mm(width)*45mm(height)
• Weight: 1.2kg
