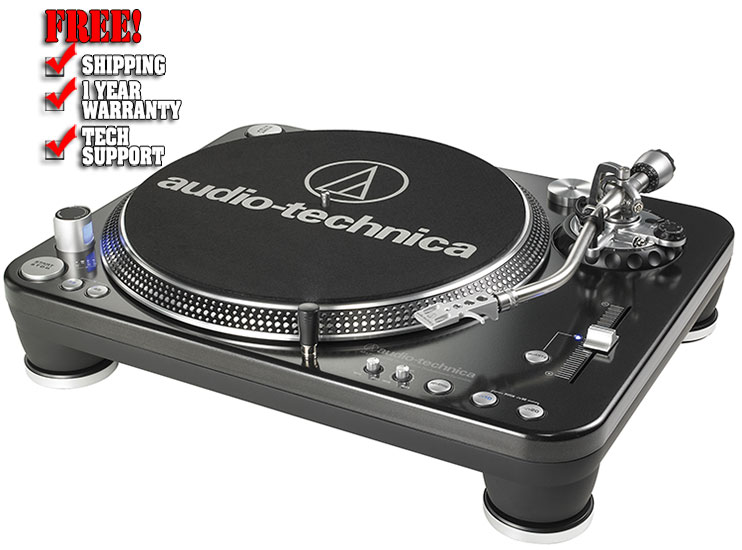

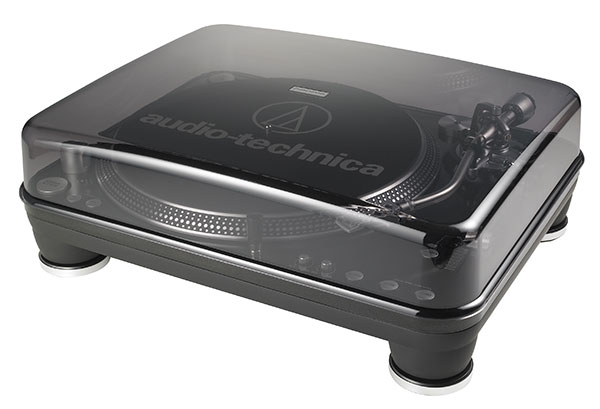

Audio-Technica AT-LP1240-USB

Description

This superbly made, professional quality DJ turntable is designed primarily for DJ use in nightclubs, touring and mobile applications. It can also be used by music lovers to play their record collections at home. Its sleek, elegant gloss-black and silver design fits into any stereo music or home entertainment system, and its built-in switchable phono preamp enables it to be used with a wide variety of receivers, powered speakers and other A/V components. As an added benefit, the turntable offers a USB output that allows direct connection to a computer for easy LP-to-digital conversion.

Built to deliver exceptional music reproduction even under the most demanding conditions of professional use, the AT-LP1240-USB utilizes a powerful direct-drive 16-pole, three-phase motor for unwavering speed stability along with easy back-cueing, forward and reverse play and quiet operation at 33-1/3, 45 or 78 RPM. The turntable features an S-shaped tone arm with adjustable tracking force (counterweight) and anti-skate adjustment and a removable universal cartridge mount (cartridge available separately).

Additional DJ-friendly features including a damped cast-aluminum platter with stroboscopic speed markings and slip mat, an illuminated speed indicator and adjustable pitch control, a start/stop button, a removable stylus target light, a dedicated tone arm grounding lug, a hydraulically-damped lift lever and a locking tone arm rest that keeps the arm and cartridge in place during transport.

The turntable includes PC- and Mac-compatible Audacity® software that converts the audio on a record to MP3, WAV or other format digital audio files.

Features:

• Direct-drive, high-torque, multipole motor for demanding DJ use


• Fully manual operation


• Start and brake control adjustments


• Selectable 33/45/78 RPM speeds


• Professional anti-resonance, damped die-cast aluminum platter with DJ-style slip mat


• ½” mount universal headshell (phono cartridge sold separately)


• Balanced S-shaped tone arm with hydraulically damped lift control, anti-skate, height adjustment and lockable rest


• Mac- and PC-compatible Audacity software to create digital files from vinyl records


• Built-in switchable phono pre-amplifier with detachable RCA output cables


• Stroboscopic platter with speed indicator


• Forward/reverse operation and variable pitch control with quartz speed lock


• Removable stylus target light for easier cueing in low light

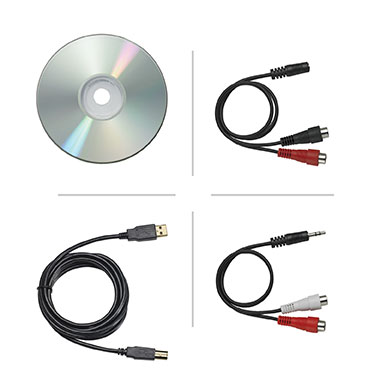

• Includes: Mac- and PC-compatible Audacity software, Dual RCA output cable with ground wire, Two output adapter cables (dual RCA female to mini-plug male & dual RCA female to mini-plug female), USB cable, Power cord, 45 RPM adapter, Counterweight, DJ-style slip mat, Removable dust cover

Specifications:

• Type	3-speed, fully manual operation
  Motor	16-pole, 3-phase, brushless DC motor
  Drive Method	Direct drive
  Speeds	33-1/3 RPM, 45 RPM, 78 RPM
  Turntable Platter	332 mm dia. die-cast aluminum
  Starting Torque	>4.5 kgf.cm
  Braking System	Electronic brake
  Wow and Flutter	< 0.1% WRMS (JIS WTD) with 33 RPM
  Signal-to-Noise Ratio	> 55 dB (DIN-B)
  Output Level	Pre-amp "PHONO": 2.5 mV nominal at 1 kHz, 5 cm/sec (HP-4005)  Pre-amp "LINE": 150 mV nominal at 1 kHz, 5 cm/sec (HP-4005)
  USB Function	A/D, D/A - 16 bit 44.1 kHz or 48 kHz USB selectable;  Computer interface - USB 1.1 Compliant Windows XP or above or MAC OSX or above
  Power Supply Requirements	120V AC, 60 Hz
  Power Consumption	13W
  Dimensions	450.0 mm (17.72") W x 353.0 mm (13.90") D x 166.5 mm (6.56") H
  Weight	12.5 kg (27.6 lbs.)
  Accessories Included	Slip mat; dust cover; platter; 45 RPM adapter; counterweight; headshell; power cord; USB cable; dual RCA (female) to 1/8" (3.5 mm) mini-plug (male) stereo adapter cable; dual RCA (female) to 1/8" (3.5 mm) mini-plug (female) stereo adapter cable; dual RCA (male) cable with integrated ground wire; stylus target light; Audacity software (CD)





  ---

  RIAA: 20-20kHz, +1/-3dB (In: 1.5mV 1kHz)
  Tone arm type: Static balanced S-shaped tone arm with detachable headshell
  Effective arm length: 230 mm
  Overhang: 15 mm
  Height of tone arm adjustment range: 0-6 mm
  Tracking error angle: Less than 3 degrees
  Applicable cartridge weight:
  Without headshell 3.5 - 8.5 g,
  With headshell 13 - 18 g
  Anti-skating range: 0-3 g
