Pioneer DDJ-SB ELS10A MEGA PACK

Overview

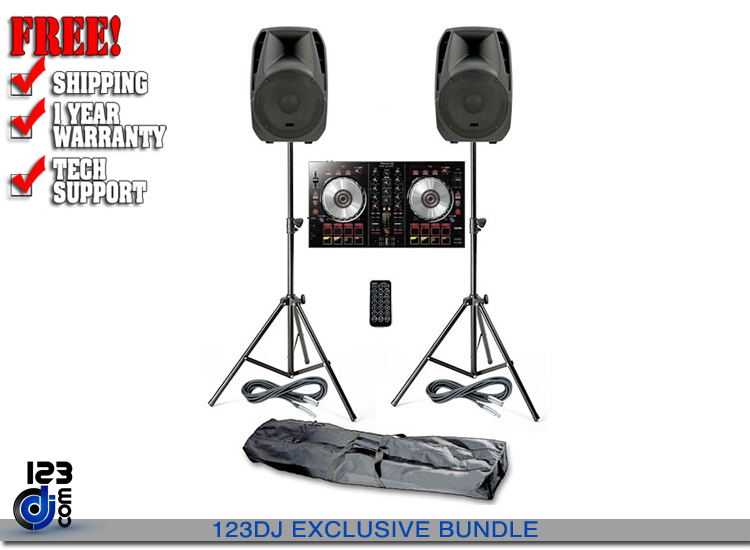

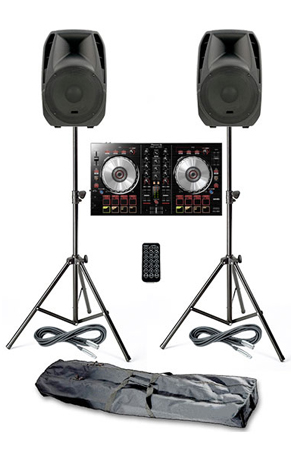

Pioneer DDJ-SB ELS10A Mega Pack Includes:

• QNTY: 1 Pioneer DDJ-SB
• QNTY: 2 American Audio ELS10A
• QNTY: 2 Heavy Duty Speaker Stands With Speaker Stand Cables
• QNTY: 2 RCA To XLR Cables:

Pioneer DDJ-SB

Pioneer DDJ-SB 2-channel DJ controller is designed for use with Serato? DJ Intro software. The DDJ-SB features similar functions as Pioneer's extremely popular DDJ-SX and recently announced DDJ-SR. More compact and portable than the other models, the DDJ-SB is designed for the entry-level DJ who wants the same look and feel as the upper models but with more basic operability and at a more affordable price. The Pioneer DDJ-SB uses the Serato DJ Intro software and incorporates four performance pads, large jog wheels, and a new Filter Fade function that assists users in smoothly blending together tracks of different styles.

American Audio ELS10A Specifications

• 10-inch 2-way Powered Speaker
• 1-inch Compression Driver
• Time Aligned Electronic Crossover
• Flyable or Stand Mountable
• Built-in XLR Microphone input with volume control
• XLR Line-in with Level, Treble & Bass control
• XLR through output
• Active signal limiting system with Clip LED indicator on rear panel
• Dimensions (LxWxH): 18.5" x 12.5 x 10" / 469.9 x 317.5 x 254mm
• Weight: 18 lbs. / 8 kg.
• Selectable Voltage: AC 115/60Hz or 230V/50Hz

SPEAKER SPECIFICATIONS:

• Frequency Response: 70Hz - 18KHz
• Crossover: Active
• Nominal Dispersion: 90ø x 50ø (HXV)

AMPLIFIER SPECIFICATIONS:

• Balanced: Line 20KO, Mic 3.6KO
• Unbalanced: Line 10KO, Mic 1.8KO

CROSSOVER:

• Low Pass: 2nd order filter 2.7KHz @ 12 dB/octave
• Low Cut: 2nd order filter 40Hz @ 12 dB/octave
• S/N Ratio:Line 100dB,Mic 80dB

CHANNEL EQUALIZER:

• Bass: 100Hz 15dB
• Treble: 10KHz 19dB
