Electro-Voice ZLX-15P Pack

Electro-Voice ZLX-15P Pack

Regular Price $2195.99

Our Price $1097.99

WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $30 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $60.00

Regular Price $2195.99

Our Price $1097.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $30 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $60.00

We'll beat any price!

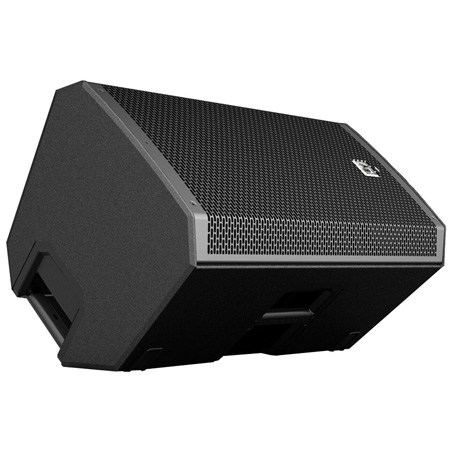

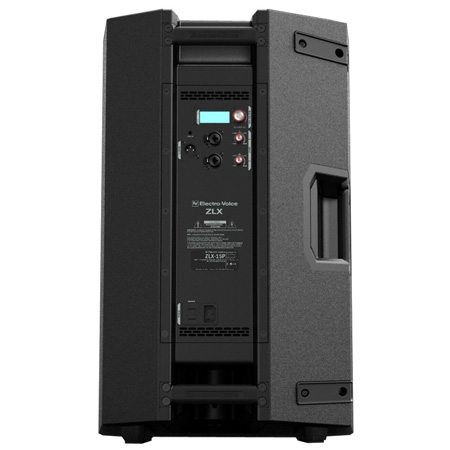

Electro-Voice ZLX-15P 15" Two-Way Powered Loudspeaker

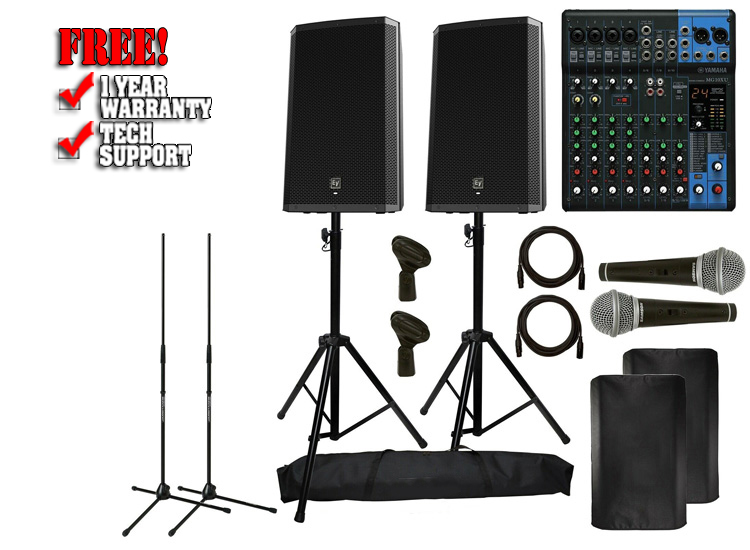

This Package Includes:

  • (2) Electro-Voice ZLX-15P 15" Two-Way Powered Loudspeakers
  • (2) Properly Fitting & Durable Protective Transport Covers
  • (1) Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS
  • (2) Generic Multi-Purpose Dynamic Vocal Microphones
  • (2) Ultimate Support JS-MC100 JamStands Tripod Microphone Stands [16807]
  • (2) 20FT Sure-Fit XLR Connecting Cables
  • (5) 8" Reusable Hook and Loop Cable Ties

Each Electro-Voice ZLX-15P Retail Box Includes:

  • (1) Electro-Voice ZLX-15P Loudspeaker
  • (1) Power Cord
  • (1) User Guide

The MG10XU Retail Box Includes:

  • (1) Yamaha MG10XU 10-Input Stereo Mixer with Effects and UBS
  • (1) AC Power Adaptor
  • (1) Technical Specifications
  • (1) Set of Cubase AI Download Information
  • (1) Owner's Manual

Each 16807 Retail Box Includes:

  • (1) Ultimate Support JS-MC100 JamStands Tripod Microphone Stand [16807]

The XC-T5 Box Includes:

  • (5) 8" Reusable Hook and Loop Cable Ties

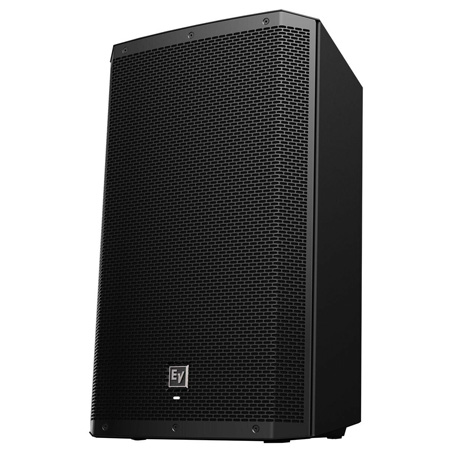

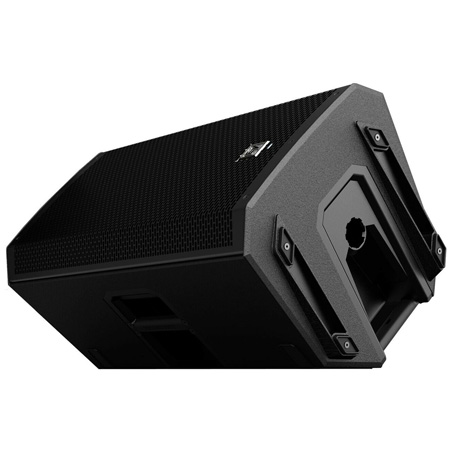

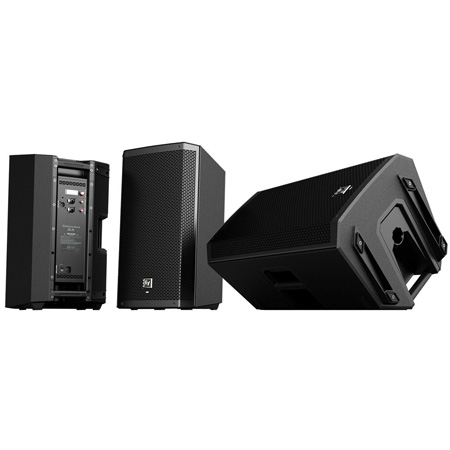

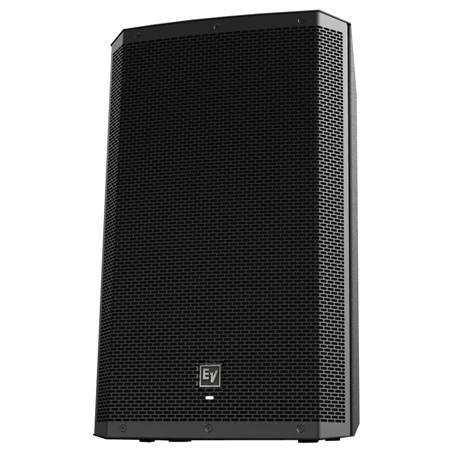

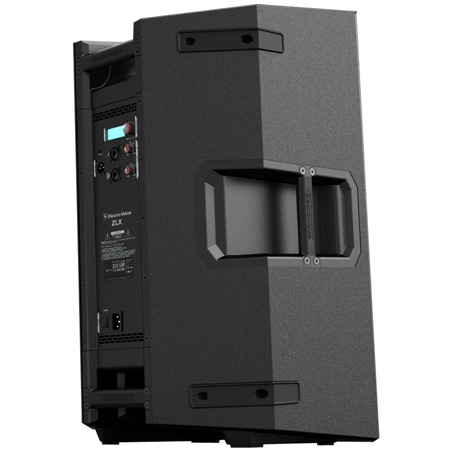

With ZLX, Electro-Voice set out with a singular goal: to deliver best-in-class performance across every detail. The Electro-Voice ZLX-15P is a powered PA enclosure with a 15" woofer and 1.5" titanium compression driver that gives you the confidence of the industry's most trusted components. The enclosure is engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer. The compact, lightweight ZLX-12P was designed to give you power and performance beyond the scope of other small-format loudspeakers, making it a standout choice for smaller-venue sound reinforcement or stage-monitoring.

ZLX combines decades of proven pro-audio engineering know-how with a bold new look and user-friendly features that give you an extraordinary amount of control over your sound

Electro-Voice ZLX-15P Specifications

  • Frequency Range 42 Hz - 20 kHz
  • Maximum SPL 127 dB
  • Power Rating 1000 W
  • Frequency Response 55 Hz - 18 kHz
  • Coverage (Nominal -6 dB) H 90
  • Coverage (Nominal -6 dB) V 60
  • LF Transducer EVS-15L, 380 mm (15 in) Woofer
  • HF Transducer DH-1K
  • Connector Type (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
  • Enclosure Material Polypropylene
  • Grill 18 Gauge Steel with Black Powder Coat
  • Height 685 mm (26.97")
  • Width 423 mm (16.65")
  • Depth 383 mm (15.08")
  • Weight Net 17.3 kg (38.14 lbs)
  • Shipping Weight 23 kg (50.71 lbs)

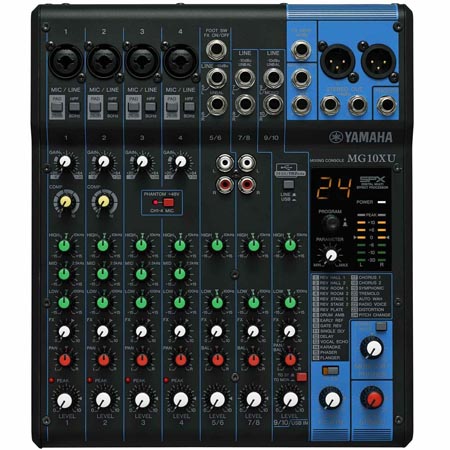

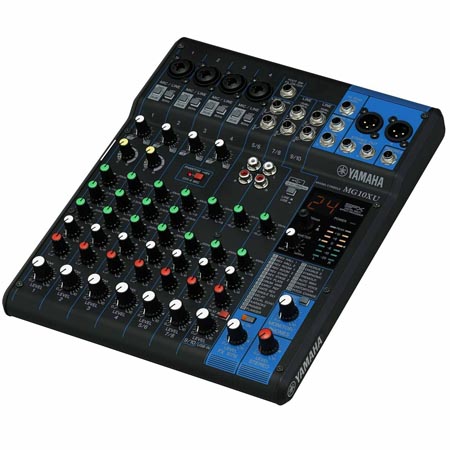

Yamaha MG10XU Specifications:

OutlineMG10XU
I/OPhantom power+48 V
Input ChannelsMono[MIC/LINE]4
Stereo[LINE]3
Output ChannelsSTEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND1
BusStereo: 1, AUX: 1
Input Channel FunctionPAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
COMP1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specificationsMG10
Total harmonic distortion0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk-83 dB
Power requirementsPA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption22.9 W
DimensionsW244 mm (9.6")
H71 mm (2.8")
D294 mm (11.6")
Net weight1.9 kg (4.19 lbs.)
AccessoriesIncluded Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
OthersOperating Temperature: 0 to +40C
MG10XU Analog Input Characteristics
Input terminalPAD
26 dB
GAIN Trim
Position
Actual Load
Impedance
For Use With
Nominal
Input levelConnector
Sensitivity *1NominalMax. before clip
MIC/LINE
1 4
OFF+64 dB3kO50-600O
Mics/Lines
-72 dBu
(0.195 mV)
-60 dBu
(0.775 mV)
-40 dBu
(7.75 mV)
Combo
jack *2
(Balanced)
+20 dB-28 dBu
(30.9 mV)
-16 dBu
(122.8 mV)
+4 dBu
(1.228V)
ON+38 dB-46 dBu
(3.884 mV)
-34 dBu
(15.46 mV)
-14 dBu
(154.6 mV)
-6 dB-2 dBu
(615.6 mV)
+10 dBu
(2.451 V)
+30 dBu
(24.51 V)
LINE
5/6, 7/8
10kO600O
Lines
-22 dBu
(61.56 mV)
-10 dBu
(245.1 mV)
+10 dBu
(2.451 V)
Phone jack *5 RCA Pin
(Unbalanced)
LINE 9/10Phone jack *5
(Unbalanced)
MG10XU Analog Output Characteristics
Output TerminalsActual source
impedance
For Use With
Nominal
Output levelConnector
NominalMax. before clip
STEREO OUT [L, R]75O600O Lines
+20 dB
+4 dBu
(1.228 V)
+24 dBu
(12.28 V)
XLR-3-32 *3
Phone jack *5
(Balanced)
MONITOR OUT [L, R]
AUX SEND
150O10kO Lines+4 dBu
(1.228 V)
+20 dBu
(7.750 V)
Phone jack *4
(Impedance Balanced)
PHONES110O40O Phones3mW + 3mW100mW + 100mWStereo phone jack

Ultimate Support JS-MC100 Specifications:

  • Stand Height: 37.5" - 65" (952mm 1651mm)
  • Base Diameter: 28" (711mm)
  • Threading: 5/8"

  • Weight: 4 lbs. (1.81 kg)

Velcro Cable Ties Specifications

  • Dimensions:8" Length x 3/4" Width 20cm Length x 2cm Width
