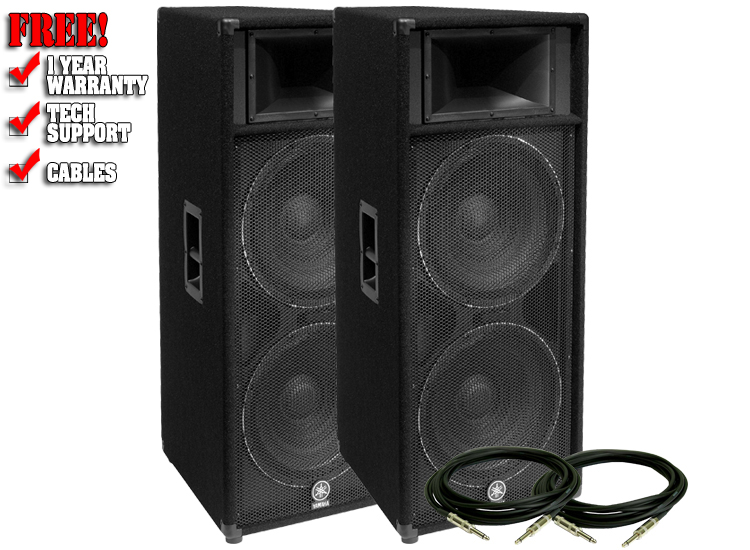

Yamaha S215V

Description

The Yamaha S215V is a 2-way loudspeaker designed for club P.A. use, with a 1000-watt program, 2000-watt peak power handling capacity, dual 15" cast-frame woofers with oversized magnets, and a 2" titanium dome compression driver loaded into a 90° x 40° constant-directivity horn.

The S215V enclosure is constructed of durable, carpet-covered, void-free particle board, and equipped with metal corner protectors, a steel metal grille, recessed steel carrying handles, and sturdy recessed pole sockets.

Features:

• 2-way P.A. loudspeaker with dual 15" woofers and CD horn-loaded titanium compression driver for club P.A. use
• 1000-watts program power handling, 2000-watt peak
• High-output, 132dB maximum SPL
• 2" compression driver with titanium diaphragm loaded into 90° x 40° constant-directivity horn
• Dual 15" woofers with cast aluminum frames, oxygen-free copper voice coils and oversize strontium ferrite magnets
• Built-in crossover network
• Sturdy void-free particle board enclosure with protective metal corners, recessed steel carrying handles, speaker pole receptacle for Mid/HF satellite mounting

Specifications:

• Frequency Response: 42 Hz - 16 kHz, -10dB
• Power Capacity: 1000 Watts program, 2000 Watts peak
• Maximum Sound Pressure Level (SPL): 132dB
• Nominal Sensitivity: 99dB SPL, 1W/1m
• Impedance: 4 Ohms
• Crossover: Yes
• Low Frequency Driver: 2 x 15" cast frame woofers
• High Frequency Driver: 2" dome compression driver with Titanium diaphragm
• Enclosure Material: Southern Yellow Pine particle board with black carpet covering, perforated steel speaker grille
• Input Connections: 2 x Neutrik Speakon, 2 x 1/4" Phone
• Dimensions: 20 x 46 x 24" (508 x 1168 x 609.6mm)
• Weight: 101 lb (45.8 kg)
