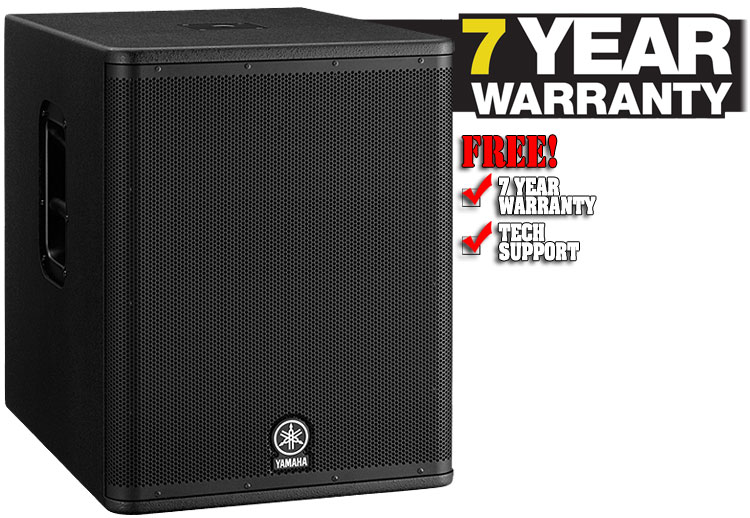

Yamaha DXS12

Features:

• Optimized Band-Pass Enclosure
• 12" Woofer
• 950W Class-D Amplifier
• D-XSUB Processing
• XLR In and Thru Connectors
• 35mm Pole Socket
• Integrated Handles

Description

The DXS12 12" 950W Active Subwoofer from Yamaha provides powerful bass reinforcement in a compact design, ideal for use alongside the DXR and DSR full-range loudspeakers. The subwoofer has a wooden enclosure with an optimized band-pass design that delivers high SPL levels with minimal distortion. The high-power 12" woofer is capable of reproducing frequencies as low as 47Hz.

The subwoofer is driven by a Class-D amplifier with a peak power rating of 950W for clear, powerful bass. D-XSUB processing is built into the subwoofer, allowing you to choose between Normal, Boost, or Xtended LF modes. The rear panel has XLR input and thru connectors for compatibility with a variety of speakers and sound systems. A standard 35mm pole socket allows you to mount a full-range speaker on top of the subwoofer, while integrated handles offer convenient transportation.

Specifications:

• Ideal for bass reinforcement alongside the DXR and DSR full-range loudspeakers
• The compact wooden enclosure has an optimized band-pass design that delivers high SPL levels with minimal distortion
• The high-power 12" woofer is capable of reproducing frequencies as low as 47Hz
• The Class-D amplifier has a peak power rating of 950W for clear, powerful bass
• D-XSUB processing is built into the subwoofer, allowing you to choose between Normal, Boost, or Xtended LF modes

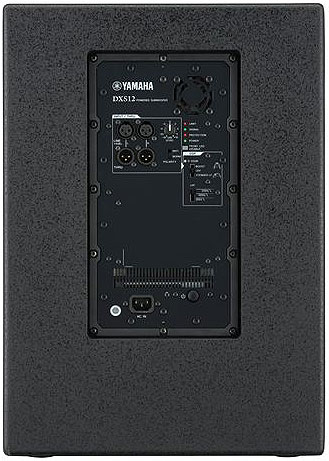

• The rear panel has XLR input and thru connectors for compatibility with a variety of speakers and sound systems
• A standard 35mm pole socket allows you to mount a full-range speaker on top of the subwoofer
• Integrated handles offer convenient transportation
• Type: Active, band-pass
• Frequency Range: 47-160 Hz (-10 dB)
• SPL: 131 dB max
• Amplifier: Class-D, 950 W dynamic, 600 W continuous
• Woofer: 12" (305 mm) cone woofer with 2.5" voice coil and ferrite magnet
• Controls: Level, polarity, LPF, D-XSUB, front LED disable, power
• Connectors: 2 x XLR inputs, 2 x XLR thru connectors (parallel with inputs), 1 x AC power input
• Input Impedance: 10k ohms
• Input Sensitivity: +1 dBu max, +11 dBu center
• Input Level: +24 dBu max
• Low-Pass Filter: 80/100/120 Hz, 24 dB/oct
• DSP: D-XSUB: Normal, Boost, Xtended LF, Off
• Cabinet: Wood with black painted finish and 2 metal side handles
• Mounting: 1 x Top panel 35 mm pole socket
• Power Requirements: 100-240 VAC, 50/60 Hz
• Power Consumption: 120 W (1/8 rating)
• Dimensions (WxHxD): 15.6 x 22.1 x 23.4"
• Weight: 72.8 lbs
