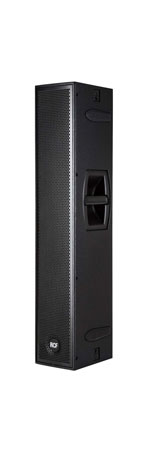

NX L24-A Mobile Pack

There are many situations where users wish they had a sound system that combines the benefits of line array technology - higher levels of direct rather than reflected sound, greater range and more uniform distribution - with the handling ease of two-way cabinets.

Maximum Efficiency

The NX L24-A is a true active and high power ready to use two-way array system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the space requirement is reduced to the minimum.

RCF NX L24-A Active Column Array Speaker System Features:

• 1400 Watt.
• 131 dB max SPL.
• 65 Hz 20 kHz frequency response.

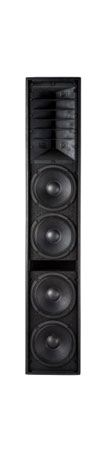

• 4 x 6" Woofers.

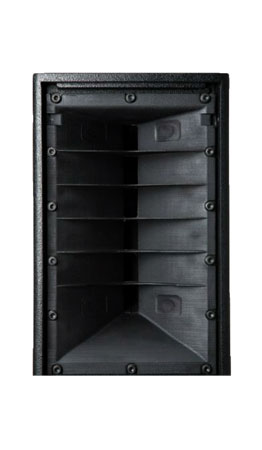

• 2.5" voice coil RCF Precision C. Driver on waveguide.
• 100° x 30° slightly tilted pattern control.
• DSP controlled Input section with single or dual eq. preset.

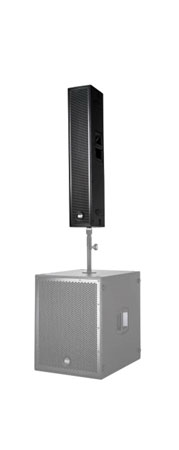

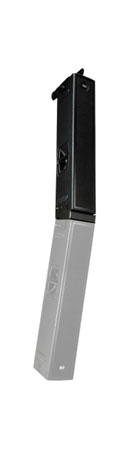

• Pole mountable, Stackable, Flyable.
• Baltic Birch Plywood enclosure with internal structural metal bracings.
• Applications:
• Portable PA.
• Live sound.
• Performance venues.
• Houses of worship.

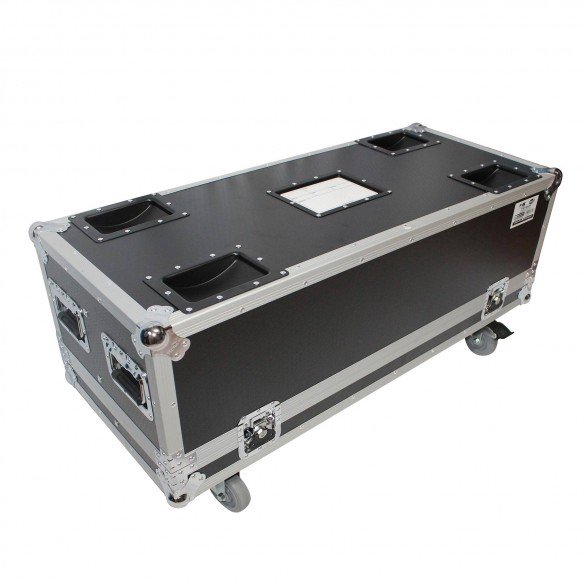

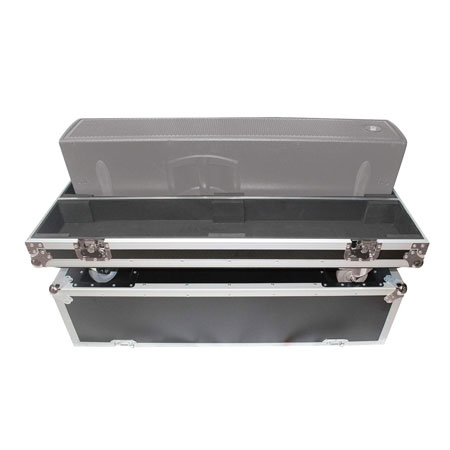

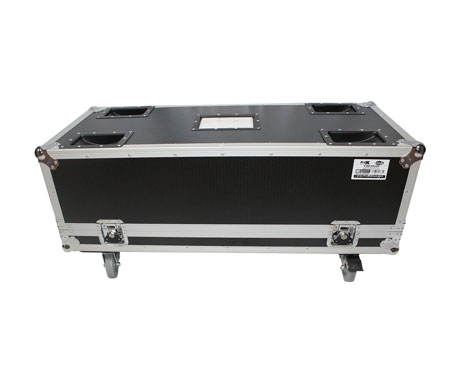

ProX X-RCF-NXL24A Column Array Flight Case with 4 inch Wheels - Fits (2) RCF NX L24-A Speakers

The ProX X-RCF-NXL24A is designed specifically to house and protect (2) of RCF NX L24-A Stage Monitor speakers.

This professional speaker case employs a 3/8" laminated plywood that has a hard shell with internal impact resistant padding to provide the best protection for your investment. No matter where you take your speakers you can have peace of mind, nothing will get damaged during transit or in storage.

This particular case rests on four high quality 4" casters designed for easy traveling, it also comes equipped caster dishes on top to facilitate stacking with other flight cases. The X-RCF-NXL24A is the perfect case for AV production companies, touring bands, entertainment groups, mobile DJ's or anyone who owns RCF NX L24-A Stage Monitor speakers. Protect your investment with ProX Cases.

This ProX case is manufactured with the Honey Comb laminated surface Design. Made with the super-sleek look of Honey Comb hexagon grids on all shell surfaces, which gives the cases an almost alien look! Also as opposed to regular laminated plywood cases from other manufacturers, the ProX Honey Comb design helps prevent minor to mild scratches. The Honey Comb Digital line design was inspired by the design of New York City Street Manhole covers which are made to handle rough and tough everyday punishment.

ProX X-RCF-NXL24A Column Array Flight Case Features:

• ATA Style Flight Ready Road Case.
• ATA Style 3/8" certified Plywood.
• Black Laminated Finish.
• Recessed Handles & Latches.
• Heavy Duty steel Ball Corners.
• Inside Lined w/ Durable Hard Rubber.
• 4" Tough Casters.

RCF NX L24-A Specifications

Acoustical Specifications

• Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
• Max SPL: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 30°
• Compression Driver: 1.4", 2.5" v.c.
• Woofer: 4 x 6", 1.5" v.c.

Input/Output Section

• Input connectors: Jack- XLR male
• Output connectors: XLR female
• Input sensitivity: -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies: 800 Hz
• Protections: thermal, rms
• Limiter: soft limiter
• Controls: Volume, EQ Shape, Mic/ Line

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: convection
• Connections: Powercon in-out

Cabinet

• Cabinet Material: baltic birch plywood

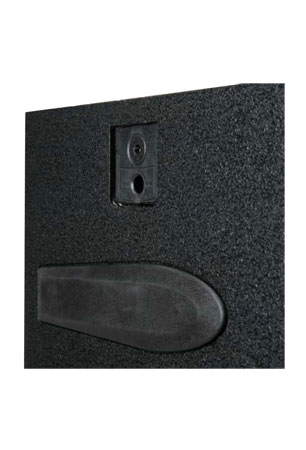

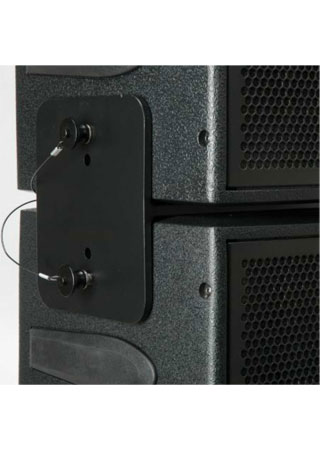

• Hardware: 4 x M8, 4 x quick lock
• Handles: 2 side
• Pole Mount/Cap: yes
• Colour: black

Physical Specifications

• Height: 1056/41.58 mm/inch
• Width: 201/7.90 mm/inch
• Depth: 274/10.79 mm/inch
• Net Weight: 26.4/58.8 kg/lbs

ProX X-RCF-NXL24A Specifications:

• To Fit: RCF NX L23-A
• Interior Dimensions: 11.00"Length (L) X 8.00"Width (W) X 41.50"Height (H)
• Dimensions: 44.50"Length (L) X 18.50"Width (W) X 21.00"Height (H)
• Weight: 73.00 lbs
• Shipping Dimensions: 46.00"L X 20.50"D X 17.00"H
• Weight: 82.00 lbs

What's in the Box

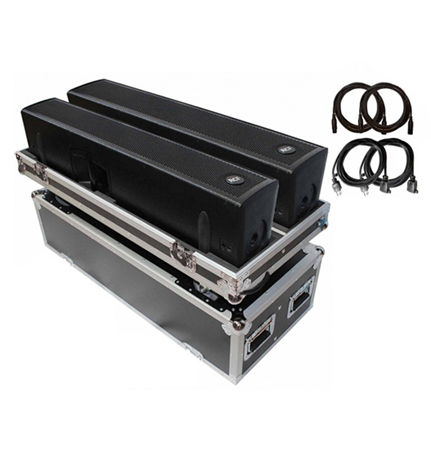

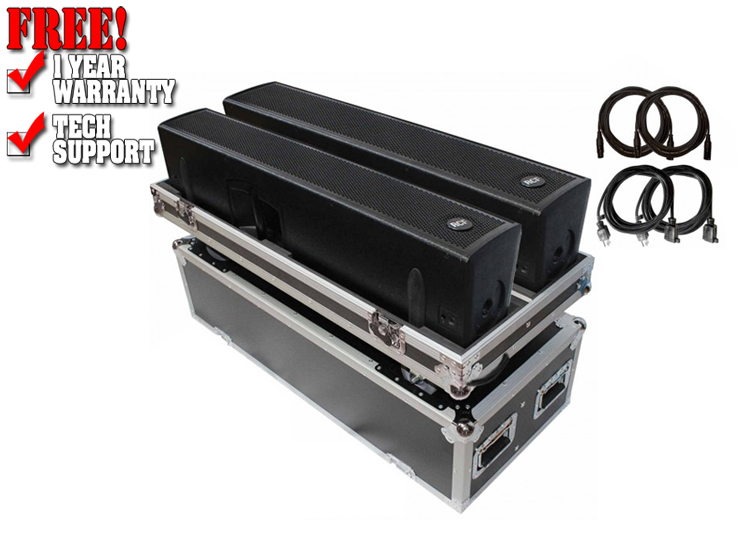

This Package Includes:

• (2) RCF NX L24-A Active 2-Way Column Array Speaker Systems
• (1) ProX X-RCF-NXL24A Column Array Flight Case with 4 inch Wheels - Fits (2) RCF NX L24-A Speakers
• (2) 20FT Sure-Fit XLR Connecting Cables
• (2) Black 10FT 16 Gauge AC Extension Cords

Each NX-L24A Box Includes:

• (1) RCF NX L24-A Active 2-WAY Column Array Speaker System
• (1) IEC Power cord
• (1) User manual

The X-RCF-NXL24A Box Includes:

• (1) ProX X-RCF-NXL24A Column Array Flight Case with 4 inch Wheels - Fits (2) RCF NX L24-A Speakers
