DAS Event 210A Eight Pack

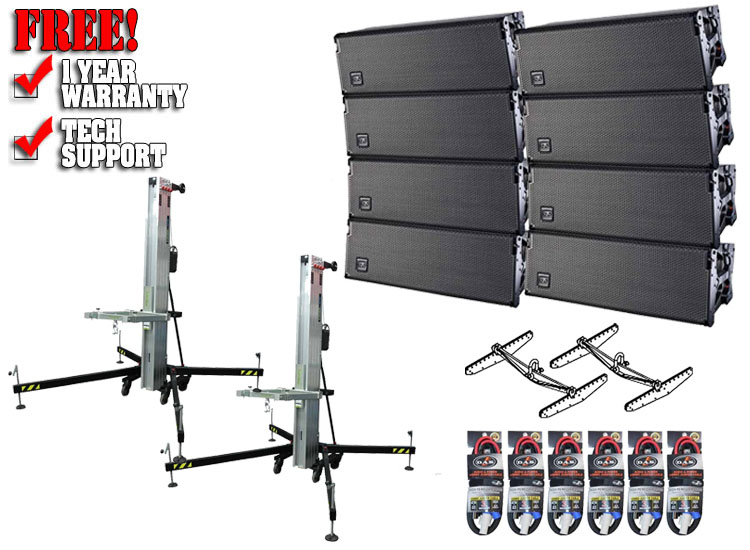

This Package Includes:

• (8) DAS Event 210A Dual 10" Multipurpose Powered Line Array Speakers
• (2) ProX XT-AT06 Stands for Fenix XT-AT06 Line Arrays Systems

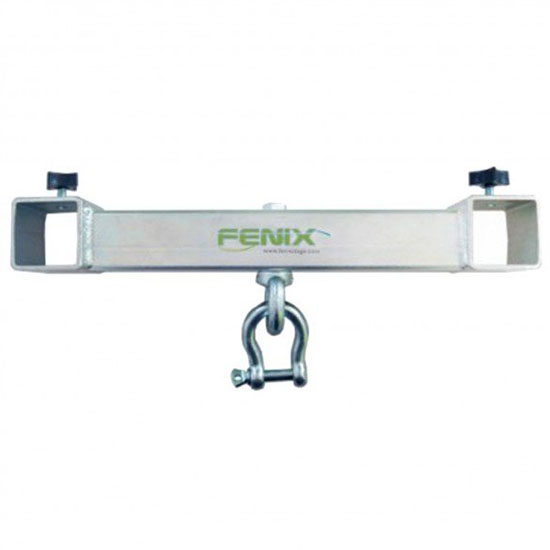

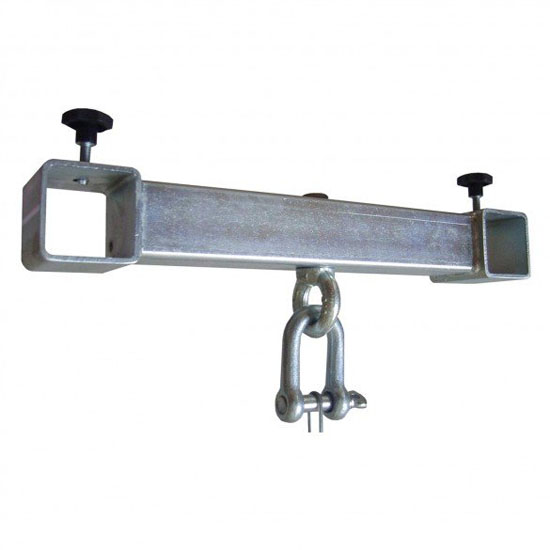

• (2) ProX XT-AC569 Stands for Fenix XT-AT06 Line Arrays Systems
• (2) DAS AX-Event 210A Event 210A Rigging Systems
• (6) DAS 3FT PowerCON & XLR Combo Jumper Cables 14 AWG Power 16 AWG Audio [DAS-CJC-3FT]

Each DAS Event 210A Box Includes:

• (1) DAS Event 210A Dual 10" Multipurpose Powered Line Array Speaker
• (1) Power Cord
• (1) User Manual

Each XT-AT06 Box Includes:

• (1) ProX XT-AT06 Stand for Fenix XT-AT06 Line Arrays Systems

Each AX-Event 210A Box Includes:

• (1) Pick-up Bar
• (1) Attachment Parts Kit
• (2) Safety Pins

Each DAS-CJC-3FT Box Includes:

• (1) DAS 3FT Combo Jumper Cable 14 AWG Power 16 AWG Audio

About This Product

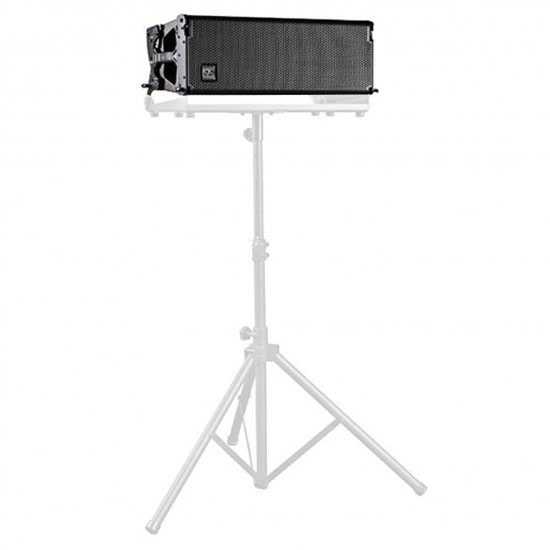

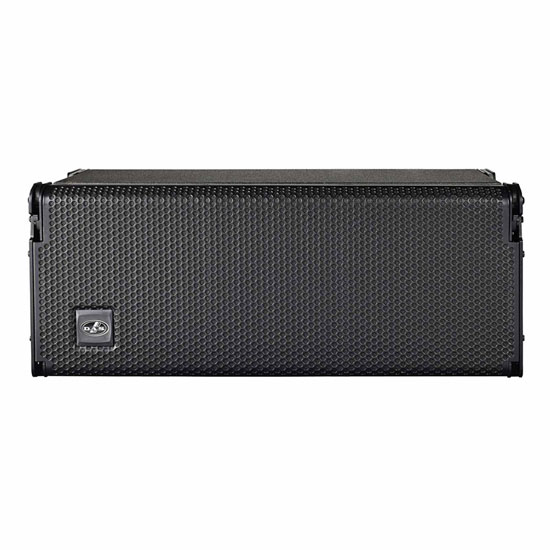

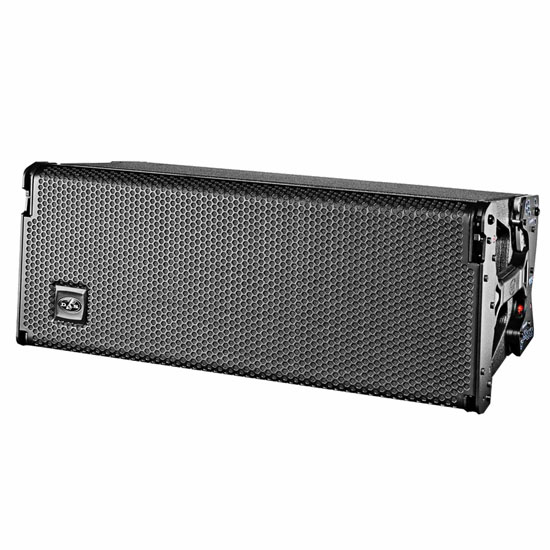

DAS Event-210A Dual 8" Multipurpose Powered Line Array Speaker

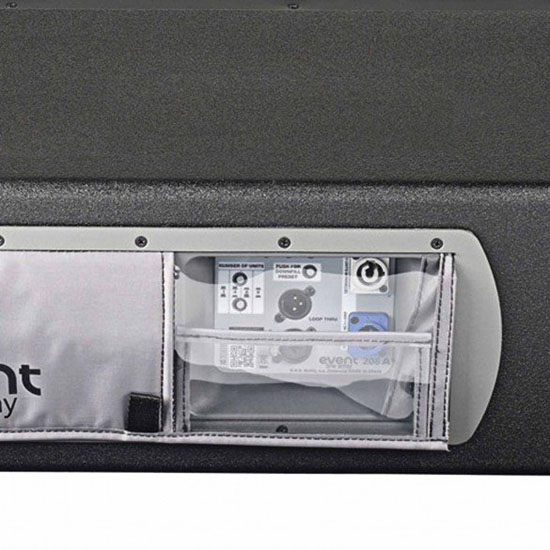

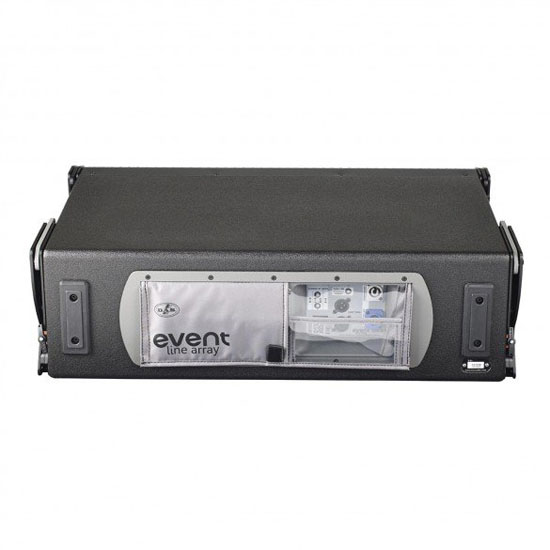

The Event 210A Line is a three-way powered line array in a double 10" "dual-band" configuration which provides a wider frequency range. The D.A.S. loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 210A line array is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp's rear panel includes quality Neutrik XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP interface which simplifies preset selection for the number of units and throw depth.

DAS Event 210A Features:

• Powered 3-way system.
• Light-weight Class D amplifier topology.
• High-end DSP chipsets.
• Easy-DSP Interface.
• Quality Neutrik connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust "quick-rig" professional rigging hardware.
• Proprietary injected aluminium HF waveguide (not plastic).
• D.A.S. M-75 compression driver and cone transducers.

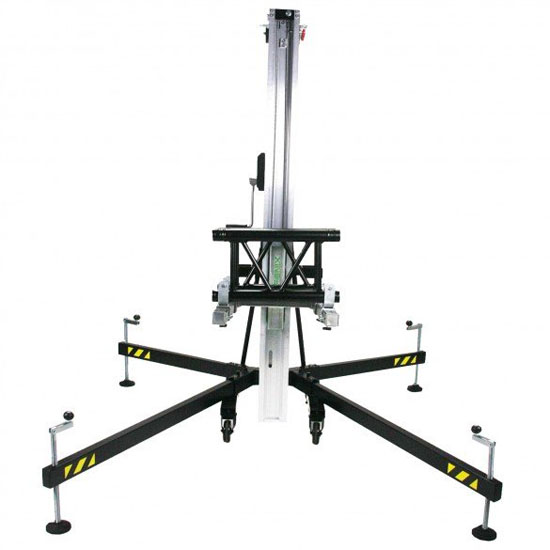

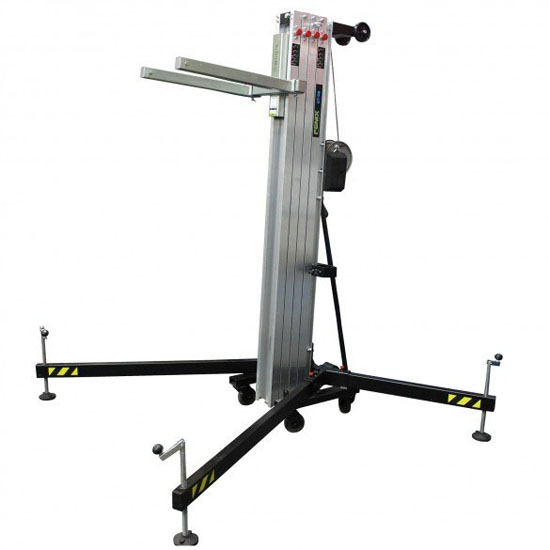

ProX XT-AT06 Stand for Fenix XT-AT06 Line Arrays Systems

Stand for small/medium line-arrays systems.

Compatible with AT Series frontal loading lifting towers.

Weight Capacity 400kg / 880 lbs.

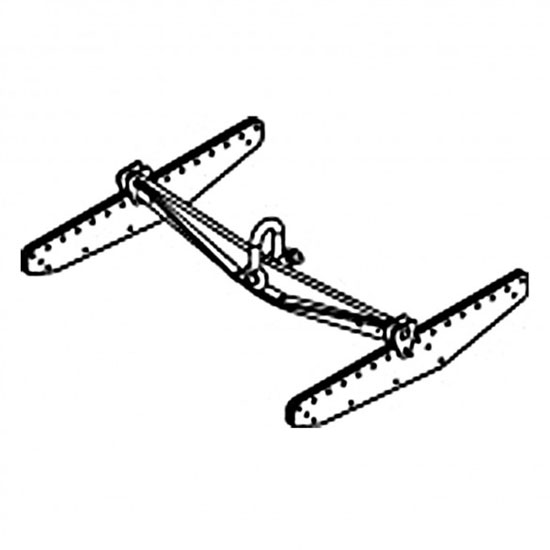

DAS AX-Event 210A Event 210A Rigging system

Rigging system for Event 210A Line Array Speakers.

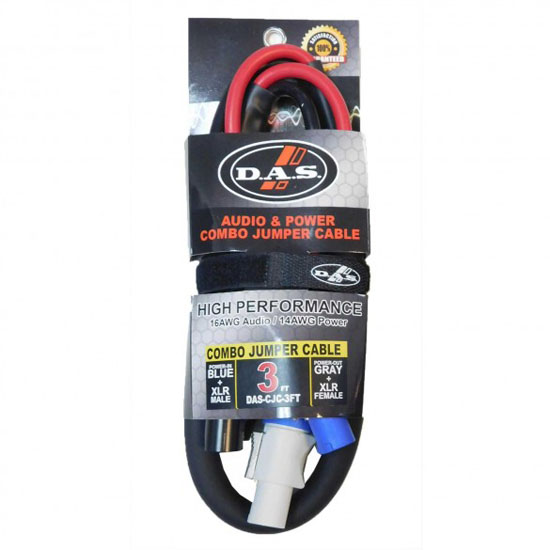

DAS 3FT PowerCON & XLR Combo Jumper Cable 14 AWG Power 16 AWG Audio [DAS-CJC-3FT]

3FT. Combo Jumper Cable : 14 AWG Power, 16 AWG Audio Power-in (blue) w/ XLR Male on one side and Power-out (gray) w/ XLR Female on the other side. Both cables are housed in a single sleeve with insulation.

DAS Event 210A Specifications

• Nominal HF Amplifier Power : 360 Wpeak
• Nominal MF Amplifier Power : 360 Wpeak
• Nominal LF Amplifier Power : 360 Wpeak
• Frequency Range (-10 dB) : 70 Hz -20 kHz
• Rated Peak SPL at 1 m : 134 dB
• Horizontal Coverage (-6 dB) : 90° Nominal
• Vertical Coverage : Splay Dependent
• Enclosure Material :Birch Plywood
• Color/Finish : Black ISO-flex Paint
• Connectors
• INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements : 115 V, 3.0A, 50 Hz/60 Hz, 230 V, 1.2A, 50 Hz/60 Hz
• Dimensions (H x W x D) 27 x 73 x 36.6 cm, 10.6 x 26.4 x 14.4 in
• Weight 34 kg (74.8 lb)
