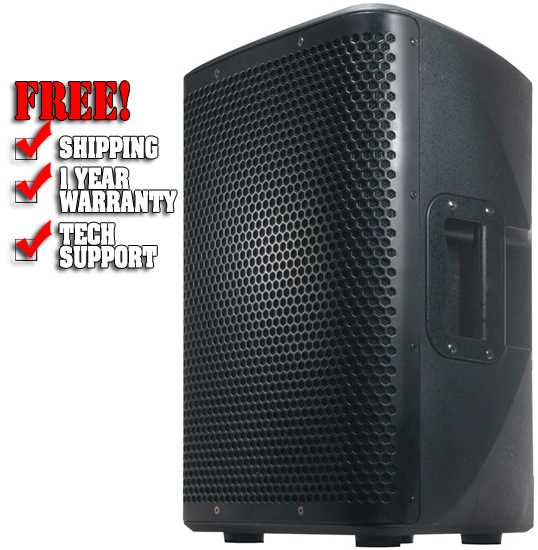

The powerful CPX Series of active speakers from American Audio was designed to take on the rigors of the road and sound great every time you plug them in. The CPX 10A is a 250W, 2-Way active speaker with a 10-inch woofer and a high efficiency Class D amplifier. It features a time aligned crossover, 5x M8 rigging points and is stand mountable. The front grill is made from an attractive heavy duty steel.
The CPX Series is perfect for mobile entertainers, rental houses and production companies. It’s also great for installations where great affordable sound is required. Each model is designed to deliver great sound whether you are micing your band, using them as a side-fill or floor monitor, DJing your weekly gig, or installing them at your house of worship, club, lounge, or bar. The CPX series is great solution for updated or adding to existing installations.
2-way Speaker with High Efficiency Class D Amplifier
250W Built-in Bi-amplifier
Time Aligned Electronic Crossover
5 M8 Rigging points
Heavy Duty steel grill
Power and Clip LED Indicators
XLR and RCA inputs
XLR and TRS throughputs
Clipping and Thermal Protection
Low Pass: 2nd order filter 2.7KHz
Low Cut: 2nd order filter 30Hz
Bass: 100Hz +/- 12dB
Treble: 10KHz +/- 12dB
S/N Ratio: Line 100dB, Mic 80dB
Frequency Response: 30 Hz – 18 kHz
Nominal Coverage: 90º x 60º
Low Frequency: 10" (255mm), 2" (50mm) Voice Coil
High Frequency: 25mm Voice Coil, 1"(25mm) Throat
Input Sensitivity: 0.5V
Output Sensitivity: 93dB(1m/1w)
Max. SPL: 114dB
Balanced Input Impedance: Line 20K?, Mic 3.6K?
Unbalanced Input Impedance: Line 10K?, Mic 1.8KO
Multi Voltage Switch: AC 115V/60Hz or 230V/50Hz
Dimensions (LxWxH): 13.75” x 12.75” x 20.5”/ 347 x 320 x 516mm
Weight: 40 lbs. / 17.95 kgs.
CPX10A Value Pack BUY A PAIR OF SPEAKERS AND GET STANDS & CABLES FREE!
