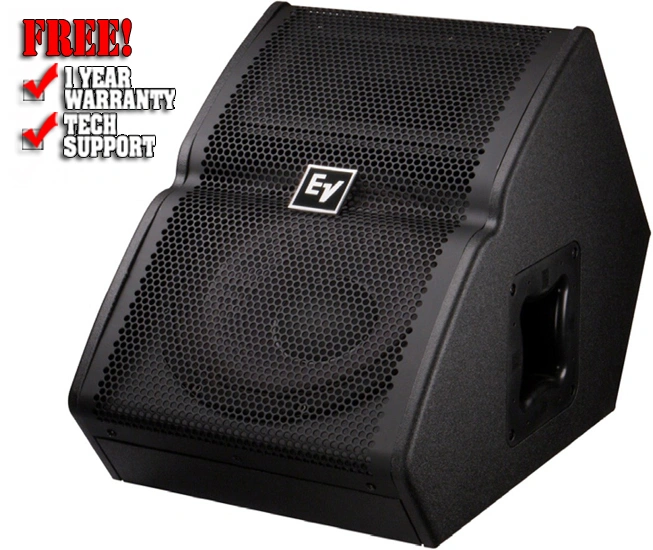

Electro Voice TX1122FM Monitor

Description

The ElectroVoice TX1122 is truly designed to be the compact over achiever of the Tour X family. Employing the same space saving 90 x 50 degree horn as the FM models, and the incredibly low distortion SMX2120 12-inch woofer, the TX1122 will astound you with performance that blows away competitive 15-inch two-ways. The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, integrated pole mount and (6) 3/8-inch threaded suspension inserts make the TX1122 easy to transport and employ in a variety of applications.

Tour X
ElectroVoice engineering ensures the World's biggest tours and events sound their best. The experience we've gained from 80 years spent shaping and influencing the professional sound reinforcement business makes its way into every loudspeaker we manufacture, including the new Tour X.

Tour X embodies the same ElectroVoice engineering excellence and aesthetic design found in its world class tour systems. Its form is seamlessly integrated into practical, functional elements that make a bold statement about its multi-application purpose and breakthrough performance.

A host of innovative features and patent pending designs make Tour X the most exciting loudspeaker series available today:
- Breakthrough SMX woofers achieve incredibly low levels of woofer distortion without sacrificing sensitivity
- Aesthetically unique, patent pending Backbone grille design for superior strength and damage resistance
- Steep slope analog crossovers with elliptical filters that provide up to 36dB per octave slopes
- All new proprietary EV designed ergonomic handles and angled input panels

• Designed for Club Sound, Concert Sound, House of Worship, Pro Music, and other applications.
• 55° compact vertical floor monitor with Signal Synchronized Transducers™
• 99 dB sensitivity, 132 dB maximum SPL
• DH3 1.25” (32 mm) diaphragm, 1” (25 mm)-exit pure titanium compression driver
• SMX2121 12” (305 mm) LF transducer with fully symmetric drive
• Integrated crossover with steep 24 dB / octave slopes and HF protection
• 90° x 50° coverage pattern
• 500 W continuous, 2000 W peak power handling
• Color Black
• Input Connections Parallel Neutrik® NL4
• Speaker Type Fullrange
• Frequency Response (-3 dB) 70 - 20000 Hz
• Frequency Response (-10 dB) 55 - 20000 Hz
• Internal Crossover Yes
• Recommended High-Pass Frequency 60 Hz
• Sensitivity 1 W/1 m 99 dB
• Max. SPL/1m (calc) 132 dB
• Coverage (Nominal -6 dB) H° 90 °
• Coverage (Nominal -6 dB) V° 50 °
• Rotatable Horn No
• System Power Handling (Continuous/Program/Peak) 500 Watts
• LF Transducer SMX2121
• HF Transducer DH3
• Crossover Frequency 1600 Hz
• Nominal Impedance (Passive) 8 Ω

• Minimum Impedance 6.4 Ω
• Enclosure Material Plywood and MDF with EVCOAT
• Flying No
• Height 440 mm (17.32")
• Width 364 mm (14.33")
• Depth 573 mm (22.56")
• Weight Net 19.8 kg (43.65 lbs)
