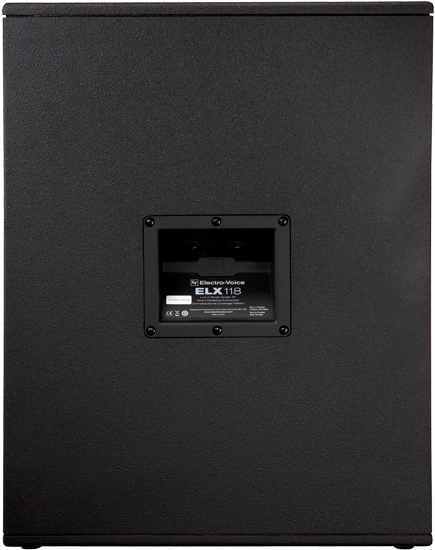

Electro Voice ELX118

Description

Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.

• Designed for House of Worship, Pro Music, and other applications.
• 18” woofer provides extended low-frequency output
• 32 Hz – 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL
• 400 W continuous and 1600 W peak power handling
• Rugged wood cabinet—supports pole-mounted or stacked Live Loudspeakers
• Axial Sensitivity 96 dB
• Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB) 50 Hz - 100 Hz Hz
• Frequency Response (-10 dB) 35 Hz - 200 Hz Hz
• Recommended High-Pass Frequency 30 Hz
• Max. SPL/1m (calc) 134 dB
• Coverage: (Nominal -6 dB) H° Omnidirectional °
• Coverage: (Nominal -6 dB) V° Omnidirectional °
• LF Transducer (1) EVS-18K, 457mm (18”) Woofer
• HF Transducer N/A
• Crossover Frequency N/A Hz
• Nominal Impedance (Passive) 8 Ω
• Minimum Impedance 6.7 Ω
• Connector Type Dual NL4
• Grill 18GA Steel with Black Powdercoat
• Height: 26.02"
• Width: 19.96"
• Depth: 22.6"
• Weight: 70.11 lbs
