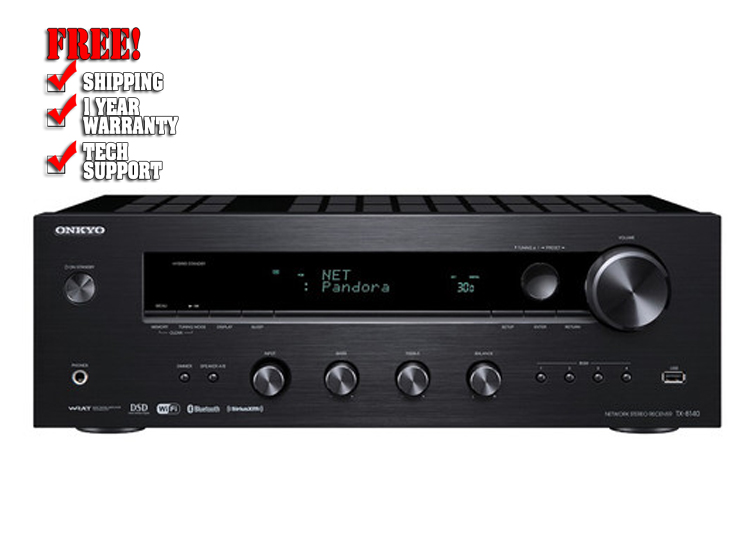

Onkyo TX-8140 2.1-Channel Network Stereo Receiver

Product Highlights

• Up to 80W per Channel at 8 Ohms
• Built-In Wi-Fi and Bluetooth
• DLNA & Internet Music Streaming
• Built-In AM/FM with Quick Access Presets
• 384 kHz/32-Bit Asahi Kasei AK4452 DAC
• Digital Coaxial, Optical, RCA, & USB-In
• Dedicated Phono Input for Turntables
• Wide Range Amplification Technology
• A/B Speaker Selection
• Supports High-Resolution Audio Files

Onkyo TX-8140 overview

Enjoy wireless connectivity and Internet radio access with the Onkyo TX-8140 2.1-Channel Network Stereo Receiver. It has Wi-Fi and Bluetooth built-in so you can stream wirelessly from your smart devices or directly access services such as Pandora, Spotify, SiriusXM, and more. Two Wi-Fi antennas are on the back of the receiver for optimized signal range. This receiver features Onkyo's WRAT amplifier technology and outputs up to 80W per channel at 8 Ohms.

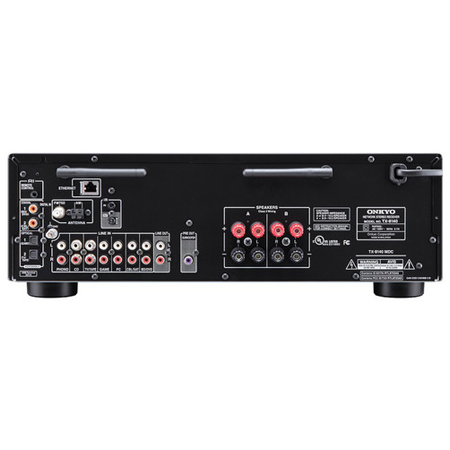

The TX-8140 has two digital coaxial, two optical, six stereo RCA, and one phono RCA input for connecting a variety of sources. It is also equipped with a USB port for interfacing with a USB storage device for direct playback. You can connect up to two pairs of speakers and switch between having either one or both of them on.

Realistic & Clean Audio

A high current enables enhanced control of the speakers for accurate and dynamic sound. It's the cornerstone of Onkyo's Wide Range Amplification Technology (WRAT) system, and it is designed to create a well-focused and realistic audio image. The TX-8140 delivers stereo power at 80W/Ch (8 Ohms, 20 Hz to 20 kHz, 0.1%, 2 Channels Driven, FTC) or 110W/Ch (6 Ohms, 1 kHz, 0.1%, 1 Channel Driven, FTC).

Bluetooth / Wi-Fi with Pandora & Spotify

The TX-8140 has Wi-Fi and Bluetooth technologies built-in. The free Onkyo Remote app puts a range of streaming options at your fingertips, from universal Hi-Res audio via network-attached devices, to Internet streaming services, to music on your smartphone and tablet. Or pair up and enjoy whatever's playing on your Bluetooth-compatible device for cinematic sound. It also comes loaded with Spotify, Pandora, SiriusXM Internet Radio, Slacker, and TuneIn. You can select a station and search for music available on these services via the Onkyo Remote app on your phone.

Low-Distortion Sound from Any Format

An Asahi Kasei AK4452 digital-to-analog converter unlocks the potential of any audio format with its low-distortion, sound-enhancing filtering technologies.

Quick Access Presets

Get instant access to four of your favorite FM/AM or Internet radio stations at the touch of a button. Four preset buttons on the faceplate go straight to the stations. You can even wake up the receiver from standby mode by pressing one of these buttons for instant radio.

Hi-Res Clarity & Detail

The TX-8140 is engineered for universal Hi-Res compatibility and ease of use. Use the remote app to select your 192/24 or 5.6 MHz DSD files on your computer or NAS and bask in the clarity and detail of high-resolution music.

Rediscover the Magic of Vinyl

Connect your turntable to the phono input and the TX-8140 will faithfully reproduce your vinyl's authentic stereo sound.

Amplifier, Connection, and Tuner Features

• Non-phase-shift amp design for realistic sound imaging
• Discrete amplifier design
• Two 8200 µF high–current capacitors
• Plays music from mass-storage-class USB memory devices
• Supports Onkyo Remote app for control of receiver via iOS or Android devices
• Plays compressed, lossless, and high-res audio via local network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, and LPCM)
• Certified with Windows 8 and DLNA version 1.5
• Direct Mode
• Preset station naming (up to 10 characters)

Additional Features

• Anti-vibration oval chassis
• Banana-plug-compatible speaker posts
• Front USB port supports WAV 96 kHz, DSD 2.8 MHz, and MP3 playback
• Auto power-on via optical connector when signal is detected
• Independent bass, treble, and balance controls
• Network standby capability
• Three-mode display dimmer (normal/dim/dimmer)
• Sleep timer
• Battery-free memory backup
• Compatible with RI (Remote Interactive) dock for iPod/iPhone
• Includes full-function IR remote control

Onkyo TX-8140 specs

• Channels : 2.1
• Power Output per Channel 80 W per channel (8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channels driven, FTC)
  110 W per channel (6 Ohms, 1 kHz, 0.1% THD, 1-channel driven, FTC)
• Dynamic Power per Channel : 110 W (8 Ohms, front)
  170 W (4 Ohms, front)
  190 W (3 Ohms, front)
• THD & Noise : 0.08% (20 Hz to 20 kHz, half power)
• Input Sensitivity and Impedance : 200 mV/47 kOhms (Line)
  3.5 mV/47 kOhms (Phono MM)
• Rated RCA Output Level : Rated: 1 V/680 Ohms (subwoofer pre-out)
• Phono Overload 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response : 10 Hz to 100 kHz / +1 dB, -3 dB (Direct Mode)
• Signal-to-Noise Ratio : 106 dB (line, IHF-A) 80 dB (phono, IHF-A)
• DAC : Asahi Kasei AK4452
• Speaker Impedance : 4 Ohms-16 Ohms
• Headphone Output Impedance : 390 Ohms
• Headphone Output : Rated: 200 mW (32 Ohms, 1 kHz, 10%)

Tuner Section

• Tuning Frequency Range : FM: 87.5 to 107.9 MHz , AM: 530 to 1710 kHz
• FM/AM Preset Memory : 40 Stations plus 4 faceplate BGM presets

Connectivity

• Wi-Fi : Yes
• Bluetooth : Yes
• Apple AirPlay Certified : Yes
• Inputs : 2 x Digital coaxial
  2 x Digital optical
  6 x Stereo RCA
  1 x Stereo RCA phono
  1 x USB (front)
• Outputs : 1 x Stereo RCA line out
  1 x Subwoofer pre-out
  1 x Headphone (front)
• Other Interfaces : 1 x Ethernet
  1 x RI remote
  1 x IR in
  1 x IR out
  1 x AM antenna
  1 x FM antenna
• Speaker Connectors : 4 x Binding post pairs
• A/B Speaker Selection : Yes

General

• Power Requirements : 120 VAC, 60 Hz
• Power Consumption : Typical: 2.7 A
  Standby: 0.2 W
  No Sound: 50 W
  Network Standby: 2.9 W
• Dimensions (W x H x D) : 17.1 x 5.9 x 12.9" (435 x 149 x 328 mm)
• Weight : 18.3 lb (8.3 kg)

Packaging Info

• Package Weight : 22.4 lb
• Box Dimensions (LxWxH) : 22.0 x 16.0 x 10.0"
