Pioneer MIXAR Pack

The integrated 24-bit/96kHz audio soundcard also includes an ASIO driver for Windows and is class-compliant on MAC, so it can be used with an audio program. In addition, all top panel controls send MIDI so they can be mapped to any MIDI capable software.

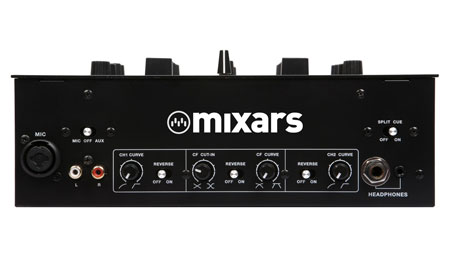

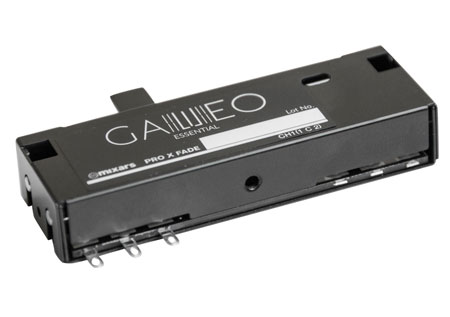

The new Mixars Galileo Essential crossfader was designed and built for scratching. It delivers super sharp performance, and includes reverse, curve adjustment, as well as cut-in adjustment on the front panel. The fader stem is 8mm thick to prevent breaking off from extensive scratching, and the fader cap is sloped for a better grip. The Galileo Essential also offers amazing strength and durability by using cutting edge conductive plastic technology, which will not wear over time.

Curve adjustment and reverse for the input faders are also located on the front panel. Each channel also features trim control, a full 3-band EQ (kill/+12db), plus an analog low/high-pass filter.

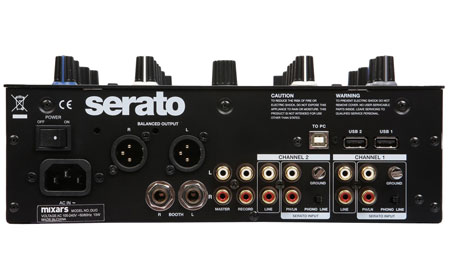

The output section includes an XLR master output, TRS balanced booth output, and RCA Rec out. DUO features a built-in, universal power supply. Each input channel includes a line input and a switchable phono/line input with ground post. A built-in USB hub provides 2 additional connections for other USB devices such as MIDI controllers or hard drives. A combo mic input and RCA Aux in are located on the front panel for easy access.

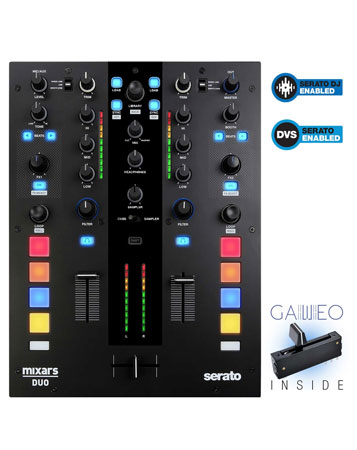

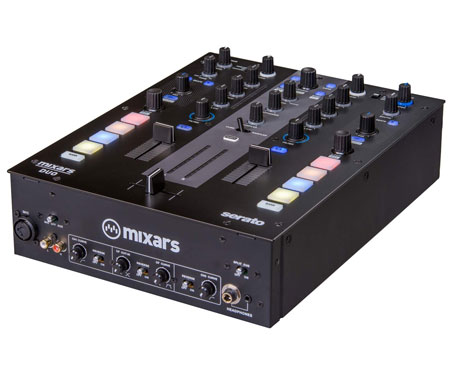

DUO MKII Features:

• Official Serato Mixer.
• Includes Serato DJ + DVS Enabled.
• Integrated 24-bit/96kHz high quality audio interface.
• All controls send MIDI for mapping in any MIDI software.
• Mixars Galileo crossfader for precise cuts.
• Crossfader reverse, curve, and cut-in adjustments.
• Channel fader reverse and curve adjustment.
• 8 RGB rubber performance pads for control of Cues and Samples.
• Dedicated Sampler volume control.
• Looping control.
• Control for Serato DJ FX.
• Built in 2-port USB HUB.
• Analog hi/low filter on each channel.
• Balanced XLR master output.
• Balanced TRS booth output.
• Combo MIC and AUX inputs on front panel.

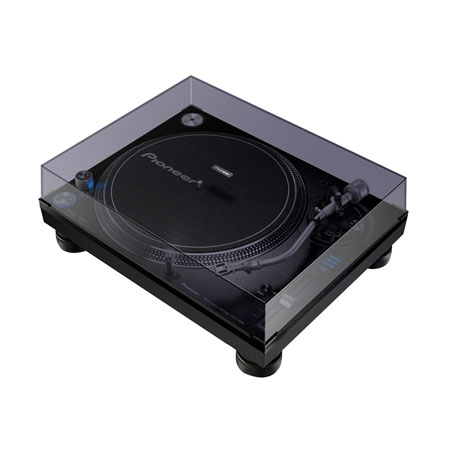

Pioneer PLX-1000 Professional Turntable

• User-friendly control layout.
• High-torque direct drive system.
• Designed for optimal sound quality.
• Tempo control with variable width levels.
• Detachable power and audio cables.

Overview

The DJ quality PLX-1000 direct drive analog turntable is designed for DJs who enjoy the look, feel, and performance of vinyl for music playback. The model offers a highly familiar, user-friendly control layout, high-torque direct drive mechanism, and exceptional audio playback quality. Combine the PLX-1000 with a Pioneer professional series DJM mixer for an ideal system for true vinyl enthusiasts.

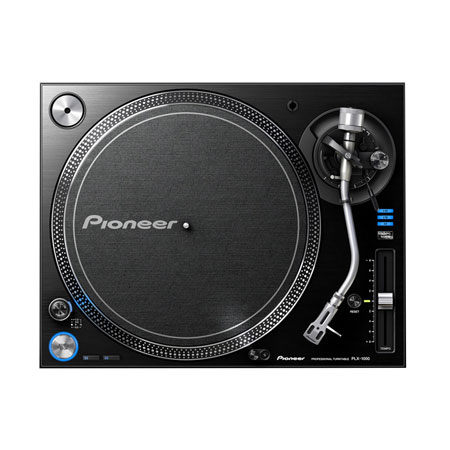

User-friendly Control Layout

The PLX-1000 provides a user friendly layout familiar to top DJs of the past and present, providing quick tempo control capability on the right side of the player, start/stop button on the left side, and a high-torque platter with a lighted speed guide.

High-Torque Direct Drive System

The direct drive mechanism of the PLX-1000 provides high-torque resulting in stable rotation and exceptional control. The turntable can achieve a starting torque of at least 4.5kg/cm and can reach its fixed rotation speed within 0.3 seconds (at 33 1/3 rpm).

Sound Quality Design

To create an extremely stable player and prevent vibration, Pioneer utilized a heavy-mass zinc die-cast chassis for the top section of the player, reinforced with a bottom section made of 8-mm thick resin. The base of the unit was further enforced with 9-mm thick vibration-damping material that results in extremely stable playback. The tone arm also received great attention in build quality and design to maximize performance, using rubber insulation to minimize howling effects during audio playback. The RCA jacks feature gold-plated machine-cut parts for low impedance for excellent sound quality output.

Tempo Control

The player provides a range of tempo adjustments from ±8% and ±16% to ±50%, giving users a range of pitch speeds. A "RESET" button for tempo sits next to the tempo slider for instant ±0% fixed rotation speed.

Detachable Power and Audio Cables

The PLX-1000 is built with a detachable power and audio cable connection for increased convenience, especially at times when the unit is being moved around. Users are also able to interchange cables to further customize the sound quality.

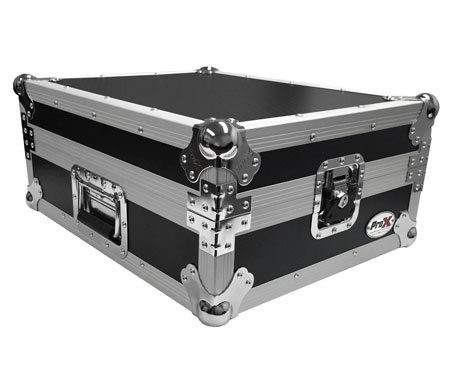

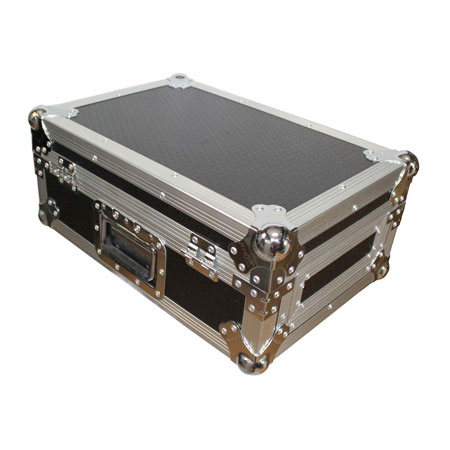

ProX Large Format 10" DJ Mixer Case [XS-M10]

The XS-M10 is the perfect companion for the state-of-the-art Mobile DJ. Built with top grade heavy-duty materials, the XS-M10 gives you maximum durability, dependability and security.

This large ProX 10" Mixer Case sleek looking format mix case is constructed with our GigReady Signature Series laminated 3/8" re-enforced plywood for complete protection of your investment. Standard on all our cases are steel, heavy duty ball corners to withstand the rigorous travel that a pro DJ demands. Black and silver construction and a modern stage wood design will turn heads and keep with the decor of any venue.

The XS-M10 has all the features you are looking for in a high-grade DJ Case. You will definitely be satisfied with this top of the line product from the signature series line of products from ProX Cases!

XS-M10 Features:

• ATA-300 style gig ready flight road case.
• High-density foam interior support & casing.
• Spring action recessed handles.
• Recessed spring action Handles per Side.
• Heavy and powerful steel ball corners.
• Dual anchor rivets.
• Signature series plywood.
• Industrial recessed butterfly twist lock latches that can be padlocked.
• Industrial grade rubber feet.
• Cable access hole with removable emblem cover.
• ProX limited lifetime warranty.
• All Foam padding made from 85% recycled materials.

ProX Turntable Case [T-TT]

The T-TT Turntable Case is a must-have item to efficiently protect and store your valuable DJ turntables. While perfectly optimized for the classic Technics SL1200, this case will also fit other popular turntables just as easily.

* ProX Goes Green: The durable hard rubber foams used in our cases contain 70% recycled content. Of that 70%, 80% of it comes from recycled plastic bottles and the remaining 20% from recycled post-industrial material. At ProX we strive to make the world a better place!

T-TT Features:

• Grooved Aluminum Extrusion.
• Plastic Laminate.
• Recessed Spring-Loaded Handle.
• Recessed Butterfly Twist Latches.
• Padlocks Included.
• Stacking Ball Corners.
• 3/8" Plywood Construction.

Mixars DUO MKII Specifications

Input Level and Impedance

• 1 kHz Input; Mic/Aux, Trim, Master at maximum
• Line: 10 kOhms / -14 dBV (200 mV)
• Phono: 47 kOhms / -50 dBV (3.16 mV)
• Aux: 10 kOhms / -14 dBV (200 mV)
• Mic: 5 kOhms / -54 dBV (1.99 mV) (Unbalanced)
• USB: (N/A) / -3.4 dBV (96 K-782 TK. 16/1 kHz -20 dB)

Output Level and Impedance

• 1 kHz Input; Mic/Aux, Trim, Master at maximum
• All: Nominal: ±1 dB; Limited: ±2 dB
• Master: 1 kOhm / 0 dBV (1 V)
• Balanced: 600 Ohms / 0 dBV (1 V)
• Booth: 600 Ohms / 0 dBV (1 V)
• Phones: 33 Ohms / -3 dBV (708 mV)
• Record:1 kOhm / -9 dBV (400 mV)

Frequency Response

• Reference Input Level, Mic/Aux, Trim, Master at maximum
• Line: 20 Hz to 20 kHz (Nominal: +1/-1.5 dB, Limited: +2/-3 dB)
• Aux: 20 Hz to 20 kHz (Nominal: +1/-1.5 dB, Limited: +2/-3 dB)
• Phono: 20 Hz to 20 kHz (Nominal: +1/-2 dB, Limited: +2/-3 dB RIAA)
• Mic: 20 Hz to 20 kHz (Nominal: +1/-2 dB, Limited: +2/-3 dB)

Maximum Input

• Mic/Aux, Trim, Master at 9 o'clock. 1 kHz input level adjusted to output level <1% T.H.D with an A-weighted 20 kHz LPF
• Line: Nominal: +15 dBV, Limited: +14 dBV
• Aux: Nominal: +15 dBV, Limited: +14 dBV
• Phono: Nominal: -21 dBV, Limited: -22 dBV
• Mic: Nominal: -25 dBV, Limited: -26 dBV

Maximum Output

• Mic/Aux, Trim, Master at Maximum. 1 kHz input level adjusted to output level <1% T.H.D with an A-weighted 20 kHz LPF
• Master Unbalanced: Nominal: +17 dBV, Limited: +16 dBV
• Master Balanced: Nominal: +17 dBV, Limited: +16 dBV
• Booth Output: Nominal: +17 dBV, Limited: +16 dBV
• Phones: Nominal: +5 dBV, Limited: +4 dBV

S/N Ratio

• 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal)
• Line (0 dB Input): Nominal: 86 dB, Limited: 83 dB
• Phono (-36 dB Input): Nominal: 86 dB, Limited: 83 dB
• Aux (0 dB Input): Nominal: 86 dB, Limited: 83 dB
• Mic (-40 dB Input): Nominal: 79 dB, Limited: 75 dB

THD + N

• 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF
• Line (0 dB Input): Nominal: 0.01%, Limited: 0.02%
• Aux (0 dB Input): Nominal: 0.01%, Limited: 0.02%
• Phono (-36 dB Input): Nominal: 0.02%, Limited: 0.05%
• Mic (-40 dB Input): Nominal: 0.03%, Limited: 0.06%

Crosstalk

• 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal)
• Line (Each Channel Input at 0 dB): Nominal: 85 dB, Limited: 82 dB
• Phono (Each Channel Input at -36 dB): Nominal: 85 dB, Limited: 82 dB

Channel Separation (R/L)

• 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal)
• Line (Between L and R Channels at 0 dB Input): Nominal: 85 dB, Limited: 82 dB
• Phono (Between L and R Channels at -36 dB Input): Nominal: 85 dB, Limited: 82 dB

EQ Section

• Reference Input Level, Mic/Aux, Trim Master at maximum with a 20 kHz LPF
• Low Band Reference Frequency: 70 Hz
• Middle Band Reference Frequency: 1 kHz
• High Band Reference Frequency: 13 kHz
• Maximum Level: +12 dB; Nominal: ±1 dB, Limited: ±1.5 dB (applies to all bands)
• Minimum Level: -25 dB; Nominal: ±1 dB, Limited: ±1.5 dB (applies to all bands)

Audio Card Support

• USB 2.0
• 24-bit / 96 kHz

Power

• Power Source: 100-240 VAC, 50/60 Hz
• Power Consumption: 13 W

Pioner PLX-1000 Specifications

MAIN SPECIFICATIONS

• Power Requirements:AC 110-120V/220-240V, 50 Hz/60Hz
• Power Consumption:9W
• Output:RCA x 1
• Main Unit Weight:28.88 lbs.
• Maximum Dimensions:17.83" (W) x 6.25" (H) x 13.89" (D)

TURNTABLE

• Drive Method:Quartz lock serve type direct drive
• Wow and Flutter:0.1% or less WRMS (JIS WTD)
• Motor:3-phase brushless DC motor
• S/N Ratio:70dB (DIN-B)
• Braking System:Electronic brake
• Turntable:Aluminum die-casting diameter: 13.07"
• Rotation Speed:33-1/3rpm, 45rpm
• Starting Torque:4.5kg-cm or more
• Rotation Speed Adjustment Range:±8%, ±16%, ±50%
• Start Time:0.3 seconds (at 33 1/3rpm)

TONE ARM

• Arm Type:Universal type S-shape tone arm, gimbal-supported type bearing structure, static type balance
• Tracking Error:Within 3°
• Effective Length:9.05"
• Arm Height Adjustment Range:0.23"
• Overhang:0.59"
• Stylus Pressure Variable Range 0oz to 0.14oz (1 scale 0, 0.03oz)
• Proper Cartridge Weight:Single cartridge: 0.12oz to 0.45oz (When shell weight is used: 0.12oz to 0.22oz),When only balanced weight is used: 0.21oz to 0.35oz (When sub weight is used: 0.33 to 0.45oz)

ProX XS-M10 Specifications

• Fits: Large Format 10" Mixer Case
• Dimensions:19.50"Length (L) X 13.00"Width (W) X 8.00"Height (H),Weight: 17.00 lbs
• Shipping Dimensions:21.50"L X 15.00"D X 10.00"H,Weight: 19.00 lbs

ProX T-TT Specifications

• Weight: 22.00 lbs
• Interior Width: 17.5" - 15"
• Interior Depth: 15" - 13.5"
• Dimensions (exterior): 20"x16"x9"
• Weight: 16lbs

Shipping Dimensions

• 19.00"L X 23.00"D X 11.00"H
• Weight: 26.00 lbs

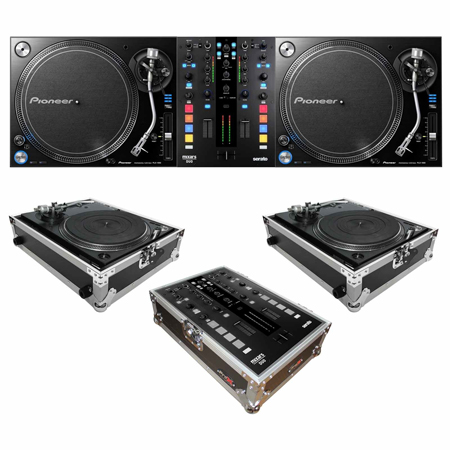

This Package Includes:

• (1) Mixars DUO MKII Professional 2-Channel Official Serato Mixer with Galileo Crossfader
• (2) Pioneer PLX-1000 Professional Turntables
• (1) ProX Large Format 10" DJ Mixer Case [XS-M10]
• (2) ProX Universal Turntable Cases

The DUO MKII Box Includes:

• (1) Mixars DUO MKII Professional 2-channel Official Serato Mixer with Galileo Crossfader
• (1) Power and USB cables
• (1) Owner's Manual

Each PLX-1000 Box Includes:

• (1) Turntable sheet
• (1) Slip mat
• (1) Dust cover
• (1) Head shell
• (1) Balance weight
• (1) Sub weight
• (1) Shell weight
• (1) Adapter for EP record
• (1) Power cord
• (1) Audio cable
• (1) Ground wire
• (1) Operating instructions

The XS-M10 Box Includes:

• (1) ProX Mixer Case for Large Format 10" DJ Mixers [XS-M10]

Each T-TT Box Includes:

• (1) ProX Turntable Case [T-TT]
