It's never been easier to shop for DJ equipment!      Click Here To Go To Our Main Page




Regular Price $1599.99
Our Price $899.99


The MATRIX-1000 V2 is a complete sound reinforcement SOLUTION comprised of two 10” two-way powered satellites and a dedicated powered 15” subwoofer. The MATRIX-1000 V2 has a built-in three-channel 700-watt power amplifier, three distinct volume controls, electronic crossover with equalization and VCA compressor. The circuitry is designed and fine-tuned to integrate all components for the best possible sound. There is no need to tweak or finesse settings on a crossover or compressor to make your system sound great. Simply roll the system into place on its heavy duty casters, plug in the AC, connect the two speaker cables, run two XLR cables to your mixer and you’re ready to go!

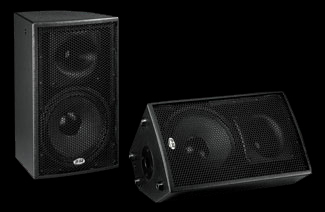

10" SATELLITE SPEAKERS
The MATRIX-1000 V2 satellites are loaded with a custom designed
10” speaker and 1” titanium diaphragm compression driver. The
“horn” is a 900 by 600 elliptical waveguide that can be rotated
900 to optimize the dispersion pattern to best suit your particular
application. These versatile speakers are pole-mountable
and can sit as stage monitors. They also
include 3/8” – 16tpi flying hardware for small venue permanent installations. The rounded front of the satellite speaker is a perfect fit for the convex face of the subwoofer, allowing a mobile entertainer to stack, roll and transport the entire
MATRIX-1000 V2 in and out of a venue in record time.

BUILT-IN 3-CHANNEL AMPLIFIER
The 15î subwoofer enclosure is divided into two separate compartments. The front chamber serves as the cabinet for the 15î subwoofer. The rear chamber houses all of the systemís electronic circuitry, which includes the amplification for all three components, power supply and preamps. The 15î subwoofer has a power handling capability of 400 watts and a nominal impedance of 8 ohms.

TRANSPORTING THE SYSTEM
To transport the MATRIX-1000 V2, simply set the subwoofer on its casters and place the satellite speakers on to the subwoofer’s front panel, facing down. Fasten the satellites with the included locking strap using the handles on either side of the subwoofer cabinet. Place the included cover over the entire system and you’re ready to move the
MATRIX-1000 V2 with ease.
Amplifier Specifications
Subwoofer Power Output:
10 Two-way Power Output:
Line in:
Parallel out:
Input Impedance:
Speaker Out:
Crossover Frequency:
400 W / 8 Ohms @ 1% THD
150 W / 4 Ohms @ 1% THD
XLR Female
XLR Male
48 k Ohms
Speakon NL4 Style Connector
120 Hz; 24 dB/ Octave
Subwoofer Specifications
Speaker:
Nominal Impedance:
Subwoofer Freq. Response:
Sound Pressure Level (1w/1m):
Max. SPL:
Weight:
Dimensions (Transport):
1 x 15 Custom Built B-52 Subwoofer
8 Ohms
40 Hz 120 Hz +/- 3dB
102 dB (half space)
127 dB @10% THD
115 lbs
28 (H) x 19 (W) x 23 (D)
  10' TWO-WAY SPEAKERS
Speaker Input:

LF/MF Woofer:
HF Driver:

HF Dispersion:
Nominal Impedance:
Active Freq. Response:
Crossover Frequency (passive):
Sound Pressure Level (1w/1m):
Max. SPL:
Weight:
Dimensions (Upright):

Speakon style connector
(pin 1+ = +, pin 1- = -)
1 x 10 Custom Built B-52 Transducer
1 x 3/4 Titanium Diaphragm on Compression Driver Horn
90 x 40
4 Ohms
120 19K Hz +/- 3dB
2.5 kHz; 12 dB / Octave
101 dB (half space)
124 dB @10% THD
25 lbs
19 (H) x 12 (W) x 11 (D)


iPod Cable - Connect your iPod to this package
Model Description Price
1700 1/8" - Two RCA 3ft $9.99
1701 1/8" - Two RCA 6ft $14.99
