PRO AUDIO




MACKIE POWER PACK 7

MACKIE POWER PACK 7

Regular Price $4273.99

Our Price $4024.99

WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $499.99

Full Protection Only $230.00

Regular Price $4273.99

Our Price $4024.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $499.99

Full Protection Only $230.00

We'll beat any price!

About This Product

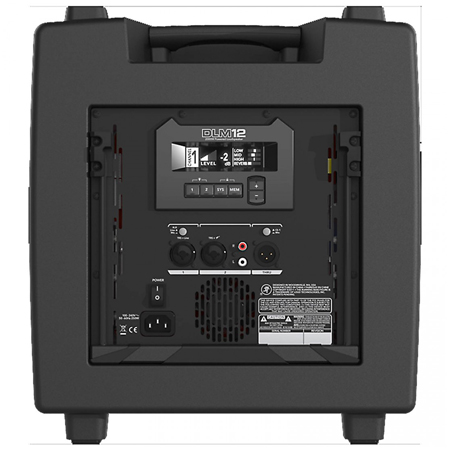

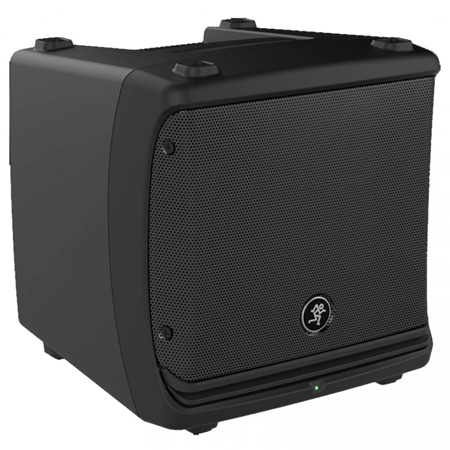

The incredibly powerful and versatile Mackie DLM12 Full Range Powered Loudspeaker provides 2000 watts into a portable, light-weight cab that can be used for virtually any performance! Featuring TruSource technology, the DLM12 is equipped with Mackie's TruSource driver that incorporates the high-output 12 inch woofer and 1.75 inch compression driver into an incredibly compact common-magnet design. Powerful TruSource DSP gives the DLM12 the seamless clarity, consistent dispersion and unmatched fidelity needed for PA applications.

The DLM12 features the built in Mackie DL2 digital mixer, providing 2 channels of mixing for a wide array of possible connections. 3-band EQ and 16 great-sounding effects are perfect for solo performers or groups that want to keep things simple! Plus, system processing like a multi-band feedback destroyer, six speaker modes and Smart Protect technology provide the tools needed for truly professional applications.

Configuration options of the Mackie DLM12 include pole/wall mounting and flying for high-end installs. The ultra-compact design features a rugged PC-ABS cabinet, powder-coated grill and integrated kickstand for personal monitor use. The new shape of sound - Mackie DLM12.

Mackie DLM12 Features:

⋅2000W power via ultra-efficient Class-D amplification
⋅TruSource™ Technology
⋅Mackie designed, vertically-aligned, common-magnet TruSource driver
⋅12? LF woofer / 1.75? HF compression driver
⋅Incredibly compact, lightweight design
⋅Powerful TruSource DSP delivers seamless clarity, consistent coverage & unmatched fidelity

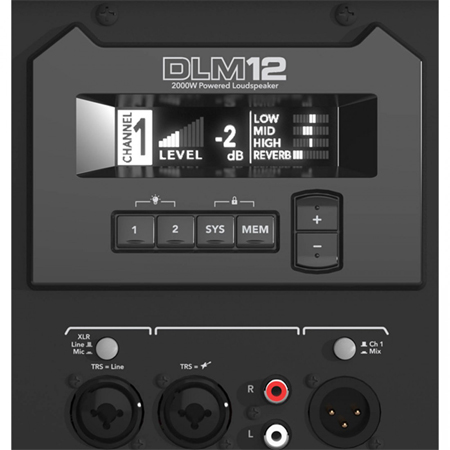

⋅DL2 Integrated Digital Mixer
⋅Powerful, one-touch digital mixer with bright OLED screen
⋅Two highly-versatile input channels with FX
⋅Independent channel level, 3-band EQ & effects control
⋅16 great-sounding channel effects include reverb, chorus & delay
⋅XLR/TRS combo & dual RCA connectors
⋅Handles mic, line, stereo & instrument signals
⋅Unmatched system control for professional applications
⋅Multi-band feedback destroyer
⋅Six speaker modes deliver the perfect voicing for your application
⋅Alignment delay up to 300ms for delay stack, balcony, etc.
⋅Three memory locations for instant venue setting recall
⋅Smart Protect DSP dynamically protects amp/driver
⋅Innovative ultra-compact design
⋅1/3 smaller than a traditional 2-way
⋅Fit an entire DLM system in nearly any car
⋅Stack them up for storage
⋅Pole-mountable on tripod or atop DLM12S using SPM300 speaker pole
⋅Flyable via standard M10 rigging hardware
⋅Wall-mount them using SWM300 articulated arm for stealthy, powerful install system
⋅Roadworthy PC-ABS cabinet with pro black finish & ergonomic top carry handle
⋅Rugged, powder-coated 20 gauge steel grille
⋅Integrated kickstand delivers perfect angle for personal monitor use
⋅Ridiculously lightweight (31 lbs. / 14.1 kg)

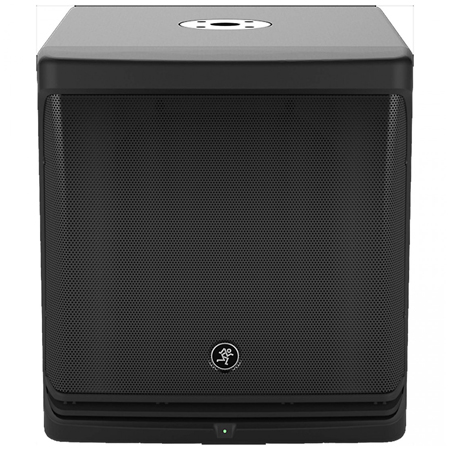

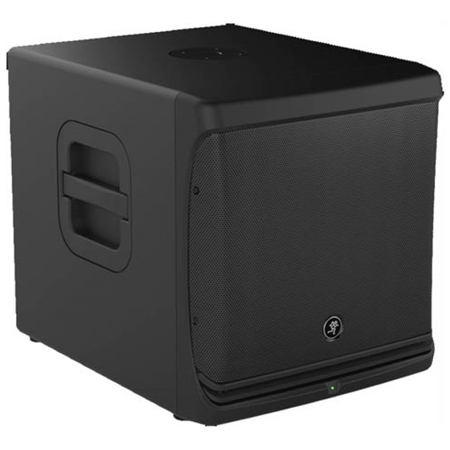

Mackie DLM12S 2000 Watt 12" Powered Subwoofer

Packing huge power and deep low end into the highest-output compact subwoofer on the market, the Mackie DLM12S 12" Powered Subwoofer delivers 2000 watts of chest-pounding power into any system. The DLM12S features an integrated Mackie DLP digital processor, offering intuitive one-touch control over the professional tools you demand for your professional sound system. A precision digital crossover optimizes any loudspeaker, including the perfect presets for your Mackie full-range loudspeakers.

Mackie DLM12S Features:

⋅ 2000W power via ultra-efficient Class-D amplification
⋅ High-power 12?, heat-treated woofer with 3? voice coil
⋅ Ultra-low frequency extension hits hard down to 35 Hz

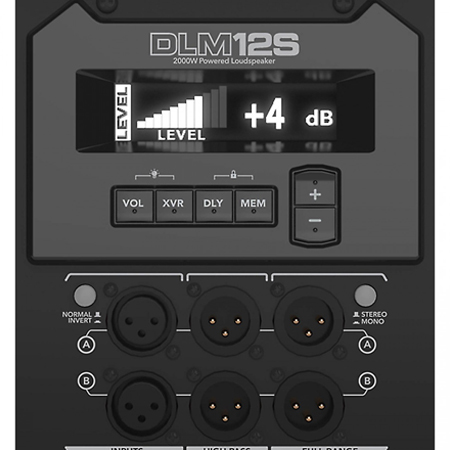

⋅ DLP Digital Processor
⋅ Powerful, one-touch digital processor with bright OLED screen
⋅ Precision digital crossover
⋅ Presets for use with DLM & SRM Series full-range loudspeakers
⋅ Variable crossover control for optimization with any loudspeaker
⋅ Six total XLR connects for flexible I/O control
⋅ Two line level inputs
⋅ Two full-range outputs for side fills, etc.
⋅ Two high-pass outputs for direct connection to DLM loudspeakers
⋅ Unmatched system control for professional applications
⋅ Alignment delay up to 300ms for delay stack, balcony, etc.
⋅ Three memory locations for instant venue setting recall
⋅ Smart Protect DSP dynamically protects amp/driver
⋅ Innovative ultra-compact design
⋅ Highest-output compact subwoofer on the market
⋅ Fit an entire DLM system in nearly any car
⋅ Stack them up for storage
⋅ Pole mount a DLM8 or DLM12
⋅ Extremely durable 15mm poplar cabinet
⋅ Rugged, powder-coated 20 gauge steel grille
⋅ Ridiculously lightweight (48 lbs. / 21.7 kg)

Mackie DLM12 Specifications

  • Power Capacity : 1,000W RMS, 2,000W peak
  • Low Frequency Driver : 12" (305 mm) woofer, 2.5" (64 mm) voice coil diameter, Paper diaphragm, Ferrite magnet
  • High Frequency Driver : 1.75" (44 mm) compression driver, 1" (25 mm) horn entry diameter, Polyimide film diaphragm, Ferrite magnet
  • Frequency Response : 38 Hz to 20 kHz (-10 dB)
  • Maximum Sound Pressure Level (SPL) : 128 dB @1 m, calculated
  • Crossover : 1.6 kHz
  • Dispersion : 90° conical
  • Equalization : Low shelving: ±15 dB @ 80 Hz, Mid-peaking: ±15 dB @ 2.5 kHz, High shelving: ±15 dB @ 12 kHz,Increments: ±3 dB
  • Amplifier Power : Low Frequency Amplifier:, 500W RMS, 1,000W peak, Rated THD: < 1%, Cooling: multi-speed fan, Class D design
  • High Frequency Amplifier: 500W RMS, 1,000W peak, Rated THD: < 1%, Cooling: multi-speed fan Class D design
  • Audio Inputs : 1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable), 1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input),2 x RCA phono - Channel 2 (1 x L/R)
  • Input Impedances : Channel 1: Mic: 3.3kO balanced Line: 20kO balanced, 10kO unbalanced 1/4" TRS: 16kO balanced, 8kO unbalanced Channel 2: XLR Line: 20kO balanced, 10kO unbalanced 1/4" TRS [Hi-Z instrument]: 1MO unbalanced RCA: 25kO unbalanced
  • Audio Output :1 x XLR - Thru (switchable output, channel 1 or mix)
  • Mixer Section : DL2 Digital Mixer System Processing: EQ: 6 speaker modes Alignment delay: 0 to 300 ms FX: 16 presets Multi-band feedback destroyer: On / Off / Clear / Hold Memory: 3 locations for instant venue setting recall and factory reset
  • Power Requirements 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W
  • AC Plug Style 3-pin IEC 250VAC
  • Operating Temperature Range 32 to 104°F (0 to 40°C), extended ambient temperature
  • Construction : PC-ABS cabinet High durability black paint finish Top handle Powder-coated 20 gauge steel grille Three M10 x 17 mm fly points 50° monitor angle (using integrated kickstand)
  • Mounting Options : Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points
  • Dimensions (H x W x D) : 15.9 x 15.3 x 14.3" (403 x 389 x 363 mm)
  • Weight : 31 lb (14.1 kg)

Mackie DLM12S Specifications

  • Power Capacity : 1,000W RMS,2,000W peak
  • Low Frequency Driver : 12" (305 mm) woofer, 2.5" (64 mm) voice coil diameter,Paper diaphragm, Ferrite magnet
  • High Frequency Driver : 1.75" (44 mm) compression driver, 1" (25 mm) horn entry diameter, Polyimide film diaphragm, Ferrite magnet
  • Frequency Response : 38 Hz to 20 kHz (-10 dB)
  • Maximum Sound Pressure Level (SPL) : 128 dB @1 m, calculated
  • Crossover : 1.6 kHz
  • Dispersion : 90° conical
  • Equalization : Low shelving: ±15 dB @ 80 Hz, Mid-peaking: ±15 dB @ 2.5 kHz, High shelving: ±15 dB @ 12 kHz, Increments: ±3 dB
  • Amplifier Power : Low Frequency Amplifier: 500W RMS, 1,000W peak,Rated THD: < 1%, Cooling: multi-speed fan, Class D design, High Frequency Amplifier:500W RMS, 1,000W peak, Rated THD: < 1%, Cooling: multi-speed fan, Class D design
  • Audio Inputs : 1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable),1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input),2 x RCA phono - Channel 2 (1 x L/R)
  • Input Impedances Channel 1: Mic: 3.3kO balanced, Line: 20kO balanced, 10kO unbalanced, 1/4" TRS: 16kO balanced, 8kO unbalanced
  • Channel 2: XLR Line: 20kO balanced, 10kO unbalanced, 1/4" TRS [Hi-Z instrument]: 1MO unbalanced, RCA: 25kO unbalanced
  • Audio Output : 1 x XLR - Thru (switchable output, channel 1 or mix)
  • Mixer Section : DL2 Digital Mixer System Processing: EQ: 6 speaker modes, Alignment delay: 0 to 300 ms, FX: 16 presets, Multi-band feedback destroyer: On / Off / Clear / Hold, Memory: 3 locations for instant venue setting recall and factory reset
  • Power Requirements : 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W
  • AC Plug Style : 3-pin IEC 250VAC
  • Operating Temperature Range : 32 to 104°F (0 to 40°C), extended ambient temperature
  • Construction : PC-ABS cabinet, High durability black paint finish, Top handle, Powder-coated 20 gauge steel grille, Three M10 x 17 mm fly points, 50° monitor angle (using integrated kickstand)
  • Mounting Options : Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points
  • Dimensions (H x W x D) : 15.9 x 15.3 x 14.3" (403 x 389 x 363 mm)
  • Weight : 31 lb (14.1 kg)

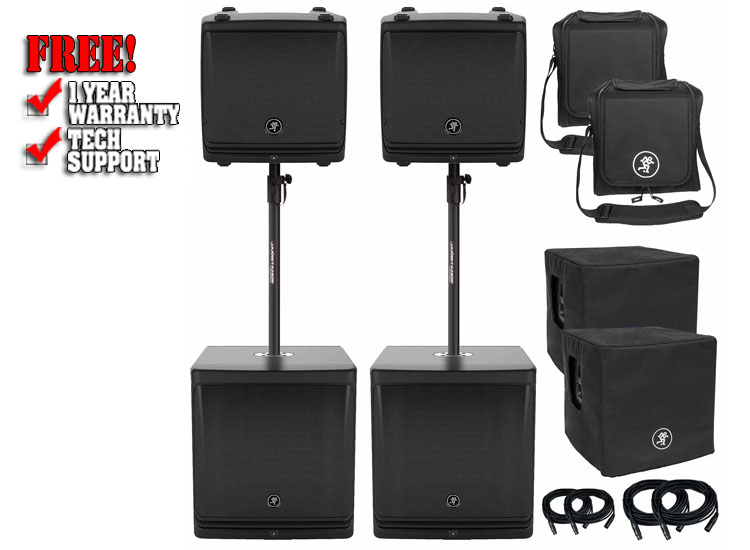

This DLM12 Pro Pack Includes:
(2) Mackie DLM12 Powered Loudspeakers
(2) Mackie DLM12S Powered Subwoofers
(2) Mackie DLM12 Travel Bags
(2) Mackie DLM12S Travel Bags
(2) 25FT XLR cables
(2) 15FT XLR cables
(2) Speaker Poles
