MACKIE POWER PACK 5

About This Product

Mackie SRM 1600W High-Definition Powered Loudspeakers deliver on Mackie's "Built-Like-A-Tank" SRM legacy in professional-grade all-wood designs with the output, clarity and simplicity you demand. Featuring Mackie High Definition Audio Processing™ and optimization tools like application-specific speaker modes and a feedback destroyer, SRM is the ultimate modern everyday PA speaker.

A Modern Workhorse

Mackie SRM 1600W High-Definition Powered Loudspeakers deliver a new level of SRM ruggedness, output, clarity and simplicity. Three powerful boxes provide the right sound for any application. SRM loudspeakers deliver the modern output, amazing sound and proven durability you demand from your system.

Built Like A Tank

True to Mackie's legendary "Built-Like-A-Tank" design history, SRM Series 1600W Powered Loudspeakers deliver the raw power and unmatched durability you demand. After all, your speakers are an investment and you work them hard. Each SRM loudspeaker can pump out 1600 watts of unadulterated power via custom high-output transducers, delivering gig-level volumes with room to spare. The professional grade cabinets feature an extremely tough, all-wood design with substantial internal bracing that not only adds natural character to your sound, it ensures your speaker will survive night after night. Add to that the steel front grille that just begs to be stomped and you've got a speaker that not only delivers the power you crave, but is also "Built-Like-A-Tank" because we know what it's like to gig.

Ready For Anything

Flexibility is critical with a portable PA system. That's why SRM loudspeakers feature an integrated 2-channel mixer than can handle anything you can throw at it. Each channel sports Mackie's Wide-Z™ inputs that are custom-designed to handles anything from mics to guitars to mixers with a single twist of a knob plus a stereo RCA input perfect for smartphones or laptops.

You can stick a full range SRM speaker on a tripod or connect it to an SRM subwoofer with a standard speaker pole. Perfect for use as stage monitors, SRM top boxes not only have a specific monitor speaker mode, they also reach a 60-degree angle when placed on the side. This directs the sound at the musician's ears, not their belt buckle. And, installs are no problem, since SRM full-range loudspeakers are flyable via standard M10 rigging points.

Street Smart

With SRM, you get all the latest modern tools to make your show sound amazing without the headache you'll get from sorting through endless menus during the show. SRM Series 1600W High-Definition Powered Loudspeakers are packed with complex and DSP-intensive acoustic optimization that is ready to rock with just a press of a button. Like the game-changing Mackie SRM450, which brought studio-quality sound to the masses 15 years ago, the new all-wood SRM models deliver premium, high-definition sound to the everyday portable PA.

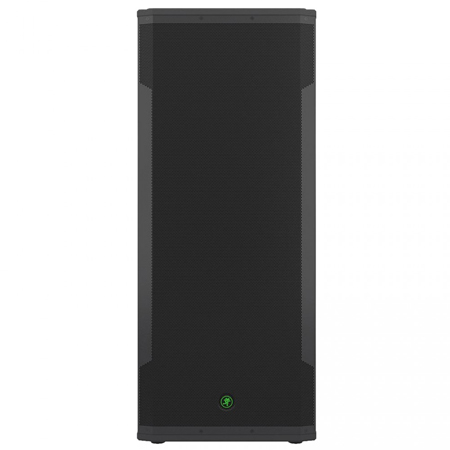

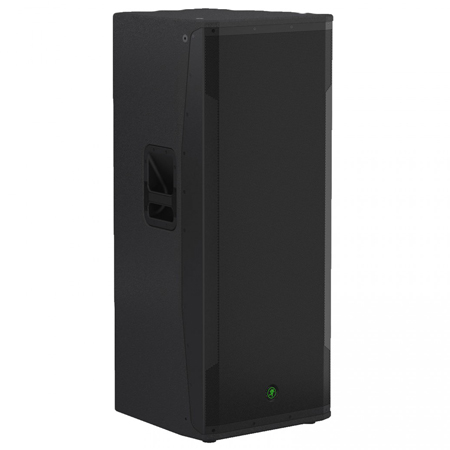

SRM750 Features:

• 1600W system power paired with custom transducers deliver gig-level volumes with room to spare.
• 2 x 15" high-output LF drivers / 1.4" titanium dome compression driver.
• Built-Like-A-Tank" all-wood, internally-braced cabinet delivers professional-grade road-worthiness.
• Rugged 18-gauge steel grille and fine-textured, sleek black cabinet finish.
• Front ported for maximum low-end extension and punch.
• High-Definition Audio Processing for professional sound with unmatched clarity.
• Patented acoustic correction developed with touring geniuses at EAW.
• Precision 2 way digital crossover.
• Driver time alignment and phase correction.
• Quick one-button Speaker Mode selection for application-specific voicing (PA, DJ, Fill and Speech).
• Effortlessly eliminate nasty feedback with one-button automatic Feedback Destroyer.
• Integrated 2-channel mixer featuring dual Mackie Wide-Z™ inputs.
• Handles anything from mics to guitars to mixers with a single twist of the gain knob.
• Includes stereo RCA inputs for easy connection to music source.
• Perfect for the singer/songwriter, plug in and leave the mixer at home.
• Smart Protect™ DSP kicks in to protect your investment when things get pushed a little too hard.
• Flyable both vertically and horizontally via standard M10 eyebolts.

Mackie Padded Protective SRM750 Speaker Cover

Who loves big dings on the side of their brand new speaker? We thought not. Protect your investment with these durable speaker covers that fit perfectly on your SRM loudspeaker.

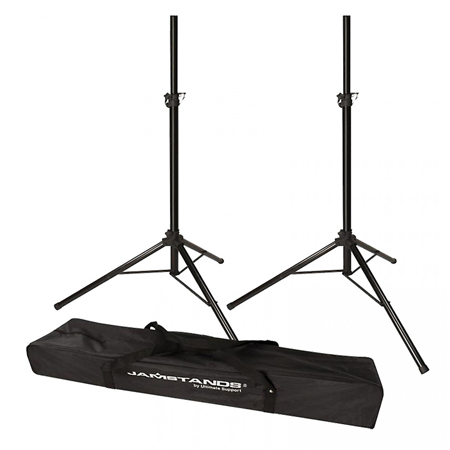

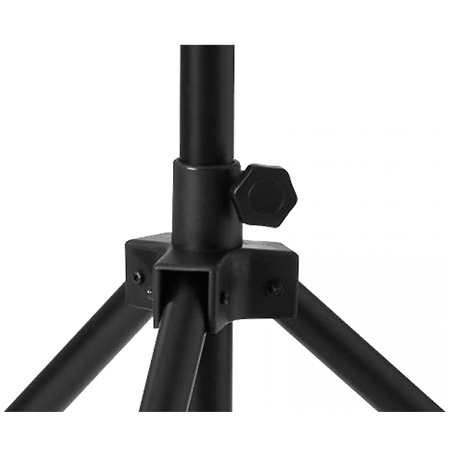

Ultimate Support JS-TS50-2 Tripod Speaker Stand Pair with FREE Carry Bag

Speaker stands need to be both sturdy and easy to move. The Speaker Stand (Pair) fits on both accounts, giving you a stable environment in which to elevate your speakers to optimum height. Crafted from aluminum and powder-coated for finish durability, these stands will give you years of service. Each stand can hold up to 120 lbs. The strong telescoping and leg collars provide a stable stand for your speakers. The height adjustment collar has a safety pin for extra security. The JS-TS50-2 also includes a handy carry bag for FREE!

JS-TS50-2 Features:

• Part Name: JS-TS50-2.
• Long-lasting aluminum construction.
• Durable powder-coated finish.
• Tripod base is very stable and sturdy.
• Stand is height-adjustable.
• Carrying bag included for FREE!
• Holds up to 120 lbs.
• Height 46.5" - 81.5".

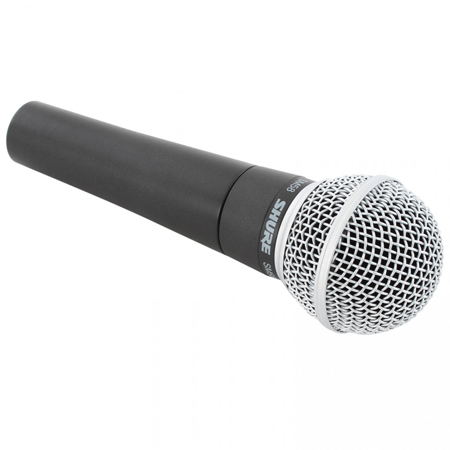

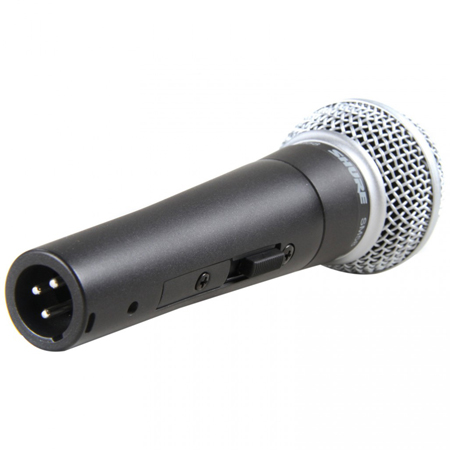

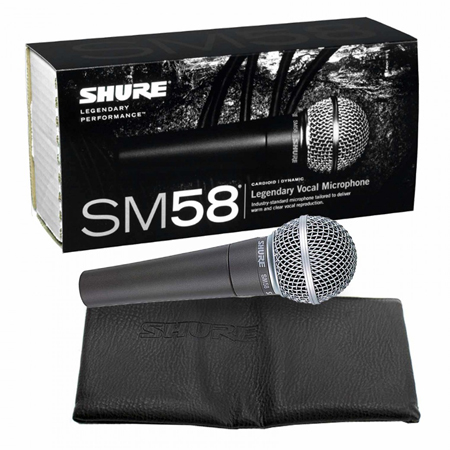

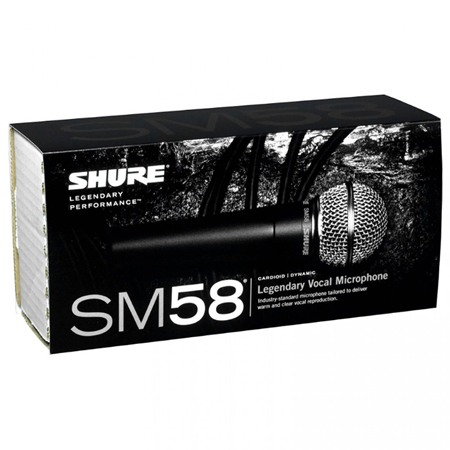

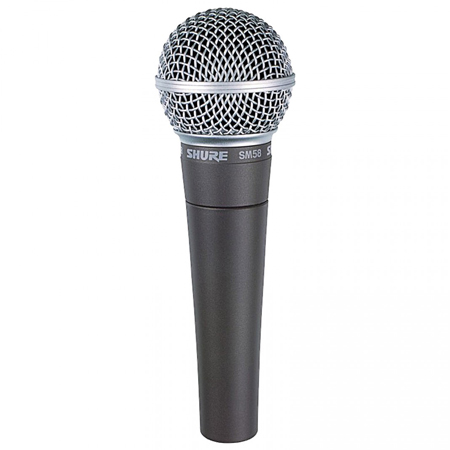

Shure SM58 Vocal Microphone

Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

SM58 Features:

• Frequency response tailored for vocals, with brightened midrange and bass rolloff.
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
• Pneumatic shock-mount system cuts down handling noise.
• Effective, built-in spherical wind and pop filter.
• Supplied with break-resistant stand adapter which rotates 180 degrees.
• Legendary Shure quality, ruggedness and reliability.
• Cardioid (unidirectional) dynamic.
• Frequency response: 50 to 15,000 Hz.
• Replacement cartridge: R59.

Mackie SRM750 Specifications

Acoustic Performance:
Frequency Response (-3 dB): 42 Hz-20 kHz [SRM750]
Frequency Response (-10 dB): 37 Hz-20 kHz [SRM750]
Max peak SPL: 135 dB [SRM750]
Crossover Point; 3 kHz
Dispersion [H x V]; 90° x 50°

High-Frequency Section
Voice Coil Diameter: 1.0 in / 25 mm
Horn Entry Diameter: 1.4 in / 36 mm
Diaphragm Material: Titanium
Magnet Material: Ferrite

Low-Frequency Section
Woofer Diameter: 2x 15 in/381 mm [SRM750]
Voice Coil Diameter: 2.5 in/64 mm [SRM750]
Diaphragm Material: Paper
Magnet Material: Ferrite

Power Amplifiers
System Power Amplification
Rated Power: 800 Watts RMS
: 1600 Watts Peak

Low Frequency Power Amplifier
Rated Power: 400 Watts RMS
: 1600 Watts Peak

High Frequency Power Amplifier
Rated Power: 400 Watts RMS
: 1600 Watts Peak
Rated THD: < 1%
Cooling: Convection
Design: Class D

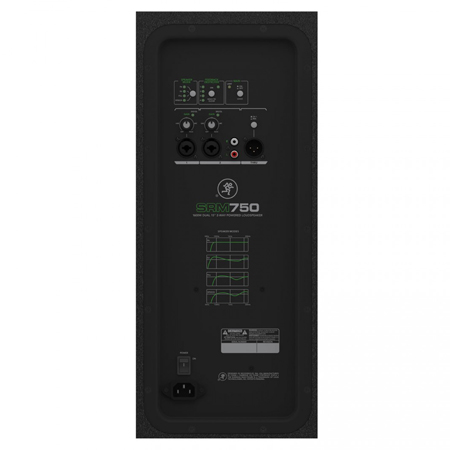

Input/Output
Channel 1
Mic-Line: 8 k balanced
1/4" TRS, Wide-Z: 1 M unbalanced

Channel 2
Mic-Line: 8 k balanced
1/4" TRS, Wide-Z: 1 M unbalanced
RCA: 25 k unbalanced

Thru
Male XLR balanced [Passive when the Ch 1 / Mix switch
is in the "out" (Ch 1) position]
[Active when the Ch 1 / Mix switch is in the "in" (Mix) position]

Line Input Power
US detachable line cord: 100 - 120 VAC, 50 - 60 Hz, 200W
EU detachable line cord: 200 - 240 VAC, 50 - 60 Hz, 200W
AC Connector: 3-pin IEC 250 VAC
Power Supply Type: Switchmode

Safety Features
Input Protection: Peak and RMS limiting,
power supply and amplifier thermal protection Display LEDs
Defeatable front power ON (Running Man logo), Front load power limiter, Speaker Mode, Feedback Destroyer, input signal

Construction Features
Cabinet: 15 mm Poplar
Finish: High durability black paint

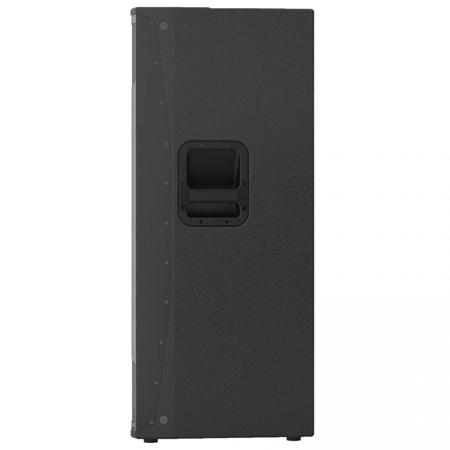

Handles: One on each side
Grille: Powder-coated 18 gauge steel
Fly Points: 10x M10 x 1.5 x 37 mm

Physical Properties
Height: 42.5" / 1080 mm
Width: 17.5" / 445 mm
Depth: 18" / 458 mm
Weight: 89 lb / 40.4 kg

Shure SM58 Specifications

• Type : Dynamic (moving coil)
• Frequency Response : 50 to 15.000 Hz
• Polar Pattern : Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency

Ultimate Support JS-TS50-2 Specifications

Product Name: JS-TS50-2
Part Number: 17318
Height: 46.5" - 81.5"
Base Diameter: 47"
Load Capacity: 120 lbs.
Telescoping Tube: 1 3/8" (35mm)
Weight (Per Stand): 4.2 lbs.

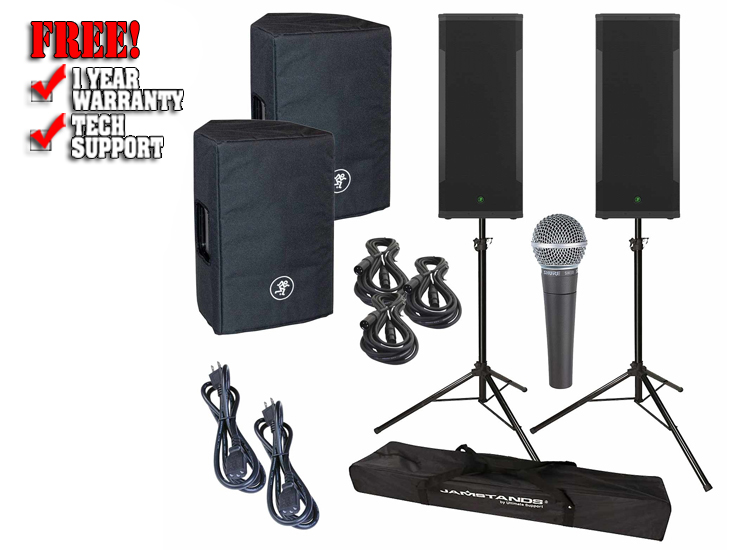

The Mackie SRM750 Go Pack Includes:
(2) Mackie SRM750 1600 Watt Dual 15" High-Definition Powered Loudspeakers
(2) Mackie Padded Protective SRM750 Speaker Covers
(3) 20FT XLRF to XLRM Microphone/Speaker Connecting Cables
(2) 10FT 16 Gauge AC Extension Cords (One for each speaker)
(2) Ultimate Support JS-TS50-2 Tripod Speaker Stands
(1) Durable Carry Bag (For the Speaker Stands)
(1) Shure SM58 Vocal Microphone

(1) Mackie SRM750 Powered Loudspeaker
(1) Power Cord
(1) Owner's Manual

(1) Shure SM58 Vocal Microphone
(1) Swivel Stand Adapter

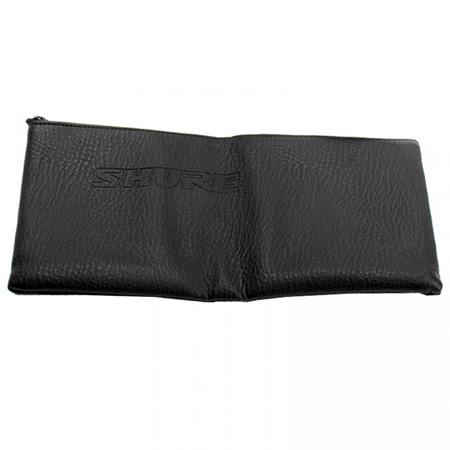

(1) Storage Bag
(1) Microphone Clip
(1) User Guide

(2) Tripod Speaker Stands with FREE Carry Bag
(1) Durable Speaker Stand Carry Bag
