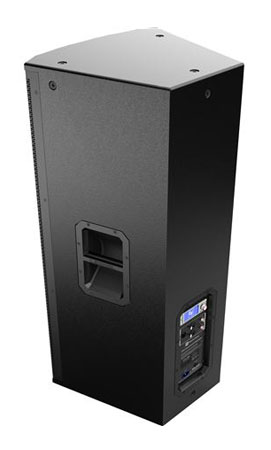

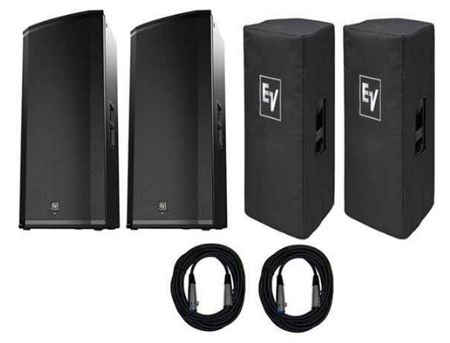

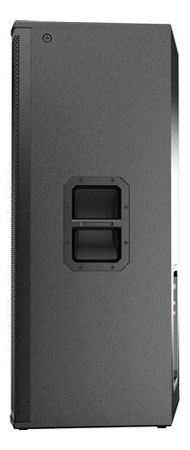

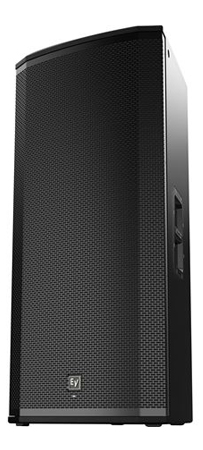

Electro Voice ETX35P Dual 15inch 3-Way Powered Loudspeaker Package

Electro Voice ETX-35P 3-Way Powered PA Speaker Features

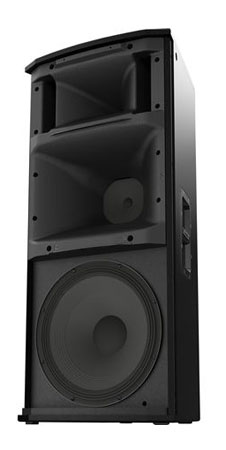

• High-sensitivity 15-inch woofer, 6.5-inch MF driver and 1.25-inch compression driver with linear frequency response
• 2,000 watt Class-D amplifier is highly efficient
• Amp features blower-controlled thermal management to work in high temperatures
• Waveguides custom-designed and optimized specifically for the ETX-35P
• Forward-placed waveguide helps physically time-align the LF and HF transducers
• Placing the port under the waveguide minimizes distortion and standing waves in the speaker
• System DSP presets support easy setup via selections for type of use, crossover frequencies and top/sub combinations
• Limiters are displayed on the rear LCD and on the front-grille LED
• User-adjustable features include delay out to several hundred feet, three-band parametric EQ, polarity and multiple high-pass crossover points
• 18-mm, 13-ply birch plywood with EVCoat for a great look and durability

Intelligent technology, innovative design

EV's FIR-Drive utilizes the latest Finite Impulse Response (FIR) filter technology to optimize transducer linearity. Advanced limiter algorithms for independent peak and thermal transducer protection.

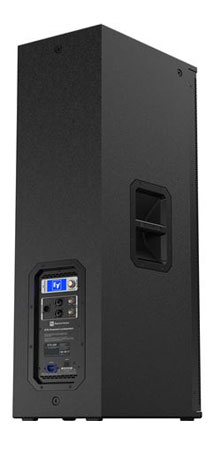

Complete full-function DSP control via a single-knob interface. LCD screen for easy system set-up and monitoring: location/application EQ presets, limiter status, input level controls/meters and master volume control to ensure optimal gain structure.

Product Specifications

Electro Voice ETX-35P Powered PA Speaker Specifications

• Frequency Response: 48 Hz - 20 kHz
• Frequency Range: 38 Hz - 20 kHz
• Maximum SPL: 136 dB peak
• Coverage (H x V): 60 x 40 degrees
• Power Rating: 2000 W
• LF Transducer: SMX2151A 15 inch
• MF Transducer: EVS-6C 6.5-inch mid-bass driver
• HF Transducer: DH3-B 1.25 inch titanium compression driver
• Crossover Frequency: 700Hz, 2900Hz
• Connectors: (2) XLR/TRS combo jack and (1) XLR link output
• Enclosure: 18-mm, 13-ply birch plywood with EVCoat
• Grille: 16AWG steel with powdercoat
• Dimensions (HxWxD): 40 x 18 x 17 inches (1023x469x426mm)
• Weight: 84.2 lb (38.2 kg)
