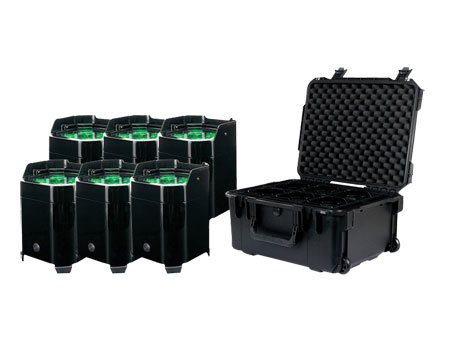

ADJ Element HEX IP PC6 Pak

From the Element Par Series, the Element HEXIP is an IP54 outdoor rated battery powered LED Par with ADJ's WiFLY EXR wireless DMX for indoor or outdoor use. It's powered by four 10W RGBAW+UV (6-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

The Element PC6 is a waterproof case made of ultra high-strength polypropylene copolymer resin, featuring a gasket sealed, water and dust tight, submersible design (MIL-C-4150J) that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve (MIL-STD-648C), resistance to UV, solvents, corrosion, fungus and impact damage (MIL-STD-810F).

Specifications

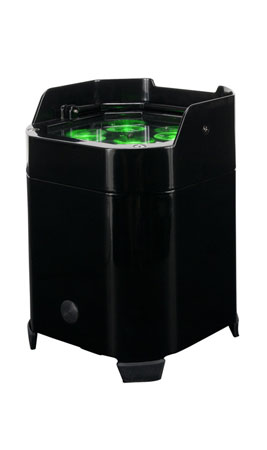

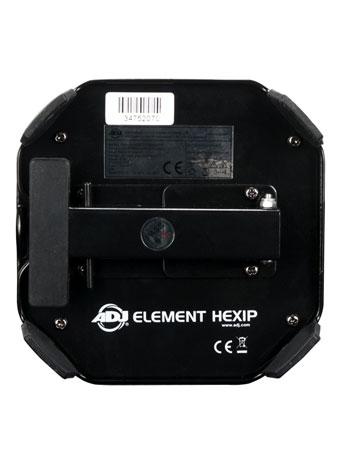

Element HEXIP

Optical:

• 4 x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 684 @ 2M; 171 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz

Connection:

• DMX:WiFLY EXR Wireless DMX
• With Wired Digital Communication Network
• IEC connection to power/charge fixture

Control:

• Control protocol: WiFLY EXR DMX
• 5 DMX Channel modes: 6, 7, 8, 11, or 12
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

• IP54 Outdoor Rated

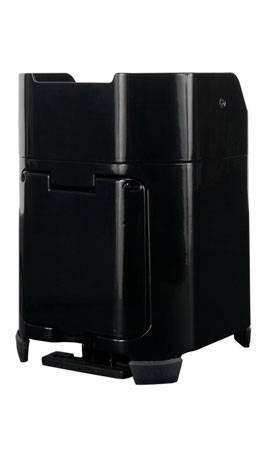

• Built-in kickstand to angle figure while it's on the floor

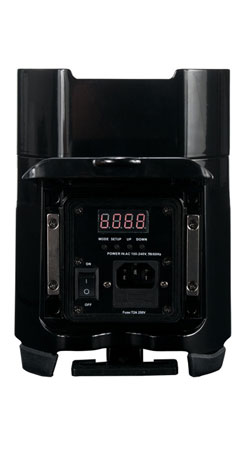

• 4-button DMX menu display on rear panel with water resistant hatch
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
• 63 built-in Color Macros
• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night - No duty cycle
• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 16 hours ( Full charge, single color, Battery Saving mode ON)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.5" x 5.5" x 7.5" / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.

Certifications:

• ETL Approved
• CE Approved
• IP54 Outdoor rated

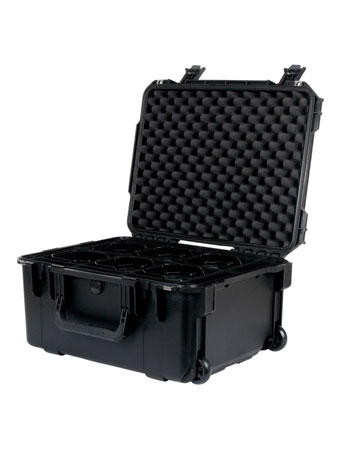

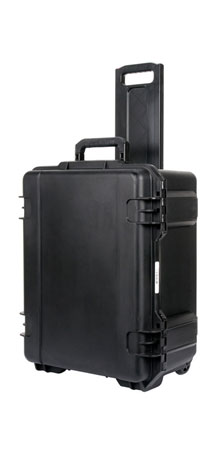

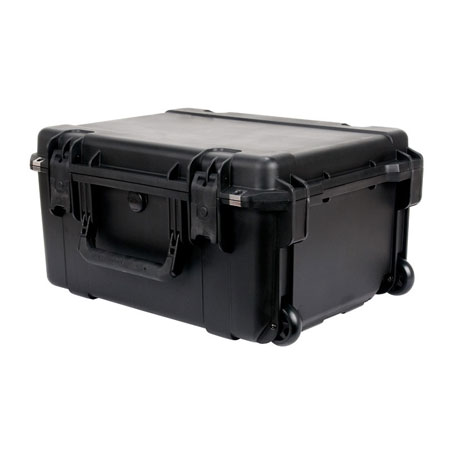

Element PC6

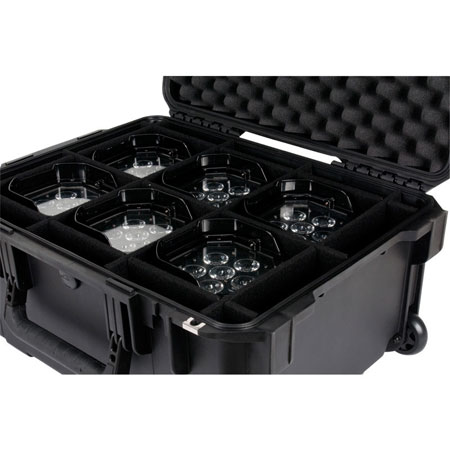

• Securely holds six Element Pars
• Waterproof and dust tight design (MIL-C-4150J)
• Molded-in hinge for added protection
• Trigger release latch system
• Snap-down rubber over-molded cushion grip handle
• Ambient pressure equalization valve (MIL-STD-648C)
• Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F)
• Resistant to impact damage (MIL-STD-810F)
• Limited lifetime warranty
• Exterior Dimensions: 22.92" x 18.75" x 12" / 565x476x305mm
• Interior Dimensions: 20.5" x 15.5" x 10" / 520x394x254mm
• Weight (empty): 14.5 lbs. / 6.5kg.
