Chauvet DJ Intimidator Trio Moving Head Quad Package

Overview

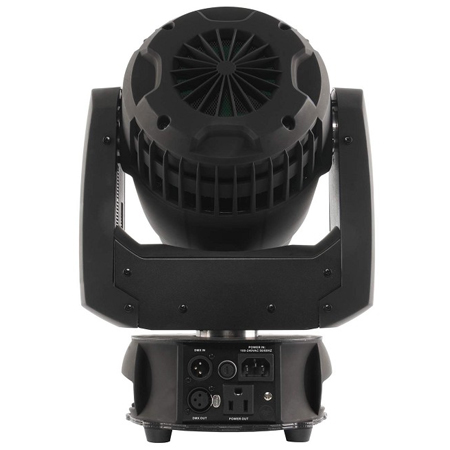

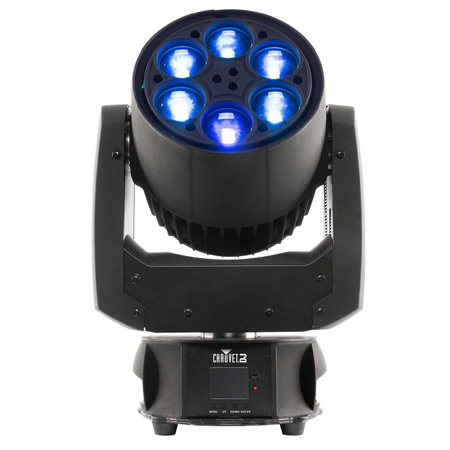

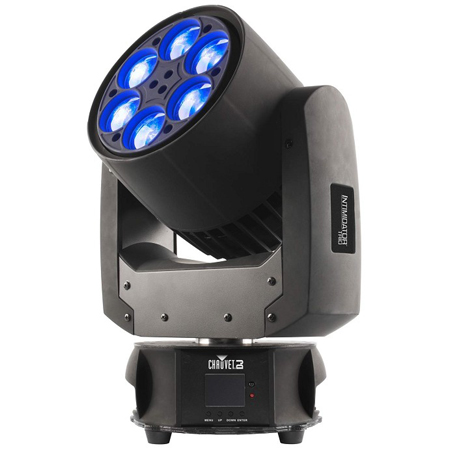

Chauvet DJ Intimidator Trio

The Intimidator Trio is an innovative, LED-powered moving head with beam, wash and effect features. It allows you to seamlessly change from a narrow beam to a wide wash with the motorized zoom. Its continuously rotating honeycomb delivers the excitement of an effect light and you can generate complex looks easily with built-in, eye-catching auto programs with zone control. The Intimidator Trio features built-in Totem mode that allows the beams to remain focused on the dance floor and coordinated master/slave programs for up to 4 fixtures gives an advanced look with no programming. You can set, save, and recall 1 scene directly from the full-color LCD display and convenient, wireless non-DMX control is at your fingertips using the optional IRC-6 remote. Save time running cables by power linking multiple units.

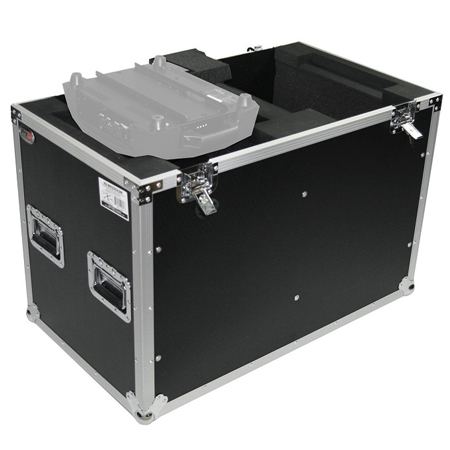

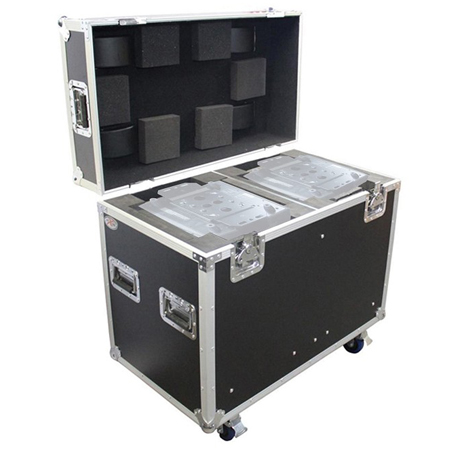

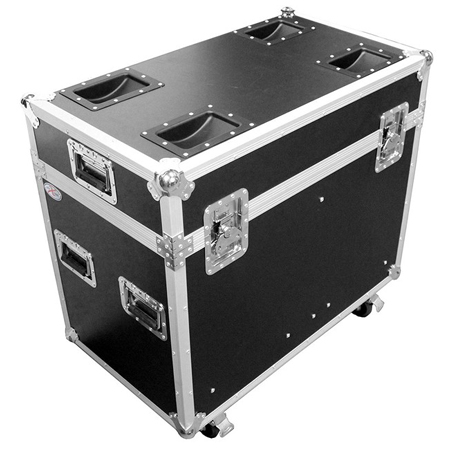

ProX 250 Style Moving Head Lighting Case for 2 Units

[XS-MH250X2]

Invest in the best protection for your moving head lights. This Case holds 2x 250 style moving heads.

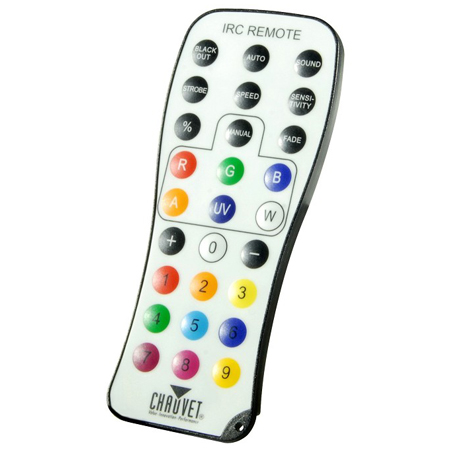

Chauvet DJ IRC-6 Infrared Remote Control

The IRC-6 is an easy-to-use infrared remote control (IRC) for IRC compatible lighting fixtures. It provides instant access to pre-programmed scenes, color mixing options and on-the-fly speed adjustments. This compact and lightweight remote has an approximate range of 30 feet (9 m).

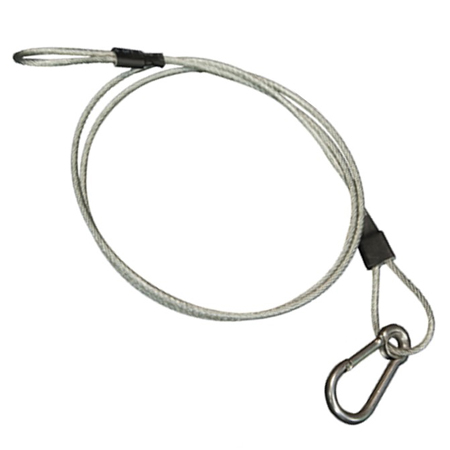

Chauvet DJ CH-05 31" Lighting Safety Cable

Chauvet encourages customers to make safety a priority by utilizing the right clamps and cables for their lighting applications. Every fixture that is hung should use a safety cable.

Features:

Intimidator Trio

• Innovative, LED-powered moving head with beam, wash and effect features.
• Seamlessly change from a narrow beam to a wide wash with the motorized zoom.
• Continuously rotating honeycomb delivers the excitement of an effect light.
• Generate complex looks easily with built-in, eye-catching auto programs with zone control.
• Built-in Totem mode allows the beams to remain focused on the dance floor.
• Coordinated master/slave programs for up to 4 fixtures gives an advanced look with no programming.
• Set, save, and recall 1 scene directly from the full-color LCD display.
• Convenient, wireless non-DMX control using the optional IRC-6 remote.
• Save time running cables by power linking multiple units.

MH250X2W

• 3/8 inch Plywood.
• Black finish laminate.
• Inside lined w/ Durable hard rubber.
• Heavy duty ball corners.
• Industrial rivets.
• Recessed spring-loaded handles.
• Recessed butterfly twist latches.
• 4 inch casters with brakes on 2 wheels.
• Aluminum extrusion around caster plate.
• Stack-able 4 inch caster Dish on top of each case.

IRC-6

• Wireless remote control for all Chauvet Freedom series & IRC products.
• Allows you to wirelessly select color, intensity, strobe rate and more.
• Provides instant access to pre-programmed light shows.
• Manually set individual color percentages to achieve the exact color without a DMX controller.

Safety Cable

• Steel cable ensures fixtures don't fall.
• Includes a carabiner to safely hook onto most fixtures.

Specifications

Chauvet DJ Intimidator Trio

• DMX Channels:15 or 30
• DMX Connectors: 3-pin XLR
• Pan and Tilt:540°/270°
• Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 270° tilt
• Light Source:6 LEDs (quad-color RGBW) 21 W (6.3 A), 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• PWM Frequency:1,200 Hz {web only - not for print}
• Zoom Angle : 7° to 53°
• Illuminance (7°):16,000 lux @ 2m
• Illuminance (53°) : 1,350 lux @ 2 m
• Power Linking:8 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:232 W, 1 A @ 230 V, 50 Hz
• Weight: 9.2 kg
• Size: 278 x 278 x 386 mm
• Optional Controllers:IRC-6
• Approvals:CE

Pro-X XS-MH250X2

UPC: 741459147068

Interior Dimensions

36.00"L X 30.00"D X 21.00"H

Weight: 92.00 lbs

Shipping Dimensions

37.00"L X 31.00"D X 22.00"H

Weight: 100 lbs

To Fit

2x 250 Style Moving Head Lighting fixtures

Please note: Caster Assembly is Required

Chauvet DJ IRC-6

• Max Unobstructed Distance: 15 ft (4.6 m)
• Input Voltage: 3 VDC lithium battery (CR2025)
• Weight: 0.7 oz (20 g)
• Size:3.9 x 1.8 x 0.3 in (100 x 47 x 7 mm)
• Approvals:CE

Chauvet DJ Safety Cable

• Load Capacity: 60 lb (25 kg)
• Length: 31 in (787 mm)
• Weight: 0.1 lbs (0.04 kg)
• Approvals: CE

What's Included

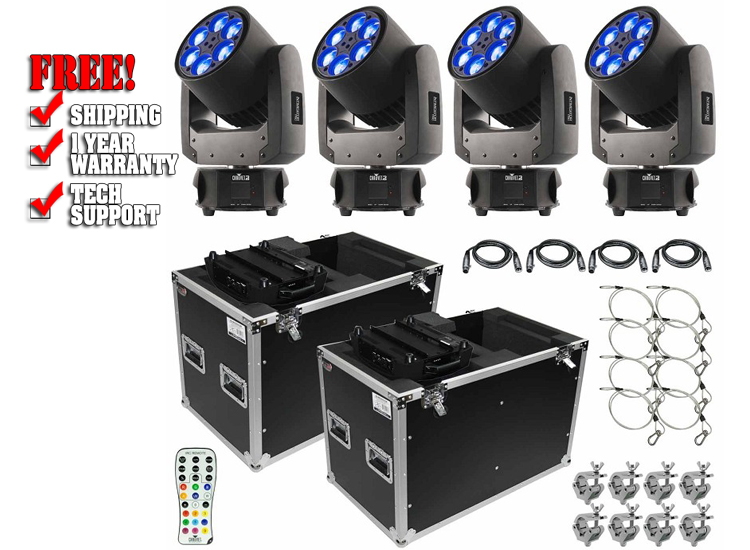

This Package

• (4) Chauvet DJ Intimidator Trio
• (2) ProX 250 Style Moving Head Lighting Case for 2 Units [XS-MH250X2]
• (4) 25FT Sure-fit DMX connecting cables

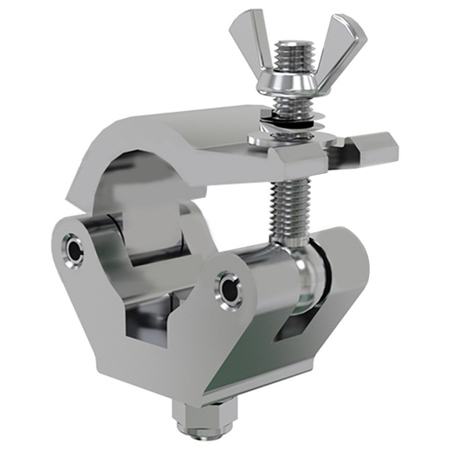

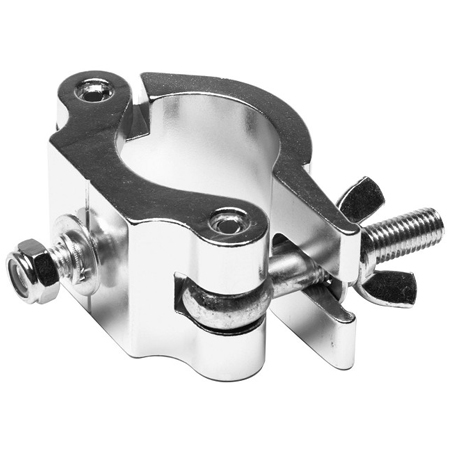

• (8) Global Truss Pro Clamps
• (8) Chauvet DJ CH-05 31" Lighting Safety Cables
• (1) Chauvet DJ IRC-6 Infrared Remote Control

Each Intimidator Trio Box

• (1) Chauvet DJ Intimidator Trio
• (1) Hanging bracket with mounting hardware
• (1) Power cord
• (1) Warranty card
• (1) Quick reference guide

Each XS-MH250X2 Box

• (1) ProX Cases MH250X2W 250 Style Moving Head Lighting Case for 2 Units

The Chauvet DJ IRC-6 Box

• (1) Chauvet IRC-6 Infrared Remote Control
• (1) QuickStart Guide
• (1) Warranty Card

Each CH-05 Box

• (1) Chauvet DJ CH-05 31" Lighting Safety Cable
