Trusst Goal Post Full Pro Kit

Description

Trusst Goal Post Full Pro Kit

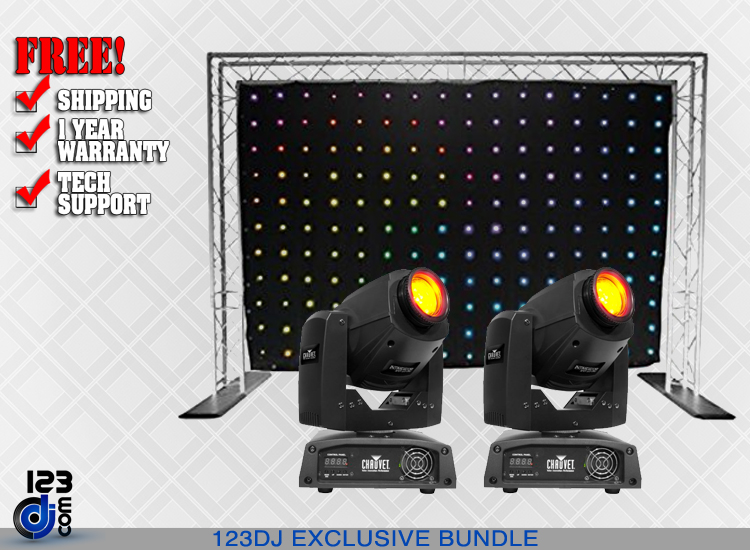

• Chauvet Trusst Goal Post Kit

  Goal Post truss Kit is a lightweight 35 mm triangular truss providing the perfect location to mount lights and hang backdrops such as the popular CHAUVET® DJ MotionDrape™ LED, for a professional presentation. It assembles in minutes using numbered sections.

• Chauvet Motion Drape

  The MotionDrape LED is a backdrop for any mobile performer. 176 tri-color SMD LEDs matrixed across the 6.5ft-by-9.8ft backdrop can be controlled via the included controller or via DMX. This impressive display has 30 animated effects that range from color fades to a graphic equalizer effect.

• Chauvet Intimidator Spot LED 250

  This feature-packed Intimidator Spot light-emitting diode 250 may be a 50-watt light-emitting diode moving head spot showcases a three-facet prism that splits the beam for nice effects and to hide a bigger space. Its easy-access gobo door permits for fast gobo changes, associate degreed an electronic variable resistor permits for super-smooth light-emitting diode attenuation.

Package Includes:

• 1 Chauvet Trusst Goal Post Kit
• 1 Chauvet Motion Drape
• 2 Chauvet Intimidator Spot LED 250

Specifications

Chauvet Trusst Goal Post Kit

• Outer diameter tube: 1.38 in (35 mm)
• Diagonal bracing:0.31 in (8 mm)
• Centerpoint load:243 lb (110 kg)
• Distributed load:595 lb (270 kg)
• Wall thickness:0.2 in (5 mm)
• Weight:98lb (44.4 kg)
• Size (assembled):11.2 x 3.8 x 7.7 ft (3.4 x 1.1 x 2.3 m)
• Size (internal):9.9 x 7 ft (3 x 2.1 m)
• Size (external):11.2 x 7.7 ft (3.4 x 2.3 m)
• Chauvet Intimidator Spot LED 25043.3 x 10.7 x 1.5 in (1100 x 273 x 38 mm)

Chauvet Motion Drape

• DMX channels: 8

• DMX connectors: 3-pin

• Lightsource: 176 tri-color SMD LEDs

• Input voltage: auto-ranging 100-240VAC 50/60Hz

• Power and current: 51W, 0.4A @ 120V 60Hz

• Power and current: 54W, 0.2A @ 230V 50Hz

• Weight (controller): 1.8lbs (0.8kg)

• Weight (drape): 9.8lbs (4.4kg)

• Size (controller): 5.3 x 9.6 x 2 in (135 x 243 x 50mm)

• Size (drape): 6.6 x 9.8 ft (2 x 3 m)

• Approvals: CE



Chauvet Intimidator Spot LED 250

• DMX channels: 8 or 13

• DMX connectors: 3-pin

• Pan & tilt: 540° / 270°

• Pan & tilt ranges: 540°, 360°, 180° pan / 270°, 180°, 90° tilt

• Colors: 8 + white, split colors, continuous scroll at variable speeds

• Gobos: 7 rotating, interchangeable, indexing, slot-n-lock, gobo shake, continuous scroll at variable speeds

• Gobo size: 24 mm outside, 20 mm image, 1.1 mm max thickness

• Light source: 1 white 40 W (14.4 A) LED 50,000 hrs

• Strobe rate: 0 - 20 Hz

• Beam angle: 17°

• Illuminance: 5,970 lux @ 2 m

• Power linking: 6 units @ 120 V / 11 units @ 230 V

• Input voltage: Auto-ranging 100-240 VAC 50/60 Hz

• Power and current: 150 W, 1.3 A @ 120 V 60 Hz

• Power and current: 157 W, 0.7 A @ 230 V 50 Hz

• Weight: 12.6 lbs (5.7 kg)

• Size: 9.3 x 8.1 x 11.3 in (236 x 205 x 287 mm)

• Approvals: CE
