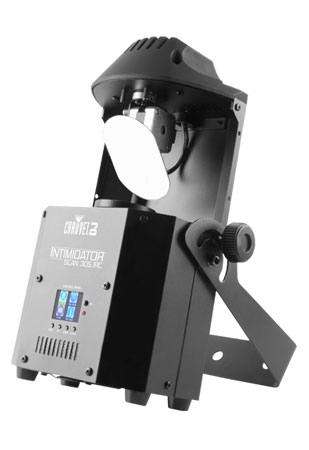

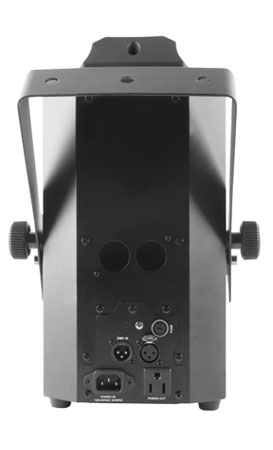

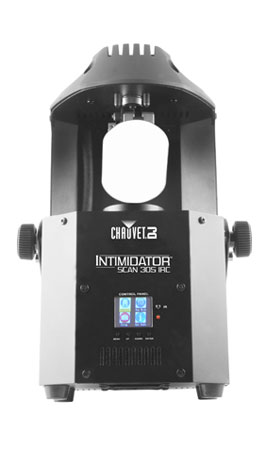

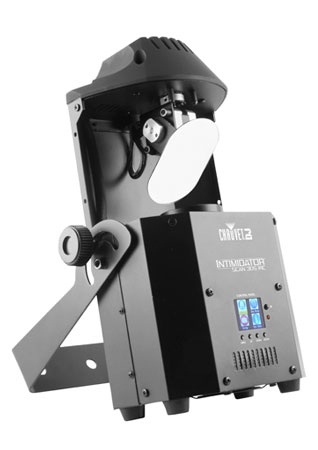

Chauvet DJ Intimidator Scan 305 IRC
The Intimidator Scan 305 IRC is a compact LED scanner with a 60 W light source that shines through any environment. Its crisp 3-facet prism allows you to cover larger areas when you split the beam and non-DMX operation is convenient and easy with the optional IRC-6 remote. Link up to 4 fixtures to create eye-catching synchronized shows in automated, sound-active or master/slave modes. Minimize programming time by using the built in movement macros and move-in-black features. Achieve flicker-free video operation with high frequency LED dimming and save time running cables and extension cords by power-linking multiple units together. The Intimidator Scan 305 IRC fits best in the CHS-40 VIP Gear Bag.
Intimidator Scan 305 IRC Features:

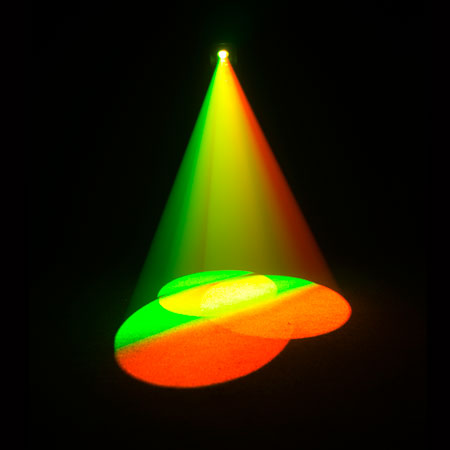

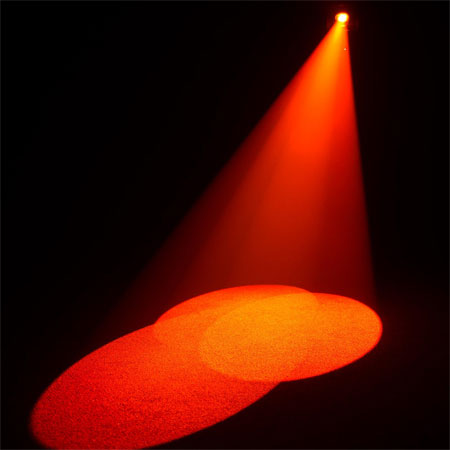

- Split the beam and cover larger areas with the crisp, 3-facet prism.
- Convenient, wireless non-DMX control using the optional IRC-6 remote.
- Minimize programming time using built-in movement macros & move features.
- Achieve flicker-free video operation with high-frequency LED dimming.
- Save time running cables and extension cords by power linking multiple units.
- Fits best in the CHS-40 VIP Gear Bag.
- Link up to 4 fixtures to create eye-catching synchronized shows in Automated, Sound or Master/Slave modes.

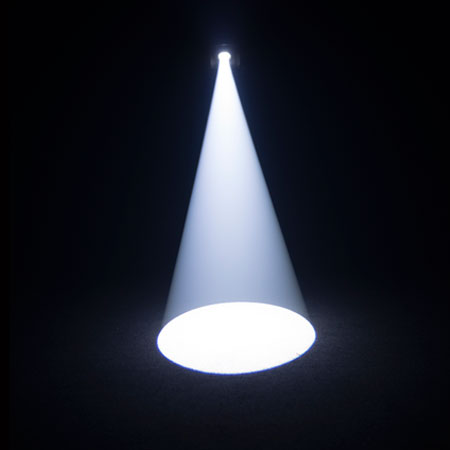

- Compact LED scanner with a 60 W light source shines through any environment.

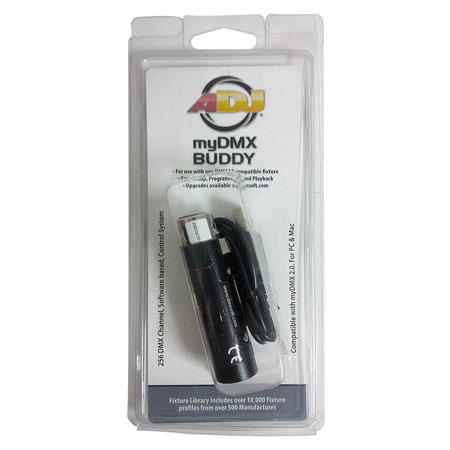

American DJ myDMX Buddy USB/DMX Dongle & DMX Software
myDMX Buddy is a scaled down, entry level version of myDMX 2.0. Out of the package, myDMX software will run in limited mode (No 3D visualizer, Easy Remote or Midi features). The dongle plugs directly into a 3-pin DMX input on your lighting fixture. The dongle connects with a computer via a USB connection.
Intimidator Scan 305 IRC Specifications
- DMX Channels: 7 or 11
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 180°/90°
- Colors: 8 + white, split colors, continuous scroll at variable speeds

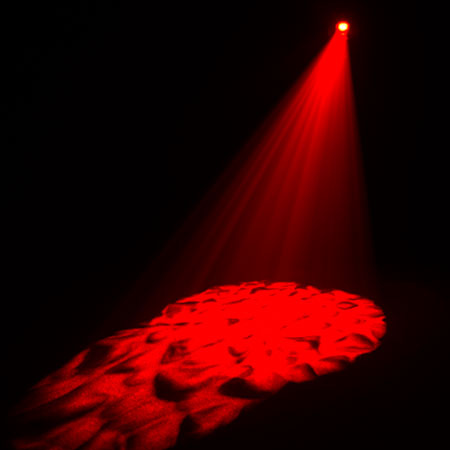

- Gobos: 7 + open (5 metal + 2 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
- Gobo Size: 23.9mm outside, 20.5 mm image, 1 mm max thickness
- Light Source: 1 (white) 60 W (2.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 35 Hz
- PWM Frequency: 1,200 Hz
- Beam Angle: 15°
- Illuminance: 9,110 lux @ 2 m
- Power Linking: 5 units @ 120 V; 10 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 104 W, 1.5 A @ 120 V, 60 Hz
- Power and Current: 102 W, 0.8 A @ 230 V, 50 Hz
- Weight: 10 lb (4.6 kg)
- Size: 16.9 x 10 x 5.7 in (430 x 255 x 147 mm)
- Optional Controllers: IRC-6
- Approvals: CE
American DJ myDMX Buddy Specifications
- For use with any DMX512 compatible fixture
- Easy Setup, Programming and Playback
- Fixture Library Includes over 10,000 Fixture profiles from over 500 Manufactures
- Compatible with myDMX 2.0. For PC & Mac
- 256 DMX Channel, Software based, Control System
- Compatible with Mac OS and Windows, 32 & 64-bit (XP, Vista, 7 & 8)
- Dimensions (LxW): 3" x 1"/ 75 x 18mm
- 1-Year Limited Warranty
What's in the Box

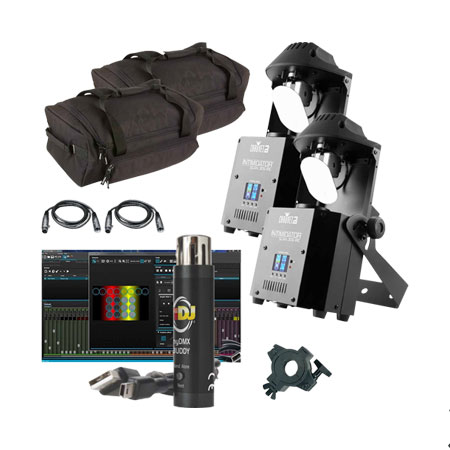

This Package Includes:
- (2) Chauvet DJ Intimidator Scan 305 IRC
- (1) American DJ myDMX Buddy USB/DMX Dongle & DMX Software
- (2) 10FT Sure-Fit DMX Connecting Cables
- (2) Universal O-Clamps With Snug Fit Grip
- (2) Properly Fitting & Durable Protective Transport Cases
Each Intimidator Scan 305 IRC Box Includes:
- (1) Chauvet DJ Intimidator Scan 305 IRC
- (1) Power Cord
- (1) Warranty Card
- (1) Quick Reference Guide
The ADJ myDMX Buddy Box Includes:
- (1) American DJ myDMX Buddy USB/DMX Dongle
- (1) USB Cable
- (1) Packaging Insert Card
