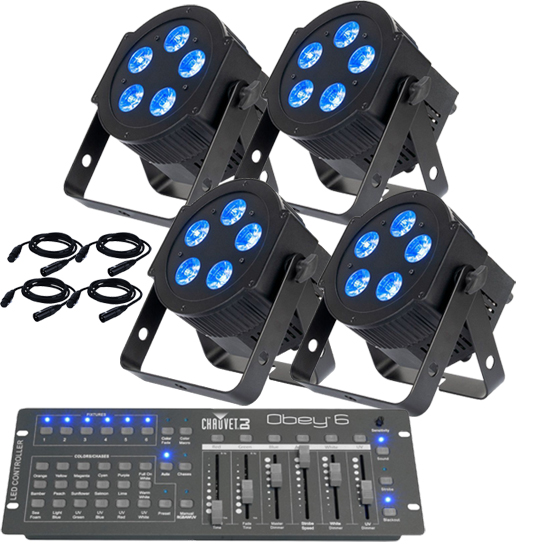

ADJ 5PX HEX Obey 6 System

Features

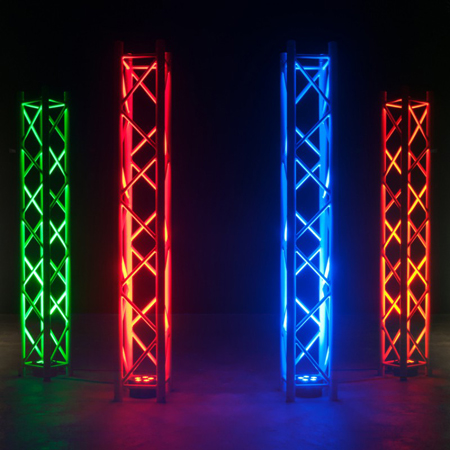

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

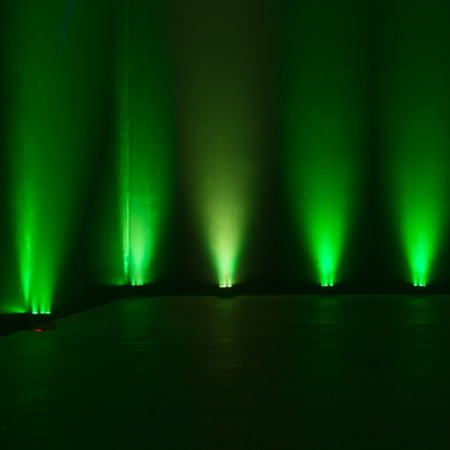

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground
• Flicker Free operation (No flickering on camera)
• Smooth RGBAW + UV color mixing
• All metal black exterior housing

Specification

• Optical
  • Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
  • LED life rated at approximately 50,000 hrs.
  • Beam angle: 30-degree
• Control
  • 4-button, DMX digital display on rear panel
  • Compatible with Dotz Par RF wireless remote control (sold separately)
  • 7 Built-In Programs
  • 63 built-in Color Macros
  • 4 DMX Modes: 6, 7, 8, & 12 channel
  • 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
• Connections:
  • Data linkable via 3-pin or 5-pin DMX connections
  • Daisy chain power from powerCON In/Out connection
  • With Wired Digital Communication Network
• Electrical:
  • Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON In/Out)
• Dimensions / Weight:
• Dimensions (LxWxH): 4.5" x 8.25" x 8.75"/ 114 x 208 x 222mm
• Weight: 5.8 lbs. / 2.6 kgs
• Shipping Weight: 8 lbs
• Shipping Dimensions: 12 x 10 x 8 in

Obey 6

Obey™ 6 is a universal, compact controller capable of controlling up to 6 channels per fixture. It allows you to control effects by simultaneously operating each fixture in different playback modes, with variable fade times. Increase flexibility with playback options that include manual RGBAW+UV, automated and sound-activated mode. Increase control with adjustable audio sensitivity, strobe, and blackout effects.

• Universal compact DMX-512 controller ideal for LED fixtures
• Controls up to 6 fixtures individually with up to 6 channels per fixture
• Pre-set color buttons let you quickly and effortlessly select colors on the fly
• Quick Color buttons allow you to easily add layered effects
• Increase effects by simultaneously operating each fixture in different playback modes with variable fade times
• Increase flexibility with playback options that include manual RGBAW+UV, automated and sound-activated mode; playback options include
• Preset: 24 built-in colors
• Chases: 18 manually triggered automated programs
• Color macro: manually scroll through the color spectrum
• Color fade: automatically scroll through the color spectrum
• Color fade delay: automatically scroll through the color spectrum with a small delay to each fixture
• Auto: randomly selects different colors for each fixture
• Increase control with adjustable audio sensitivity, strobe, and blackout effects
• Fits best in the CHS-25 VIP Gear Bag
• DMX Channels: 36
• DMX Connectors: 3-pin XLR
• Input Voltage: 9 VDC, (external power supply: 100 to 240 VAC, 50/60 Hz)
• Weight: 3.8 lb (1.8 kg)
• Dimensions: 15.5 x 5.5 x 1.9 in (393 x 140 x 47 mm)
• Approvals: CE
