Roland DJ-99 2-Channel DJ Controller

TT-99

3-Speed Turntable

• 3-Speed Turntable of 909 Celebration Special Paint
• Direct-Drive system for stable torque.
• Built-in phono equalizer.
• DJ-99
• 2ch DJ Mixer
• 2ch DJ Mixer of 909 Celebration Special Paint
• Pro-grade mini innoFADER crossfader.
• Dedicated DVS output.
• 3-band equalizer for each input.

Features

Roland dj-99 : 2ch dj mixer

• Nominal input level (output master 0 dbu)
• Ch1, ch2 cd (l, r) : -13 dbu
• Ch1, ch2 ln (l, r) : -17 dbu
• Ch1, ch2 ph (l, r) : -61 dbu
• Ch1, ch2 dvs return (l, r) : -13 dbu
• Mic in : -40 dbu

Maximum input level

• Ch1, ch2 cd (l, r) : 6 vrms
• Ch1, ch2 ln (l, r) : 6 vrms
• Ch1, ch2 ph (l, r) : 0.04 vrms
• Ch1, ch2 dvs return (l, r) : 6 vrms

Mic in : 0.6 vrms

• Maximum output level (1 khz, typ.)
• Output master (l, r) : +15 dbu
• Output booth (l, r) : +15 dbu
• Phones : 31 mw

Recommended load impedance

• Phones : 32 ohms
• Frequency response
• Ch1, ch2 cd, ln, dvs return : 20 hz--20 khz (+1/-2 db)
• Mic in : 20 hz--20 khz (+1/-3 db)

Noise level

• Ch1, ch2 ln (l, r) --> output master : 0.6 mvrms or less
• Ch1, ch2 ph (l, r) --> output master : 6 mvrms or less
• Trim level : center, 1 k ohms terminated, master level : max, ihf-a, typ.

Distortion

• Ch1, ch2 cd (l, r) : 0.2% or less
• Ch1, ch2 ln (l, r) : 0.2 % or less

Channel eq (typ.)

• Hi : 10 khz +12 db-- -12 db
• Mid : 980 hz +12 db-- -28 db
• Low : 100 hz +12 db-- -28 db

Controller

• Ch1, ch2 input selectors
• Ch1, ch2 mic level knobs
• Ch1, ch2 trim level knobs
• Ch1, ch2 channel eq knobs hi
• Ch1, ch2 channel eq knobs mid
• Ch1, ch2 channel eq knobs low
• Ch1, ch2 channel fader curve adjustment knobs
• Ch1, ch2 channel fader reverse switches
• Ch1, ch2 cue buttons
• Ch1, ch2 channel faders
• Ch1, ch2 ln/ph selectors
• Crossfader

Pfl/master selector

• Phones level knob
• Master level knob
• Booth level knob
• Crossfader curve adjustment knob
• Crossfader reverse switch
• Headphones monitoring selector

Indicator

• Power indicator
• Pfl/master level meter
• Ch1, ch2 channel fader reverse indicators
• Ch1, ch2 cue indicators
• Crossfader reverse indicator

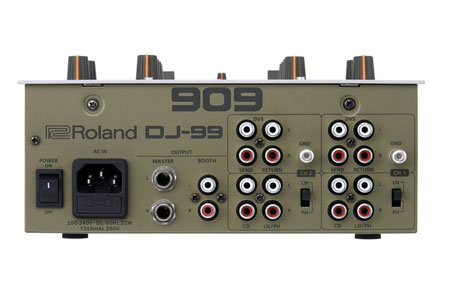

Connectors

Mic input jack : 1/4-inch phone type
• Phones output jacks : stereo 1/4-inch phone type, stereo miniature phone type
• Ch1, ch2 cd input jacks (l, r) : rca phono type
• Ch1, ch2 ln/ph input jacks (l, r) : rca phono type
• Ch1, ch2 dvs send jacks (l, r) : rca phono type
• Ch1, ch2 dvs return jacks (l, r) : rca phono type
• Ch1, ch2 gnd terminals
• Master output jacks (l, r) : 1/4-inch phone type
• Booth output jacks (l, r) : rca phono type
• Power switch
• Power connector
• Fuse holder

Power consumption

• 22 w

Fuse rating

• T315mal250v (5 ø x 20 mm)

Dimensions

• 224 (w) x 306 (d) x 104 (h) mm
• 8-7/8 (w) x 12-1/16 (d) x 4-1/8 (h) inches
