• 4+1-channel pro DSP club mixer with USB terminal
• Two Full Duplex USB ports facilitating feeding and output of digital sound signals
• USB signals can be played via mixer and recorded on a computer simultaneously
• Freely assignable DSP effect unit (pan, trans, delay, echo, flanger, filter, phase, pitch shifter) with time and level parameters
• Manual beat assignment of effects
• Automatic beatcounter for all channels (dual 3-digit display)
• Excellent sound quality due to Premium Sound Architecture (PSA)
• Freely assignable Long Life TCT crossfader (45 mm) with adjustable curve
• Crossfader-start play
• Long Life linefader (60 mm) with adjustable curve, reversible
• Kill unit for both crossfader channels with flash function
• Effect send/return for all channels
• Extra LED for cue signal per channel
• 3-fold equalizer for channels 1 - 4 and mic 2
• 3-fold equalizer and talkover for mic 1
• 1-fold equalizer and mono/stereo switch for headphones
• Master output mono compatible, with balance

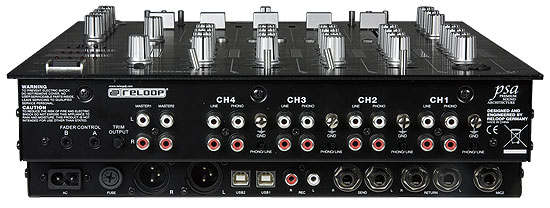

• Symmeteric (XLR) and asymmetric (RCA) outputsInput: 4x phono, 4(+4)x line, 1x return, 2x mic, 2x USB
• Outputs: 2x master, 1x send, 1x rec, 2x USB
• EQ range: +10/-40 dB
• S/N ratio: -80 dB
• Distortion: 0.01%
• Dimensions: 320 x 357 x 87 mm
• Weight: 5.6 kg
• Incl. demo software Traktor 3

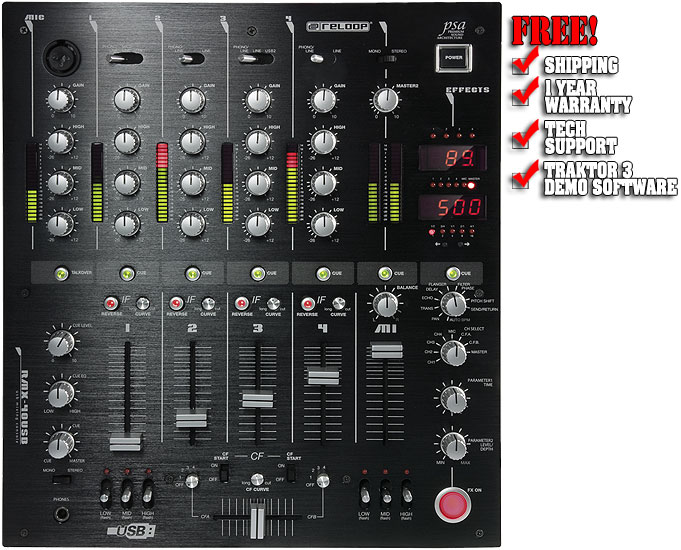

4 + 1 CHANNEL CLUB MIXER WITH USB SOUND CARD
With the USB edition of the RMX-40 DSP Reloop has created a premium interface between analogue skills and digital crativity. Thanks to the two "Full Duplex" USB ports two USB-supported signals can be fed from any PC or Mac as a sound source into the console; at the same time two output signals can be recorded with the computer – preparing the DJ for the future.
