PreSonus StudioLive 32 Series III Digital Mixer

Description

PreSonus StudioLive 32 Series III Digital Mixer - 40-Input with Motorized Faders :

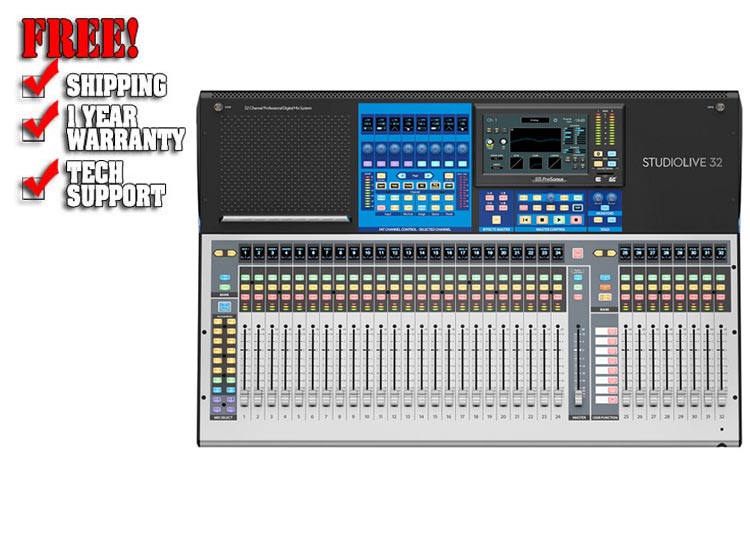

The PreSonus StudioLive 32 Series III Digital Mixer is designed for live sound reinforcement, live recording, and studio recording applications. In its third released version, the mixer is an integrated hardware and software system with 33 touch-sensitive, motorized faders and 33 recallable XMAX preamps. The redesigned digital "Fat Channel" was re-engineered from the ground up and features vintage-style EQs and compressors on every channel, recallable scene presets, virtual sound check, remote control using a Windows computer, Mac, or iPad, remote monitor mixing using an iPhone or iPod Touch, and all the software you need for live mixing, recording, and distributing your music online.

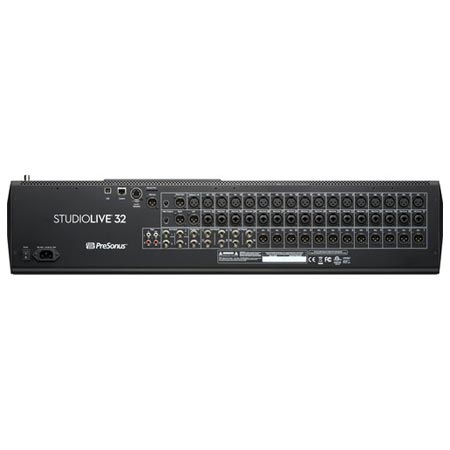

The unit features 32 input channels with 16 +48V phantom powered XLR XMAX microphone preamplifiers and 16 mic/line inputs via XLR-1/4 combo jacks. Additional inputs include four 1/4 aux inputs and a dedicated XLR talkback mic input with phantom power. For outputs the mixer includes a balanced XLR mono output, a left and right pair of balanced stereo XLR main outputs, and 12 XLR mix outputs, as well as four 1/4 mix outputs, four 1/4 sub outputs, and a pair of 1/4" monitor outputs. A digital output of the main mix is available via XLR AES/EBU. Additionally, a pair of RCA tape inputs and outputs are provided.

For effects, the mixer features 32-bit floating-point processing with 4-band parametric EQs on inputs, 6-band parametric EQ on outputs, eighteen 31-band graphic EQs, high-pass filters, limiters, compressors, expander/gates with key listen and key filter, reverbs, and delays.

For mixing, each channel features a touch-sensitive, motorized faders with choice of 1-to-1 workflow, which assigns all channels to the top layer, with one fader per input channel or a split-layer workflow, which splits the faders between inputs and outputs, including DCAs and aux outputs. The RGB select buttons offer user assignable colors, while user-assignable buttons are provided for mute groups, scenes and more. The new Fat Channel control offer 8 scribble strips, encoders, and multi-color buttons with a customizable user layer and 7" color touchscreen.

The mixer comes with Active Integration Virtual StudioLive advanced librarian/editor control software for a Windows comp General Controls

• 33 touch-sensitive, motorized faders with choice of:
• 1-to-1 workflow?assign all channels to the top layer, with one fader per input channel
• Split-layer workflow?split the faders between inputs and outputs, including DCAs and Aux outputs
• RGB Select buttons with user-assignable colors
• Transport control
• 8 user-assignable buttons for mute groups, scenes, and more
• All-new Fat Channel controls including
• 8 scribble strips, encoders, and multicolor buttons
• Customizable user layer
• 7" color touchscreen

Inputs and Outputs

• 40 total inputs
• 32 Channel Inputs: 16 mic, 16 mic/line
• One XLR Talkback mic input with recallable XMAX Class A preamp
• Two stereo Aux inputs
• 16 FlexMix Outputs: 12 XLR, Four balanced TRS
• Four TRS subgroup outputs
• Unbalanced stereo (RCA) tape input and output
• Bluetooth 4.1 wireless tape input
• Stereo AES/EBU digital output
• Two XLR (L/R) Main outputs
• XLR Main summed mono output
• Two TRS monitor outputs
• Stereo headphone output

Channels and Buses

3
• 2 input channels with recallable XMAX Class A mic preamps
• Two stereo aux inputs
• 26 Buses:
• 16 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
• Four dedicated subgroups
• Four internal effects sends
• Stereo main bus
• 24 Filter DCAs for easily and flexibly controlling groups of channels

Networking Connections

• 1 Ethernet control network port
• Dynamic, Self-Assigned, and Manual IP address modes
• 1 Ethercon AVB audio network port
• Complete ecosystem of AVB solutions, including stageboxes and personal monitor mixers (available soon)

Recording

• Onboard 38x38 SD recorder (using Capture)
• 38x38 USB recording interface
• 55x55 AVB recording interface

Signal Processing

• Intuitive Fat Channel signal processing on every channel with:
• A/B settings comparison
• High-pass filter and polarity reverse
• Gate/expander with sidechain
• Compressor with sidechain
• 4-band parametric EQ on inputs
• 6-band parametric EQ on outputs
• Limiter
• Delay on every input
• Delay on every output
• Professionally programmed library of presets
• Vintage EQ and compressor models available on every input
• Passive EQ
• Vintage EQ
• Tube compressor
• FET compressor
• Eight 31-band graphic EQs
• Four internal effects buses: combination of reverbs and delays with modern and vintage options
• Built-in real-time analyzer and signal generator

Metering/Displays

• 7" color touchscreen
• Input meter on every channel
• Full-size Fat Channel metering
• Input meter
• Gate gain reduction meter
• Compressor gain reduction meter
• Full-size stereo Main output meters

Scenes and Presets

• Create, save, and edit up to 100 scenes
• Scene management with:
• Scene Safe?prevents a scene change from affecting designated "safe" channels
• Create, save, and edit channel settings and copy/paste between channels
• Advanced channel preset options can save and recall:
• Channel type and name
• Input settings (preamp, +48V phantom power, polarity, pan)
• Fat Channel A & B settings
• Bus assignments
• Aux and effects send levels and pan
• Select button color
• 8 Quick Scenes

Digital

• Studio-quality converters with 115 dB dynamic range 48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)

Actively Integrated Software

• UC Surface touch control software for Mac, Windows, and iPad
• Studio One Professional digital audio workstation software for Mac and Windows
• Capture multitrack recording software for Mac and Windows
• QMix-UC aux-control software for iOS and Android available free from Apple App Store, Google Play, and Amazon App Store
