PreSonus StudioLive 16.0.2 Performance & Recording Digital Mixer:

Description

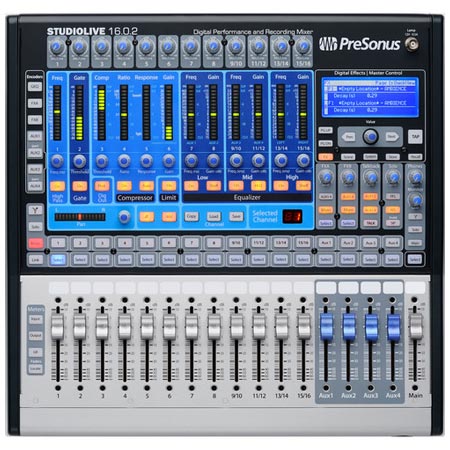

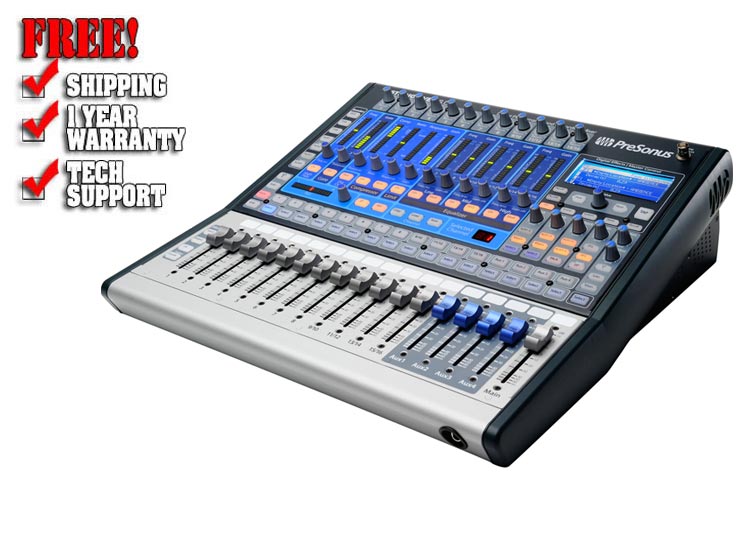

The PreSonus StudioLive 16.0.2 Performance & Recording Digital Mixer is a compact yet powerful digital mixer with a 16 x 16 FireWire interface for direct recording with a Mac or Windows based DAW software. Its small 16 x 15.5" (406.4 x 393.7mm) frame features 16 inputs with 8 mono mic/line balanced inputs and 4 stereo line input channels, all fitted with 60mm precision faders. All mono input channels feature PreSonus' high-headroom, XMAX class-A mic preamplifiers, for maximum gain, low noise floor, and detailed audio quality.

The StudioLive 16.0.2 delivers the gamut of DSP processing including Gate, Compression, channel EQ, 31-band graphic EQ, and 2 stereo 32-bit digital effects processors with customizable reverb and delay presets. There are 2 dedicated effects buses and 4 auxiliary buses (pre/post-fader assignable) for flexible signal routing. Flexible remote control features and its compact design, allow for a variety of portable applications.
The StudioLive 16.0.2 is bundled with recording software and StudioLive Remote software is available for free download at the Apple App Store. StudioLive Remote enables full-duplex remote control with an iPad, iPhone or laptop, making it an ideal solution for use on stage, live sound reinforcement, remote recording and more.

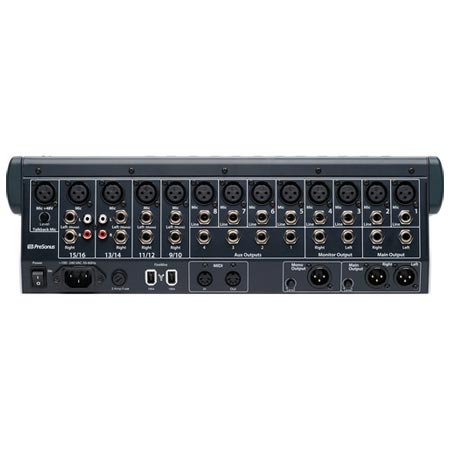

8 Mono Mic/Line Channel Inputs

• High-headroom Class A XMAX mic preamplifier
• XLR mic and balanced 1/4" line inputs
• 60mm precision fader

4 Stereo Line Channel Inputs

High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
• XLR mic inputs (Ch. 9, 11, 13, and 15)
• Balanced 1/4" line inputs (Ch. 9-16)
• Unbalanced RCA line inputs (Ch. 13-16)
• 60mm precision fader (4 stereo)

Fat Channel Signal Processing on all Channels and Buses

• 3-band semi-parametric EQ (individual band on/off)
• Full-featured compressor
• Standard downward expander
• Limiter
• Phase reverse (12 mic preamplifiers only)
• Pan with dedicated 15-LED display
• Stereo link for input channels and aux buses
• High-pass filter

16-In/16-Out FireWire Recording Interface (24-bit/44.1 kHz and 48 kHz)

• Compatible with most audio software via ASIO, Windows Audio, Core Audio

Software Bundle for Mac & Windows

• PreSonus Studio One Artist digital audio workstation
• PreSonus Capture live-recording software
• PreSonus Universal Control with Virtual StudioLive bidirectional mixer-control software

MIDI Control Mode Provides Control Over

• Scene and FX Preset recall
• Main Volume, FXA, and FXB output levels
• FXA and FXB assign/unassign to Mains

Features:

• 4 Auxiliary buses (pre/post-fader send)
• 2 Internal FX buses
• 2 stereo 32-bit digital effects processors with customizable reverb and delay presets
• One 31-band stereo graphic EQ (on main outputs only)
• Scene store and recall
• Settings can be copied among channels and buses and saved as user presets
• Lockout mode protects your settings from meddlers and accidents
• Free StudioLive Remote iPad wireless-control software available at the Apple App Store

QMix

W
• ith free PreSonus QMix software, up to ten musicians can simultaneously control their StudioLive monitor (aux) mixes using an iPhone or iPod touch - four different mixes with a 16.0.2
• QMix works a lot like SL Remote - one or more iPhones network wirelessly with a Mac or PC, enabling QMix to remote-control Virtual StudioLive, which in turn controls one or more FireWire-connected StudioLive mixers
• When each iPhone connects to the new network, its copy of QMix will discover all StudioLive mixers on the network - in this way, each musician can quickly and easily create an aux mix that includes all mixer channels
• In the Virtual StudioLive portion of Universal Control, permissions can be set so that each iPhone user can only control one specified mix (or all mixes) - band mates can't mess with each other's monitors
• Provides wireless control over aux mixes in Virtual StudioLive and hence, over aux mixes in any StudioLive-series digital mixer
• Portrait view shows Wheel of Me, where you can select multiple "Me" channels and control their levels simultaneously
• Landscape view provides control of all aux-send levels and panning (for linked auxes)
• Aux mixes can be named (up to 10 characters)
• Tap tempo for delay effects
• Control the auxs on any StudioLive mixer on the wireless network from one iPhone or iPod touch
• Multiple iPhones and iPod touches can control the same StudioLive
• Set permissions in VSL so each iPhone and iPod touch can control only one specific aux mix
• Available free from the Apple App Store

PreSonus Exchange

• Registered users of PreSonus' Web-connected Studio One DAW can easily and conveniently swap presets, effects chains, MIDI files, and soundsets, without leaving the program
• Users can upload to Exchange using a Web portal and can access online files from directly within the searchable Studio One 2 file browser, including audio preview
• Just drag-and-drop from the browser, and Exchange automatically downloads the resources and loads them into your Song
• Exchange users will be able to rate and comment on shared resources, so you can quickly identify what fellow users like and can share your experiences - PreSonus has implemented an approval process to protect users from problematic downloads.
• PreSonus Exchange is a free service for registered Studio One users with licensed accounts and works with Studio One Artist 2, Producer 2, and Professional 2
• Along with Exchange, Soundset Builder is a free extension to Studio One that can be downloaded via Exchange
• With Soundset Builder, any folder in the file browser can be made into a Studio One soundset, complete with a name, description, icon, and URL
• An excellent way to create and share packages of content, including audio loops, MIDI loops, presets, and more Soundset Builder installs into Studio One quickly and easily by drag-and-drop
