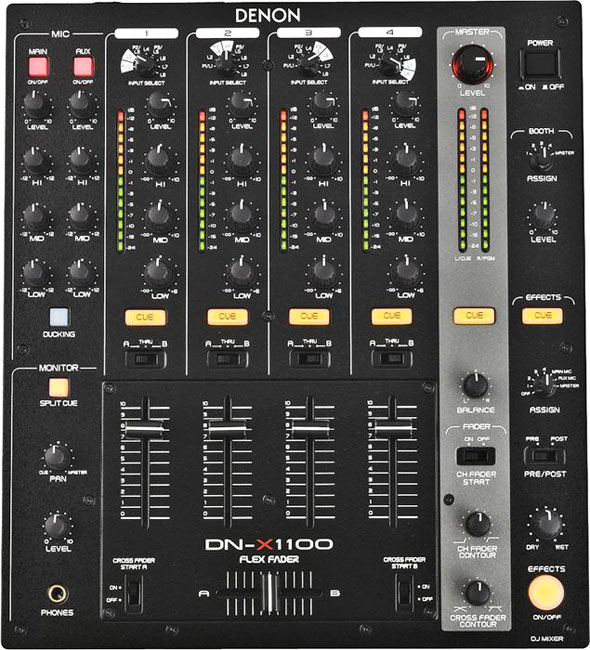

A perfect companion to any tabletop or rackmount player system, the Denon DN-X1100 is a full-featured 4-channel matrix mixer that further cements Denon's position as an industry leader in manufacturing DJ equipment for the working professional. It provides matrix input assignment which allows you to freely assign any of the 8 input sources to any channel or even multiple channels. Both the Flex Fader 45mm VCA crossfader and 4 smooth 60mm VCA channel faders have contour adjust so you can adjust the tension freely. You can get smoother transitions between fades and thanks to independent channel PFL meters that let you pre-adjust in advance all input levels to match the gain levels. Other features on the DN-X1100 DJ mixer include an independent 3-band EQ with full kills, independent CUE system on all channels, external Send/Return control, 2 independent mics with 3-band EQ (main mic and aux mix), as well as split/cue headphone monitor with PFL metering.

Denon DN-X1100 4-Channel DJ Mixer Specifications:

• PDF Manual
• Dimensions: 12.0"W x 14"H x 6.9"D (without feet)
• Weight: 13.5lb.
• Power supply: AC120V ±10%, 60Hz
• Power consumption: 17W

  Audio Section
• Input Level & Impedance:
• 8-Line: -14dBV (200mV) 50kOhms
• 3-Phono: -50dBV (3.0mV) 50kOhms
• Effect (Return) -14dBV (200mV) 50kOhms
• Main Mic: -54dBV (2.0mV) 10kOhms
• Aux Mic: -60dBV (1.0mV) 10kOhms
• Output level & Impedance:
• Balanced: 4dBm (1.23V) 600kOhms
• Unbalanced: 0dBV (1.0V) 1kOhms
• Booth/Zone (Balanced): 4dBm (1.23V) 600ohms load
• Rec (RCA): -10dBV (316mV) 1kOhms
• Effect (Send): -14dBV (200mV) 1kOhms
• Subwoofer/Lighiting: 2dBm (975mV) 600ohms
• Headphone: 0dBV (1.0V) 32ohms
• Frequency Response:
• Line: 20 to 20 kHz ±2dB
• Phono: 20 to 20 kHz RIAA ±2dB
• Mic: 20 to 20kHz ±dB
• Signal-to-Noise ratio:
• Line: 82dB (0dBm, 1kHz, EQ flat)
• Phono: 75dB (0dBm, 1kHz, EQ flat)
• Main Mic: 65dB (0dBm, 1kHz, EQ flat)
• Total harmonic distortion rate:
• Line: Below 0.05%
• Phono: Below 0.05%
• Cross talk: Over 70dB
• Channel equalizer:
• Hi: +10dB, -35dB (16kHz)
• Mid: +10dB, -35dB (1kHz)
• Low: +6dB, -35dB (60Hz)
• Microphone equalizer:
• Hi: +12dB, -12dB (10kHz)
• Mid: +12dB, -12dB (1kHz)
• Low: +12dB, -12dB (100Hz)

Denon DN-X1100 4-Channel DJ Mixer Features:

• Matrix input assignment: The 8 input sources are freely assignable to any channel or even multiple channels
• 8 Line/3 Phono, switchable
• 4 smooth 60mm VCA channel faders w/contour adjust
• Flex Fader 45mm VCA crossfader w/contour adjust
• Independent channel PFL meters means all input levels can be pre-adjusted in advance to match the gain levels, insuring a smooth transition between fades
• Independent 3-band EQ (High-Mid-Low) w/full kills
• Independent CUE system (all channels)
• Booth output assign selector lets you pre-monitor any channel, including Master, in the same manner as you would with your headphones, with volume control
• External Send/Return Control: Multi Channel Assignable, Effect On/Off, Effect Pre & Post switch, Effect Dry/Wet Knob, Effect Cueing
• Independent Channel A-B Post Switch (crossfader)
• Powerful & clean headphone output
• Fader start (all channels)
• Crossfader and Channel Fader-Start Trigger is compatible with all Denon DJ CD/MP3/Media players
• 2 independent mics w/3-band EQ: Main Mic (Neutrik combo terminal), Aux Mix (TRS 1/4" terminal)
• Mic ducking attenuation w/level control
• Split/cue headphone monitor w/PFL metering
• Master Output: -10dB Attenuation Switch
• Master Output: Stereo/Mono Switch
• Master Output: Balanced XLR & RCA/Unbalanced
• Record Out: RCA/Unbalanced
• Booth Output: Balanced TRS 1/4"
• Power Switch Guard on Top Panel
• Gold Plated connectors
• Detachable power cord
