• Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio
• 4 new state-of-the-art, studio-grade IMP “Invisible” Mic Preamps with:
• - 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
• - Ultra-wide 60 dB gain range
• - Lowest possible distortion 0.0007% (20 Hz - 20 kHz)
• Revolutionary, patent-pending FBQ Feedback Detection System instantly reveals critical frequencies
• Integrated 24-bit digital stereo FX processor with 99 great-sounding VIRTUALIZER presets including reverb, delay, chorus, compressor, tube distortion, vinylizer and more plus 1 kHz test tone generator
• Voice Canceller function on dedicated CD/tape return channel for easy-to-use sing-along applications
• Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
• 7-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
• 4 fully equipped stereo input channels featuring 2 additional mic inputs on channels 5/6 and 7/8, 3-band EQ and input trim control
• State-of-the-art 4580 operational amplifiers provide lowest noise and distortion—better than 4560 op amps
• Inserts on each mono channel for flexible connection of outboard equipment
• 12 high-headroom line inputs
• Standby-switch mutes all mic channels during breaks while background music is provided via CD/tape or line inputs
• State-of-the-art 4580 operational amplifiers provide lowest noise and distortion—better than 4560 op amps
• 2 aux sends per channel: 1 pre fader for monitoring, 1 post fader (for internal FX and/or as external send)
• Clip indication and gain level set LEDs plus mute switches for each channel allow fast and accurate level setting
• 2 multi-functional stereo aux returns
• Balanced main mix outputs with gold-plated XLR connectors, headphone/control room output and stereo tape outputs
• Switchable +48 V phantom power for condenser microphones
• Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
• Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy saving
• Extremely rugged steel construction ensures long life even under most demanding conditions
• Rack mount brackets included
• Conceived and designed by BEHRINGER Germany

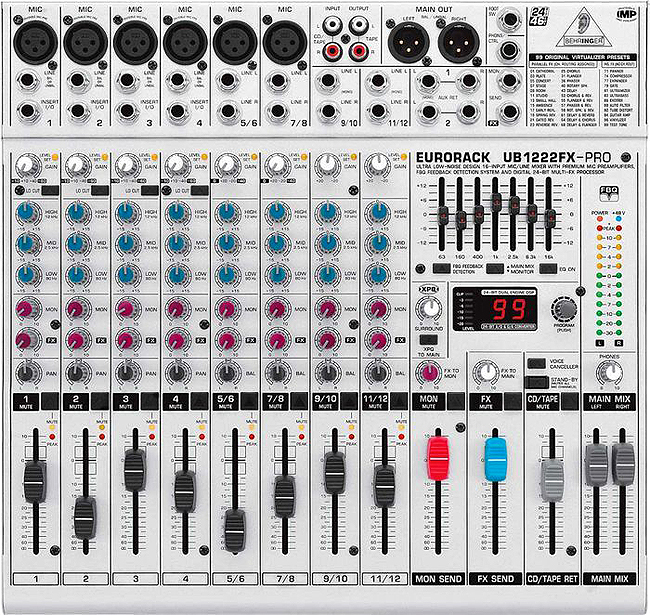

This 12-channel (4 mono plus 4 stereo) mic/line mixer features our highly acclaimed IMP “Invisible” Mic Preamps, ULN Ultra Low Noise circuitry plus our new FBQ Feedback Detection System, a 24-bit multi-FX processor and an auto-range power supply.

Highlights include four state-of-the-art, studio-grade IMP “Invisible” Mic Preamps with state-of-the-art 4580 operational amplifiers that provide the lowest noise and distortion plus ultra-high 130 dB dynamic range and the revolutionary, patent-pending FBQ Feedback Detection System that instantly displays the feedback frequencies via the LEDs of the built-in 7-band stereo graphic EQ. Plus, there is an integrated 24-bit digital stereo FX processor with 99 presets of VIRTUALIZER fame (including reverbs, delays, chorus, compression, tube distortion, vinylizer and more), a breathtaking XPQ 3D stereo surround effect for an enhanced stereo image and even a Voice Canceller for karaoke fans.

Its full-featured channel strips include input trim controls with level-set and clip LEDs, ultra-musical 3-band EQs with low cut filter, monitor and FX sends, mute switch plus high-quality logarithmic faders for exact signal level control. The 4 mono channels have balanced low-impedance mic inputs with state-of-the-art IMP “Invisible” Mic Preamps, switchable +48 V phantom power for condenser microphones, balanced high-impedance line inputs for direct connection of line sources or high-output instruments, inserts for connecting external processors and a pan control. Stereo channels include stereo line inputs, additional mono mic inputs on channels 5/6 and 7/8 and a balance control.
