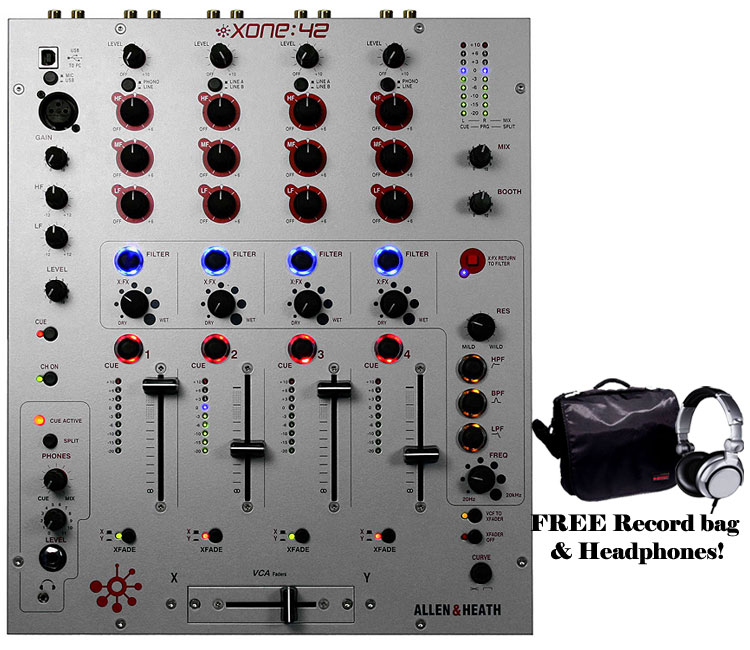

The Xone:42 is a new compact 4 -channel DJ mixer with USB audio interface, designed for DJ’s of all abilities and experience from top pro DJ’s to bedroom enthusiasts who want a compact quality mixer with pro features. Integral to the mixer’s design is a new feature – the ‘X-FX‘ control - allowing signal to be sent to external FX, and returned to be combined with the now legendary Xone VCF filter system. There’s even a USB port which allows easy connection to a computer and integration of digital media, which can be used to play back music files from a laptop and to record mixes, or used with software as a digital DJ effects unit.

"Designed to seamlessly interface with current leading edge DJ technology, the Xone:42 has an ergonomic, intuitive layout, making it one of the easiest to use hi-tech mix tools around," comments Xone Designer, Andy Rigby-Jones.

The Xone:42 feature set is built around 4 dual-input stereo channels; channels 1 and 4 are phono/line, while channels 2 and 3 are line/line. All four channels have a powerful +6dB to total kill 3-band EQ, a 9-segment 3-colour bar meter, gain control, and 60mm VCA faders with illuminated X/Y crossfader selection. Xone's legendary Voltage Control Filter is included on each channel via illuminated assignment switches, with selectable filter type, resonance, and frequency controls.

The mixer sports a new and original feature the X-FX system - enabling an external effects processor to be easily interfaced. A single knob controls the proportion of the channel signal sent to the effects unit, from 0 to 100%, and the affected signal is returned to the main mix, or can be routed through the filter.

The Xone:42 incorporates a USB audio interface for easy connection to a computer and integration of digital media. It can be used to play back music files from a laptop and to record mixes from the Xone:42, or, when used with appropriate software, as a digital DJ effects unit that can be patched into the X-FX system. The USB input combines with an XLR microphone input to provide an additional channel with two band EQ and rotary level control.

The mixer also features a 45mm VCA crossfader with curve control, and a powerful monitoring section with split cue control, mix to cue, two headphone outputs (1/4 and 3.5mm), dedicated booth output, and balanced main mix outputs on XLR.

• 4 dual stereo channels Channels 1 & 4 have phono (RCA RIAA turntable) inputs while channels 2 and 3 are line/line
• X-FX send to external FX Allows signal to be sent to external FX, and returned to be combined with VCF controls
• 3 band EQ All channels have +6dB to total kill EQ
• Power supply High performance internal switch-mode psu
• 2 headphone outputs 1/4” and 3.5mm
• VCA Crossfader With curve control from sharp attack for scratching to smooth attack for house style
• VCF filter with independent in/out, resonance & frequency controls
• USB 1.1 port One stereo up to PC and one stereo back
• Microphone input On XLR, with 2-band EQ and level control
• Rack ears Optional rack ears available
• PDF Manual

Allen and Heath has made an addition to the leading Xone DJ range, with the launch of the Xone:42 high performance 4-channel DJ mixer with USB audio interface.

"Designed to seamlessly interface with current leading edge DJ technology, the Xone:42 has an ergonomic, intuitive layout, making it one of the easiest to use hi-tech mix tools around," comments Xone Designer, Andy Rigby-Jones.

The Xone:42's feature set is built around 4 dual-input stereo channels; channels 1 and 4 are phono/line, while channels 2 and 3 are line/line. All four channels have a powerful +6dB to total kill 3-band EQ, a 9-segment 3-colour bar meter, gain control, and 60mm VCA faders with illuminated X/Y crossfader selection. Xone's legendary Voltage Control Filter is included on each channel via illuminated assignment switches, with selectable filter type, resonance, and frequency controls.

The mixer sports a new and original feature - the 'X-FX' system - enabling an external effects processor to be easily interfaced. A single knob controls the proportion of the channel signal sent to the effects unit, from 0 to 100%, and the affected signal is returned to the main mix, or can be routed through the filter.

The Xone:42 incorporates a USB audio interface for easy connection to a computer and integration of digital media. It can be used to play back music files from a laptop and to record mixes from the Xone:42, or, when used with appropriate software, as a digital DJ effects unit that can be patched into the X-FX system. The USB input combines with an XLR
microphone input to provide an additional channel with two band EQ and rotary level control.

The mixer also features a 45mm VCA crossfader with curve control, and a powerful monitoring section with split cue control, mix to cue, two headphone outputs (1/4" and 3.5mm), dedicated booth output, and balanced main mix outputs on XLR.
