Shure PGX Digital Lavalier Wireless Microphone System with WL85

Overview

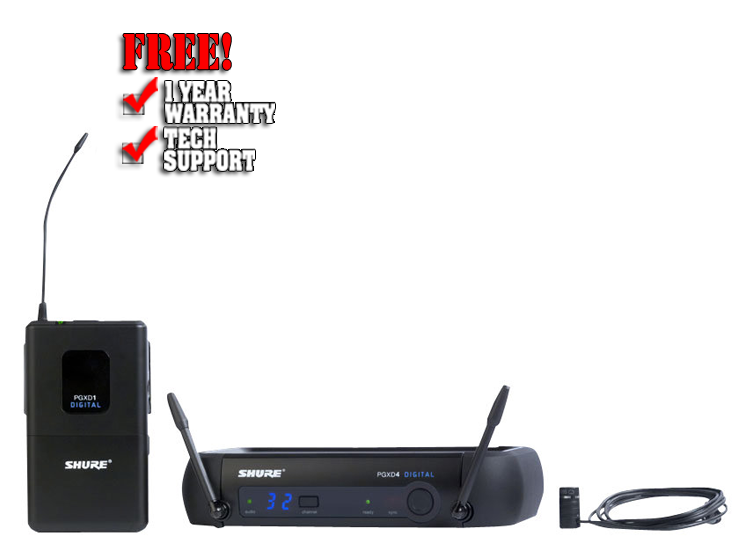

Shure PGXD1485 Lavalier Wireless System

The PGX Digital Lapel Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the WL85 cardioid condenser lavalier for general-purpose sound reinforcement applications requiring good rejection of ambient noise. Also includes tie clip and windscreen.

Features

• Cardioid condenser lavalier microphone for general purpose sound reinforcement
• Smooth extended frequency response with presence rise specially tailored for chest worn microphone operation
• Power, mute, and battery status LED
• Up to 10 hours of continuous use from 2 AA batteries
• 200 ft (60 m) operating range
• Rugged construction for reliable performance show after show
• Low profile bodypack, easily clips onto belts or clothing

Shure PGXD4 Wireless Receiver Features

• 24-bit / 48 kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity for rock-solid wireless signal reliability
• Up to 10 compatible channels per frequency band
• 1/4-inch and XLR audio outputs
• Included padded carrying case for portability and protection

Included in the Box

• PGXD4 wireless receiver
• PGXD1 bodypack transmitter
• WL85 lavalier microphone
• Tie clip
• Windscreen
• Padded carrying case

Specificatoions

• Operating Range: 200 ft (60 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
• RF Carrier Range: X8: 902 - 928 MHz (Americas)
• Audio Frequency Range: 20 - 20,000 Hz
• Transmitter RF Output Power: 10 mW (varies by region)

Audio Output Connector:

• XLR
• 1/4" (6.3 mm) unbalanced

Maximum Output Level:

• -2.5 dBV (XLR, mic level)
• +10 dBV (1/4 inch)
• Battery Life: Up to 10 hours
• Dynamic Range: 108 dB A-weighted
• System Distortion: < 0.02% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
• Operating Temperature Range: -18 degrees C (0 degrees F) - +50 degrees C (122 degrees F)
• Bodypack Batteries: 2 AA size alkaline or rechargeable
• PGXD4 Reciever Power: 12 - 18 V DC at 150 mA, supplied by external power supply
