Overview

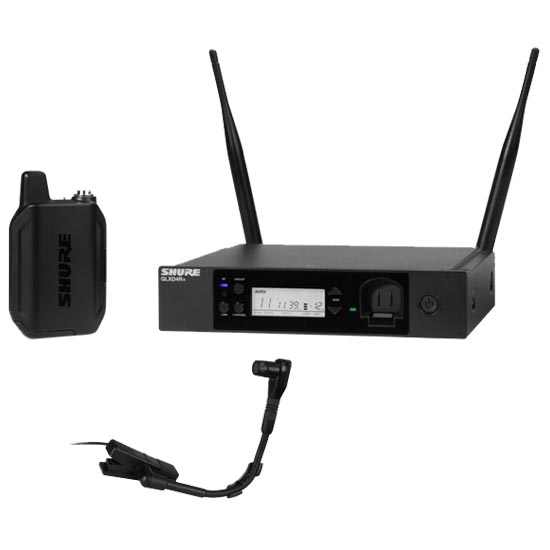

Shure GLXD14R/B98 Wireless Microphone

The Shure GLXD14R/B98 Wireless Instrument Microphone System is part of the GLX-D Advanced wireless systems family. The Shure GLXD14R/B98 provides intelligent rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The precision-crafted BETA 98H/C gooseneck microphone offers flexible positioning for brass, woodwind and percussion applications. For use with GLX-D Advanced Frequency Managers (UA846Z2).

Included with Shure GLXD14R/B98 System

  • GLXD4R rack mount receiver
  • GLXD1 bodypack transmitter

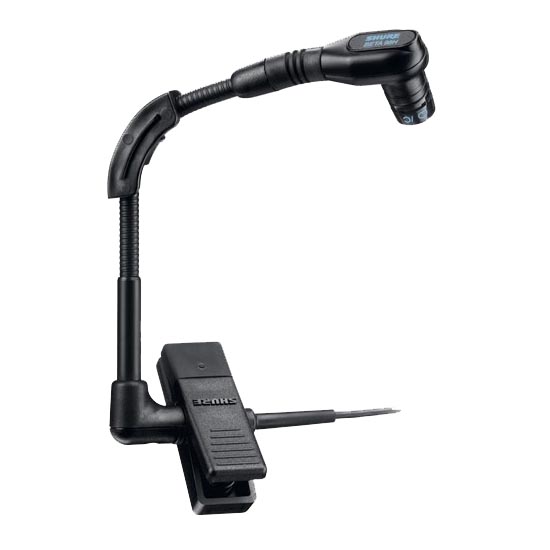

  • BETA 98H/C cardioid condenser microphone
  • SB902 rechargeable lithium-ion battery
  • USB charge cable
  • 2-detachable antennas
  • Rack mount hardware
  • User guide.

Specifications

  • Compatibility: Operate up to 9 compatible systems in typical setting, up to 11 maximum under ideal conditions
  • System Operating Range:
  • - Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m) under ideal conditions
  • - Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m) under ideal conditions
  • Transmit Mode: Shure Proprietary Digital
  • Audio Frequency Response: 20 Hz - 20 kHz Note: Dependent on microphone type
  • Dynamic Range: 120 dB, A-weighted
  • - Latency Groups 1 and A: 4.0 ms
  • - Groups 2, 3, 4 and B: 7.3 ms
  • RF Sensitivity: -88 dBm, typical
  • Total Harmonic Distortion: 0.2%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: -18 degrees C (0 degrees F) to 57 degrees C (135 degrees F) Note: Battery characteristics may limit this range.
  • Storage Temperature Range: -29 degrees C (-20 degrees F) to 74 degrees C (165 degrees F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
  • Battery Life: Up to 16 hours
  • NOTE: All Specifications are subject to change. Performance may vary depending on country regulations and operating environment.

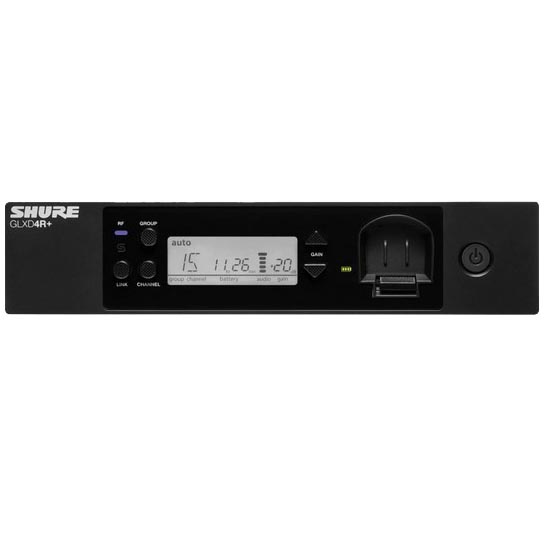

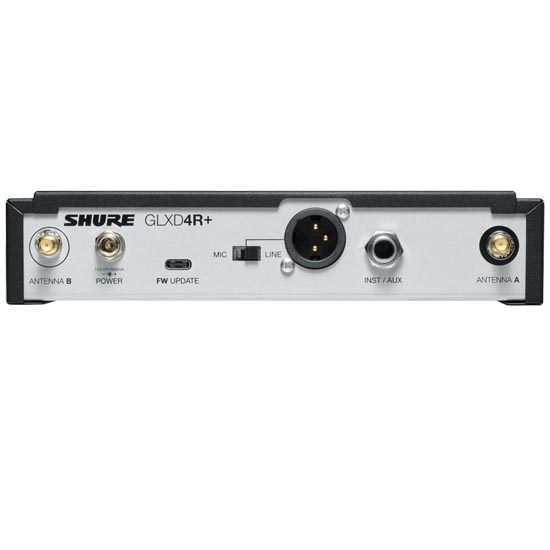

GLXD4R Rack Mount Receiver

  • Dimensions 42 x 197 x 163 mm (1.7 x 7.8 x 6.4 in.) H x W x D
  • Weight: 907.2 g (32 oz.) without batteries
  • Housing: Steel
  • Power Requirements: 14 to 18 VDC (tip positive with respect to ring), 550 mA
  • Spurious Rejection: >35 dB, typical
  • Gain Adjustment Range: -18 to 42 dB in 1 dB steps
  • Phantom Power Protection: Yes
  • Audio Output:
  • - Configuration XLR Output Balanced: 6.35 mm (1/4") output Impedance balanced
  • - Impedance XLR Output 100 O: 6.35 mm (1/4") output 100 O (50 O, Unbalanced)
  • - Full-Scale Output XLR LINE setting= +18 dBV, MIC setting= -12 dBV: 6.35 mm (1/4") +12 dBV
  • - Pin Assignments: XLR Output 1=ground, 2=hot, 3=cold; 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
  • Mic/Line Switch: 30 dB Pad
  • Receiver: Antenna Input
  • Impedance: 50 O
  • Antenna: Type 1/2 Wave Sleeve Dipole
  • Maximum Input Level: -20 dBm

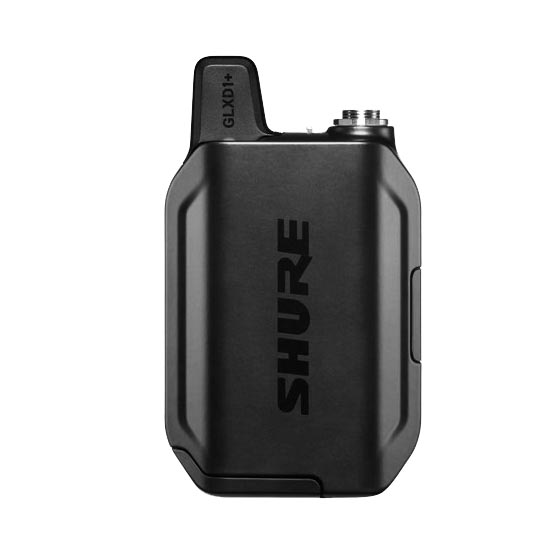

GLXD1 Bodypack Transmitter

  • Dimensions: 90.4 x 64.5 x 22.9 mm (3.56 x 2.54 x 0.90 in.), H x W x D (without antenna)
  • Power Requirements: 3.7 V Rechargeable Li-Ion
  • Housing: Cast Metal, Black Powdercoat
  • Input Impedance: 900 kO
  • RF Output Power: 10 mW E.I.R.P. max
  • Transmitter: Input
  • Connector: 4-Pin male mini connector (TA4M)
  • Configuration: Unbalanced
  • Maximum Input Level: (1 kHz at 1% THD) -8.4 dBV (7.5 Vp-p)
  • Maximum Input Level: (1 kHz at 1% THD) -8.4 dBV (7.5 Vp-p)
  • Pin Assignments: TA4M
  • - 1: Ground (cable shield)
  • - 2: + 5 V Bias
  • - 3: Audio
  • - 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
