PRO AUDIO




Shure GLXD14R/93 Wireless Lavalier Microphone System

Shure GLXD14R/93 Wireless Lavalier Microphone System

Regular Price $1239.99

Our Price $619.99

WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $40.00

Regular Price $1239.99

Our Price $619.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $40.00

We'll beat any price!

Overview

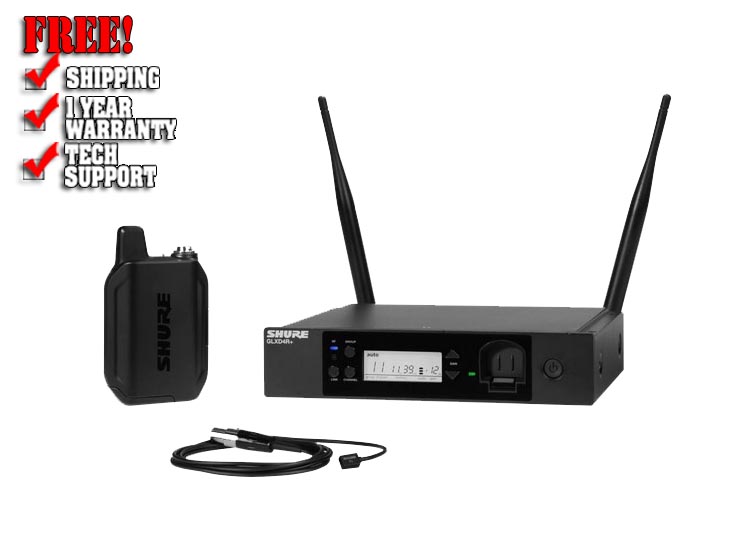

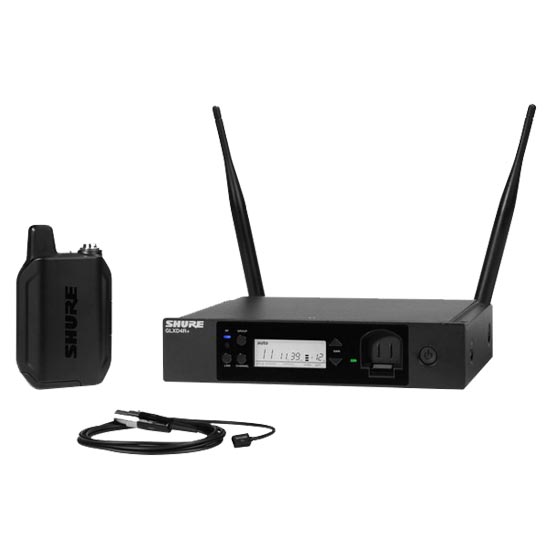

Shure GLXD14R/93 Wireless Lavalier Mic

The Shure GLXD14R/93 Wireless Lavalier Microphone System is part of the GLX-D Advanced wireless systems family. The GLXD14R/93 provides intelligent rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The miniature WL93 lavalier microphone offers discreet placement for presentations and other spoken word applications. For use with GLX-D Advanced Frequency Managers (UA846Z2).

Included with Shure GLXD14R/93 System

  • GLXD4R rack mount receiver
  • GLXD1 bodypack transmitter

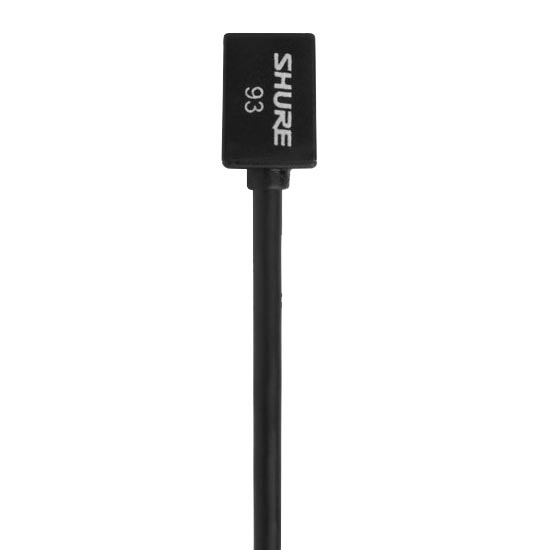

  • WL93 omnidirectional condenser microphone with windscreen and collar clip
  • SB902 rechargeable lithium-ion battery
  • USB charge cable
  • 2-Detachable antennas
  • Rack mount hardware
  • User guide

Specifications

  • Compatibility: Operate up to 9 compatible systems in typical setting, up to 11 maximum under ideal conditions
  • System Operating Range:
  • -Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m) under ideal conditions
  • -Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m) under ideal conditions
  • Transmit Mode: Shure Propietary Digital
  • Audio Frequency Response: 20 Hz
  • 20 kHz Note: Dependent on microphone type
  • Dynamic Range: 120 dB, A-weighted
  • -Latency Groups 1 and A: 4.0 ms
  • -Groups 2, 3, 4 and B: 7.3 ms
  • RF Sensitivity: -88 dBm, typical
  • Total Harmonic Distortion: 0.2%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: -18 degrees C (0 degrees F) to 57 degrees C (135 degrees F) Note: Battery characteristics may limit this range.
  • Storage Temperature Range: -29 degrees C (-20 degrees F) to 74 degrees C (165 degrees F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
  • Battery Life: Up to 16 hours
  • NOTE: All Specifications are subject to change. Performance may vary depending on country regulations and operating environment.

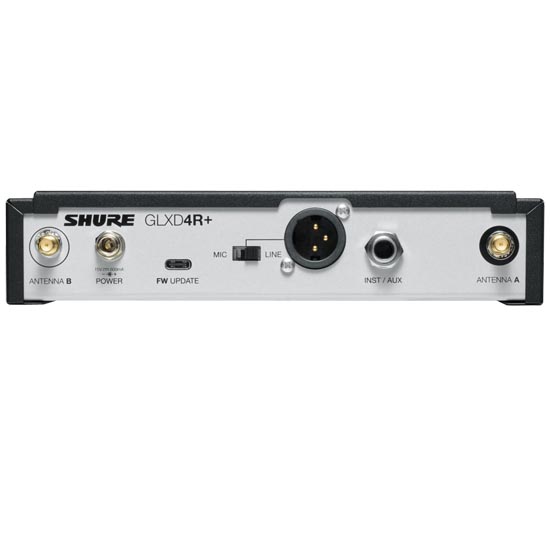

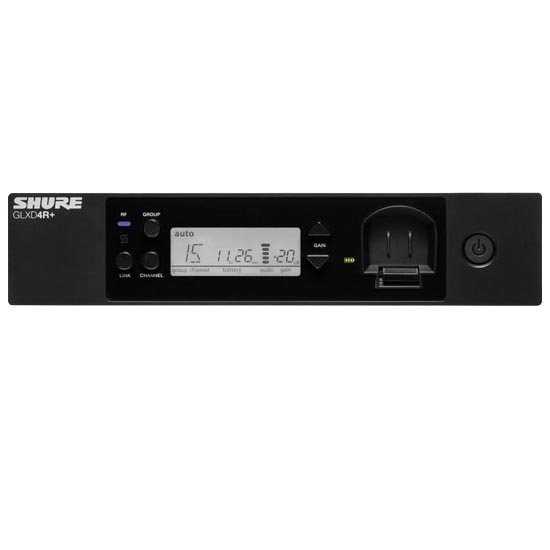

GLXD4R Rack Mount Receiver

  • Dimensions 42 x 197 x 163 mm (1.7 x 7.8 x 6.4 in.) H x W x D
  • Weight: 907.2 g (32 oz.) without batteries
  • Housing: Steel
  • Power Requirements: 14 to 18 VDC (tip positive with respect to ring), 550 mA
  • Spurious Rejection: >35 dB, typical
  • Gain Adjustment Range: -18 to 42 dB in 1 dB steps
  • Phantom Power Protection: Yes
  • Audio Output:
  • -Configuration XLR Output Balanced: 6.35 mm (1/4") output Impedance balanced
  • -Impedance XLR Output 100 O: 6.35 mm (1/4") output 100 O (50 O, Unbalanced)
  • -Full-Scale Output XLR LINE setting= +18 dBV, MIC setting= -12 dBV: 6.35 mm (1/4") +12 dBV
  • -Pin Assignments: XLR Output 1=ground, 2=hot, 3=cold; 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
  • Mic/Line Switch: 30 dB Pad
  • Receiver: Antenna Input
  • Impedance: 50 O
  • Antenna: Type 1/2 Wave Sleeve Dipole
  • Maximum Input Level: -20 dBm

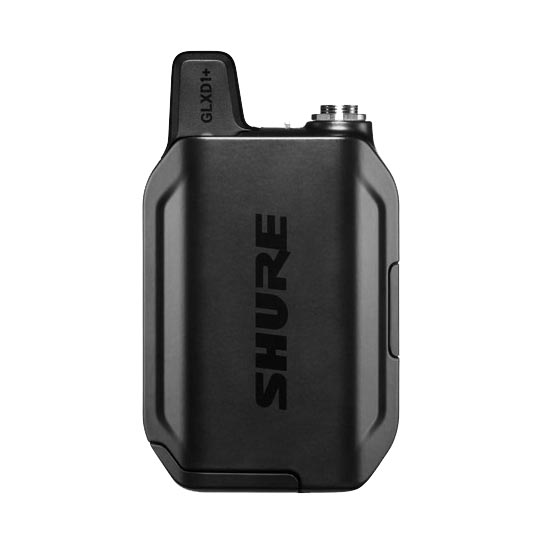

GLXD1 Bodypack Transmitter

  • Dimensions: 90.4 x 64.5 x 22.9 mm (3.56 x 2.54 x 0.90 in.), H x W x D (without antenna)
  • Power Requirements: 3.7 V Rechargeable Li-Ion
  • Housing: Cast Metal, Black Powdercoat
  • Input Impedance: 900 kO
  • RF Output Power: 10 mW E.I.R.P. max
  • Transmitter: Input
  • Connector: 4-Pin male mini connector (TA4M)
  • Configuration: Unbalanced
  • Maximum Input Level: (1 kHz at 1% THD) -8.4 dBV (7.5 Vp-p)
  • Antenna Type: Internal Monopole
  • Pin Assignments: TA4M
  • -1: Ground (cable shield)
  • -2: + 5 V Bias
  • -3: Audio
  • -4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
