Shure GLXD14/PGA31 Digital Wireless Headset Microphone System

Shure GLXD14/PGA31 Digital Wireless Headset Microphone System

Regular Price $1039.99

Our Price $519.99

WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $40.00

Regular Price $1039.99

Our Price $519.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details

Regular Price $99.99

Full Protection Only $40.00

We'll beat any price!

Overview

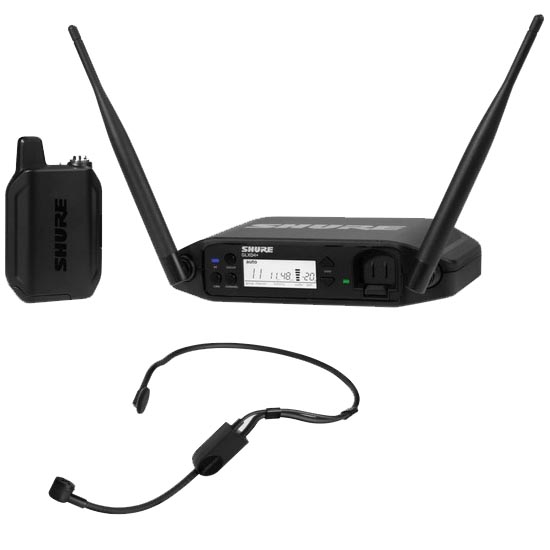

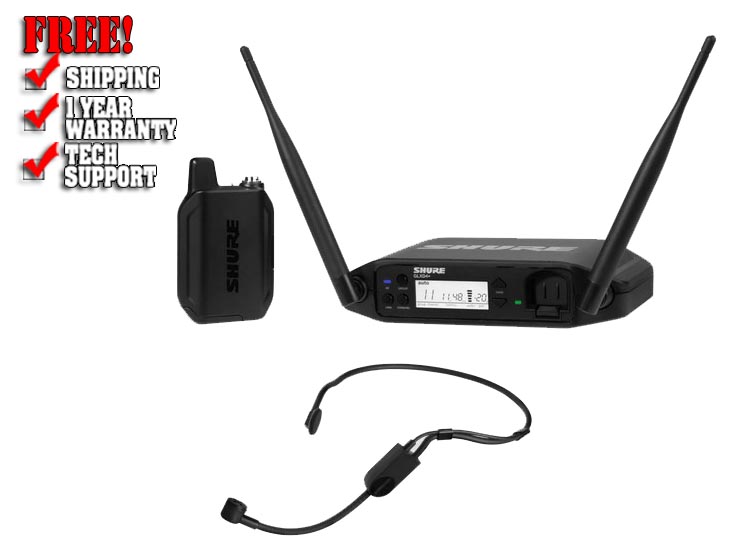

Shure GLXD14/PGA31 Wireless System

The Shure GLXD14/PGA31 Headworn Wireless System is part of the Headworn wireless systems family. Revolutionary Shure GLX-D Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery recharge ability to define the standard for seamless operation and digital audio clarity.

Features:

  • Allows operation of up to 4 compatible systems in a typical setting, and up to 8 maximum under ideal conditions
  • Operating range: Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m)
  • Operating range: Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m)
  • Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring an integrated microphone capsule design

LINKFREQ Automatic Frequency Management (2.4 GHz frequency band)

  • Revolutionary intelligent frequency management quickly identifies the best open group and channel frequencies
  • Bi-directional communication link automatically enables the transmitter to follow any frequency change on the receiver
  • Continuous interference monitoring automatically and seamlessly switches to backup frequencies if needed, without performance interruption

Power Management

  • Custom Shure rechargeable lithium-ion batteries replace up to 2,500 alkaline batteries and deliver:
  • Up to 10,000 hours of use per battery
  • Up to 16 hours of continuous use
  • 3-Hour charge = up to 16 hours use
  • 1-Hour charge = up to 6 hours use
  • 30-Minute charge = up to 3 hours use
  • 15-Minute charge = up to 1.5 hours use

Specifications

  • Tuning Bandwidth: 2400-2483.5 MHz
  • RF Carrier Range Group:
  • 1: 2404-2478 MHz
  • 2: 2404-2478 MHz
  • 3: 2405-2477 MHz
  • Working Range: 60 m (200 ft) typical
  • Bandwidth Group:
  • 1: 1.2 MHz
  • 2: 1.2 MHz
  • 3: 2.2 MHz
  • Transmit Mode: Frequency Hopping
  • Audio Frequency Response: 20 Hz
  • 20 kHz
  • Dynamic Range: 120 dB, A-weighted
  • Latency Group:
  • 1: 3.9 ms
  • 2: 7.3 ms
  • 3: 7.3 ms
  • RF Sensitivity: -88 dBm, typical
  • Total Harmonic Distortion: 0.2%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: -18*C (0*F) to 57*C (135*F)
  • Storage Temperature Range: -29*C (-20*F) to 74*C (165*F)
  • Battery Life: Up to 16 hours

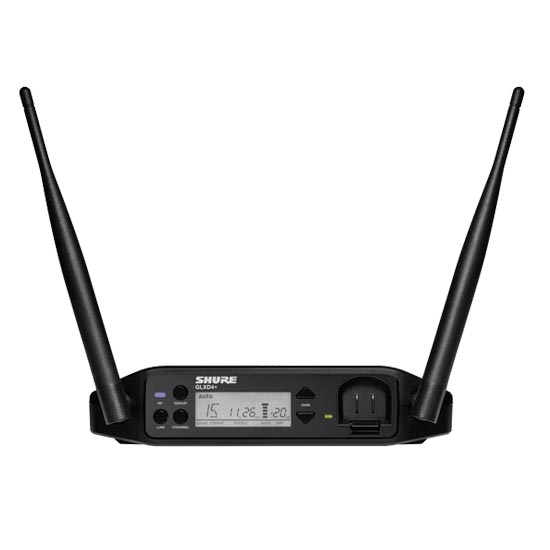

  • Includes: GLXD4 receiver, GLXD1 bodypack transmitter, PGA31 headset microphone, power supply, clothing clip, windscreens, rechargeable battery, and user guide.

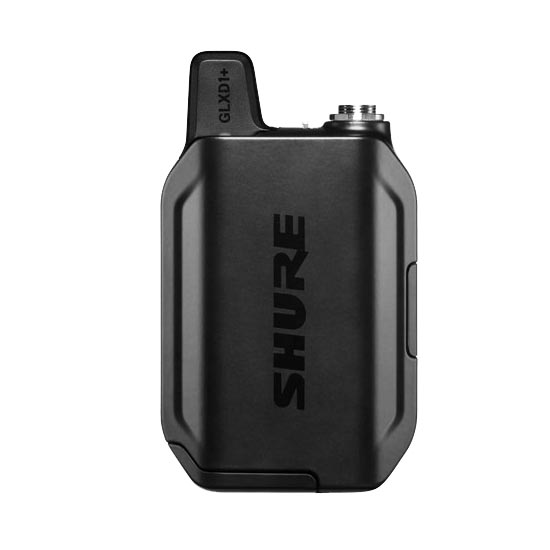

GLXD1 Bodypack Transmitter:

  • Dimensions: 90.4 x 64.5 x 22.9 mm (3.56 x 2.54 x 0.90 in.), H x W x D
  • Power Requirements: 3.7 V Rechargeable Li-Ion
  • Housing: Cast Metal, Black Powdercoat
  • Input Impedance: 900 k
  • RF Output Power: 10 mW E.I.R.P. max
  • Maximum Input Level: (1 kHz at 1% THD) -8.4 dBV (7.5 Vp-p)
  • Antenna Type: Internal Monopole

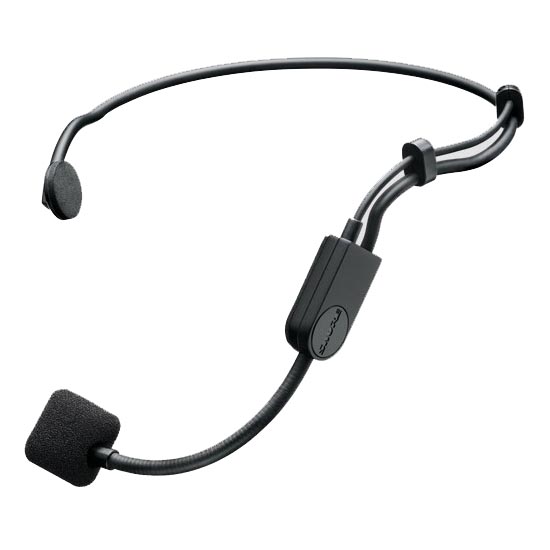

PGA31 Performance Headset Condenser Microphone:

  • Type: Electret Condenser
  • Frequency Response: 60 to 20,000 Hz
  • Polar Pattern: Unidirectional (Cardioid)
  • Output Impedance: @ 1 kHz, typical 600 O
  • Audio Output Level: -50 dBV/Pa
  • Signal-To-Noise Ratio: @ 1 kHz 66 dB
  • Maximum SPL: 1000 O load, @ 3% THD 145.0 dB
  • Dynamic Range: @ 1 kHz, 1000 O load 117.0 dB
  • Equivalent Output Noise: Typical, A-Weighted 28 dB
  • Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
  • Cable: 1.3 m (50 in.)
  • Connector: TA4F
  • Net Weight: 45 g (1.59 oz.)
Shure GLXD14/PGA31 Digital Wireless Headset Microphone System
Shure GLXD14/PGA31 Digital Wireless Headset Microphone System
Shure GLXD14/PGA31 Digital Wireless Headset Microphone System
Shure GLXD14/PGA31 Digital Wireless Headset Microphone System
