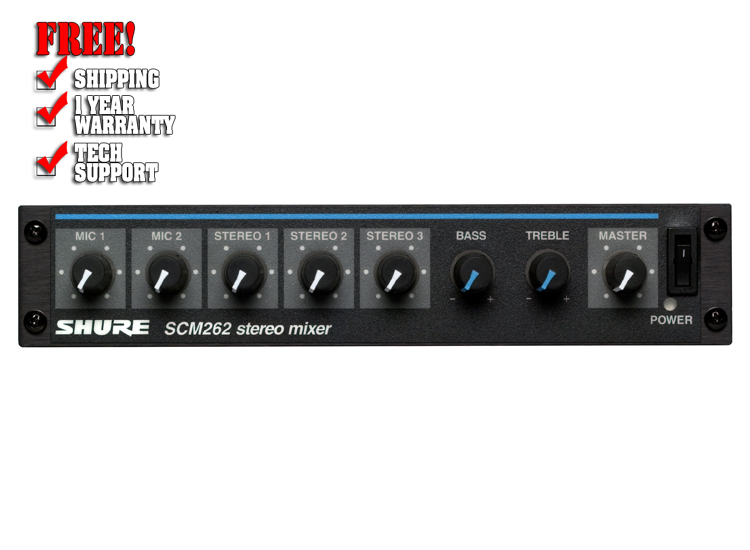

Shure SCM262 Stereo Microphone Mixer

Overview

The Right Amount of Mixer

Many smaller installations require an easy-to-use mixer with very specific features and capabilities. You need to integrate your microphones and stereo equipment without paying for features you'll never use. And of course, you'll need dependability. The SCM262 provides features tailor-made for your smaller application -- such as defeatable "ducking," "jukebox mute," and "12V Phantom."

Simplicity

The SCM262 has been designed with simplicity in mind, allowing you to focus on your job, not your audio system. Providing the right combination of features, benefits and ease-of-use, the SCM262 is perfect for the following applications:

• Restaurants
• Aerobics/Health Clubs
• Corporate Training
• Classrooms

Precision Capabilities

The SCM262 is the latest addition to our growing Installed Sound category and provides all the performance, durability, and value synonymous with the Shure name.

Features

• Defeatable "ducking"
• "Jukebox mute"

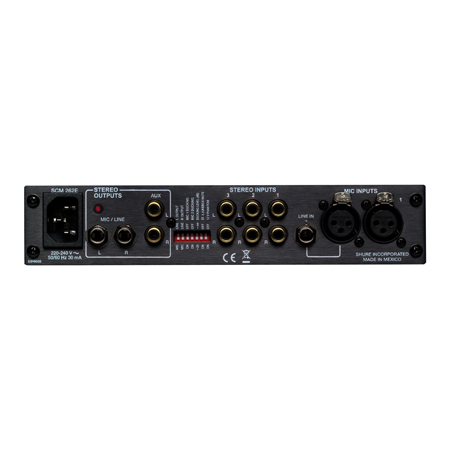

• One active balanced XLR mic input channel
• One active balanced XLR mic and 1/4 inch TRS line input channel
• Three stereo input channels (Six phono connectors)
• One unbalanced stereo output (Two phono connectors)
• One balanced stereo mic/line output (Two 1/4 inch TRS connectors)
• 12V phantom power for condenser microphones
• All in a half-rack chassis

Specifications

Measurement Conditions (unless otherwise speci- fied):Tone controls centered; Line voltage 120 Vac, 60 Hz (SCM262) or 230 Vac, 50 Hz (SCM262E); full gain; 1 kHz, one channel activated; source impedances: Mic 150 Ω ; Line/ Aux 40 Ω , terminations: Line/Mic/Aux 20 k Ω.

Frequency Response (Ref 1 kHz, channel and master controls centered) MIC/LINE Inputs: 150 Hz to 20 kHz ± 2 dB AUX Inputs: 20 Hz to 20 kHz ± 2 dB

Low-Cut Filter (microphone inputs only) 3dB down at 80 Hz, 6 dB/octave

Overload and Shorting Protection
Shorting outputs, even for prolonged periods, causes no dam- age. Microphone inputs are not damaged by signals up to +10 dBV; Line and Aux inputs by signals up to +28 dBV

Equalization
Bass (Low-frequency shelving) ± 6 dB (corner frequency at 250 Hz)
Treble (High-frequency shelving) ± 6 dB (corner frequency at 4 kHz)

Ducking

• Mic channels 1 and 2
• Levels – 20 dB or – R dB
• Activation time 10 ms (typical)
• Mic Deactivation time 2 s (typical)
• Jukebox Mute Deactivation Time 30 s (typical)

Operating Voltage

• SCM262: 100 – 120 Vac, 50/60 Hz, 60 mA
• SCM262E: 220 – 240 Vac, 50/60 Hz, 30 mA

Temperature Range

• Operating -7° to 49° C (20° to 120°F )
• Storage -29° to 74° C (-20° to 165°F)

Overall Dimensions

• 43 x 218 x 162 mm (1.72 x 8.60 x 6.37 in.)

Net Weight:

• 1.1 kg (2 lbs, 5 oz)

Certifications

• SCM262: UL, cUL listed by Underwriters Laboratories.
• SCM262E: Conforms to European Union directives, eligible to bear CE marking; VDE GS-Certified to EN 60 065; meets European Union EMC Immunity Requirements (EN 50082 – 1: 1992, EN 50082 – 2: 1992)
