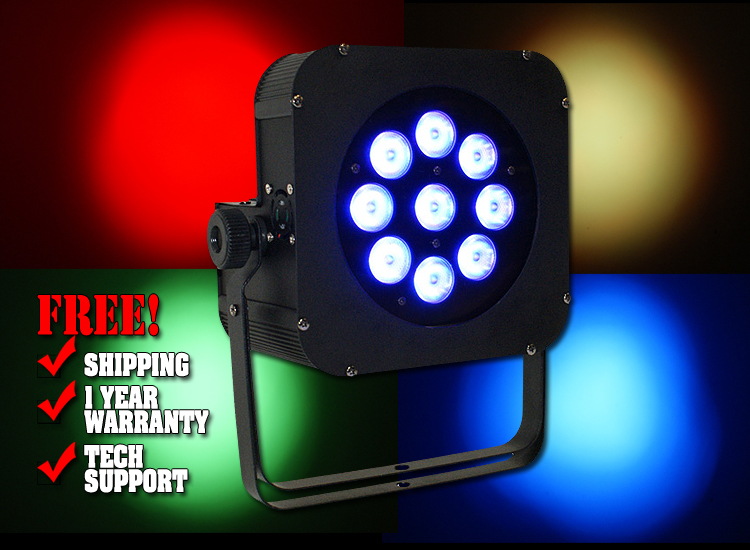

The Puck 3 Unplugged™ features all of the same great features as the Puck 3NX™ with the addition of an internal rechargable, field-replacable lithium-ion battery system.
Redesigned from the ground up to be brighter, lighter, stronger and smarter than the original Puck3, the Puck 3 Unplugged™ builds on the original’s runaway success and adds more of everything that made The Puck3 so popular! With about 10% more output thanks to optimized electronics and optics, quieter fans, and extra protection for the fixture’s 9x 3-watt Edison® Edixeon™ Tri-Color LEDs, the Puck 3 Unplugged™ offers a ton of features! Plus, it retains the DMX layout of the original Puck3 as well as its input/output setup for easy interoperability!
And, take full advantage of Blizzard’s wiCICLE® wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks! An innovative design provides power to the system directly from the fixture’s DMX jack, meaning even fewer cords and less setup time.
An LED control panel and power daisy chain connectors make it flexible and perfect for uplighting, concerts, truss warming and virtually anywhere you need lots of color for notalotta green!
The Puck 3 Unplugged™ features 3 and 6-channel control modes which means it works great with any type of controller, including popular 3-channel easy controllers. Plus, the built-in 4 character/4 button LED control panel allows total control over the fixture, including sound active and standalone modes, display invert and service hour readout.
Once you compare it to other fixtures on the market, you'll realize that now more than ever... there is no comparison!
- Superior color mixing via 9x 3-watt TRI-Color LEDs
- Variable electronic strobe
- Variable electronic dimmer
- Built-in automated programs via DMX and master/slave
- Built-in sound active programs
- Full color mixing in standalone and master/slave
- RGB Dimming (3-Channel) and extended (6-Channel) DMX modes
- PDF Manual
- Ultra Long-life intelion™ Lithium-Ion Battery System
- Durable acrylic lens protector for added LED protection

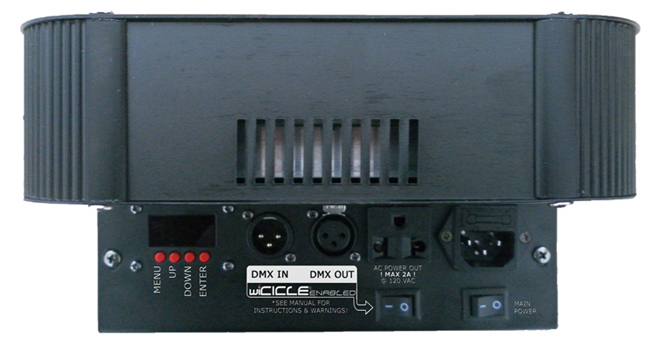

- 4-Button LED control panel for easy programming
- Light source: 9x 3-watt TRI-Color Edison Edixeon LEDs

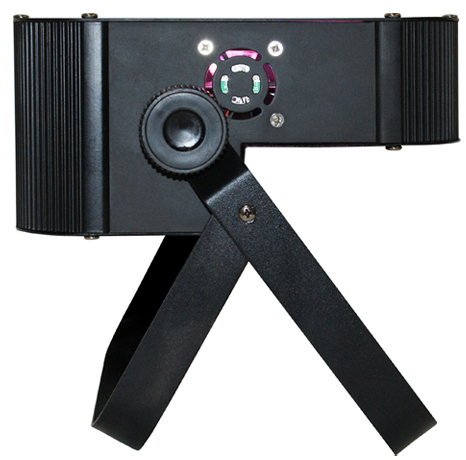

- Dual bracket for flexibility in mounting
- Power outlet for fixture linking (MAX 3A @ 120VAC)
- Ultra-quiet fan for cool operation all night long
- wiCICLE® Enabled functionality allows plug-and-play operation with our wiCICLE® Brand Wireless DMX system
Weight & Dimensions
- Length 8.50 inches (215 mm)
- Width 5 inches (126.5 mm)
- Height 8.25 inches (210 mm)
- Weight 6.9 lbs (1.9 kg)
- Operating Voltage 90-230VAC, 50-60 Hertz
- Fuse 2A 250V
- Power Consumption 35W
- LED 9x 3-watt TRI-Color LED’s 60K hrs.
- Beam Angle 25 degrees
- 29 degree field
- Luminous Intensity 7,160 Lux @ 1m (Full White)
- Red 1,550 Lux @ 1m
- Green 2,250 Lux @ 1m
- Blue 2,930 Lux @ 1m
- Max. Operating Temp. 104 degrees F (40 degrees C) ambient
- Protocol USITT DMX-512
- DMX Channels 3 or 6 (User Selectable)
- Input 3-pin XLR Male
- Output 3-pin XLR Female
Other Operating Modes
- Standalone, Master/Slave, Sound Active, Color Preset, Standalone color mixing
- Type/Rating: Intelion™ Field-replacable Lithium-Ion, 24-Volt, 6 Ah.
- Fixture: 2-year limited warranty.
- Battery: 1-year limited warranty covering failure only.
