Blizzard Lighting HotBox™ RGBW

Description

The Box, Redefined

Ah, the box... one of the most useful, time tested, and attractive 3-dimensional shapes ever created is once again new and improved! Just like its big brother the RokBox™, the HotBox™ also offers cutting-edge 4-in-1 LEDs, advanced electronics, a rock solid super-cool aluminum casing with dual hanging brackets and secure grip locking knobs, but in an even more compact/portable cute little package! It weighs in at just 3.5 pounds and is only 4 x 5 x 5 inches (7.25 inches tall including the brackets.)

Easy Peasy Programming

The HotBox™ RGBW puts out a ton of light with 7x 10-watt 4-in-1 LEDs, and their user selectable 3/4/5/8 or 9 DMX channel modes allow them to work great with any type of controller. You'll have full control of color mixing, 31 built-in programs, ultra smooth flicker-free 32-bit dimming, and even easy HSV color mixing ability in 3-channel mode. Additionally, the built-in 4-button LED control panel also allows total control over the fixture, including master/slave settings, sound active mode, built-in programs, auto mode, custom color mixing, and user adjustable fade/strobe effects.

Features:

• RGBW color mixing via 7x 10W 4-in-1 LEDs
• Variable electronic dimming & strobe
• 5 user-selectable 32-bit dimming curves
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Built-in sound active programs
• Color mixing ability in standalone mode
• Rugged and well-built (It hits the gym regularly)
• Super-quiet variable-speed internal fan cooling
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current 400hz LED driver

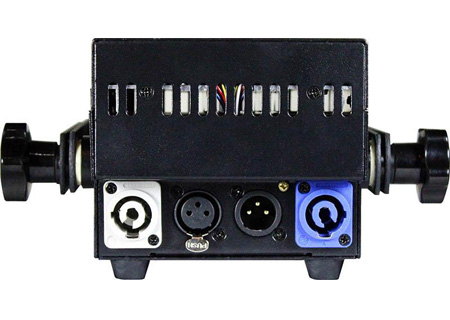

• 3-pin male input and 3-pin female output
• powerCON® compatible AC power In/Out connectors

Specifications:

Optical

• Light source: 7x 15W 6-in-1 LEDs 100,000 hours
• Beam Angle: 25 degree optics standard, 26 degree beam, 30 degree field

Weight & Dimensions:

• Length: 4 inches (102 mm)
• Width: 5 inches (127 mm)
• Height: 5 inches (127 mm), 7.25 inches w/brackets)
• Weight: 3.5 lbs (1.6 kg)

Control:

• Protocol USITT DMX-512
• DMX Channels: 3/6/8/10/11
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• HSV (3-Ch), RGB(A/W) (4-Ch), RGB(A/W) + Dimmer (5-Ch) & Extended (8-Ch/9-Ch)
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Power & Current:

• Operating Voltage: 100-250VAC, 40-60 Hertz
• Fuse: 2A 250V
• Power Consumption: 47W, .68A
• Power Factor: .55

Warranty:

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs

Downloads

• CUTSHEET
• MANUAL REV A
