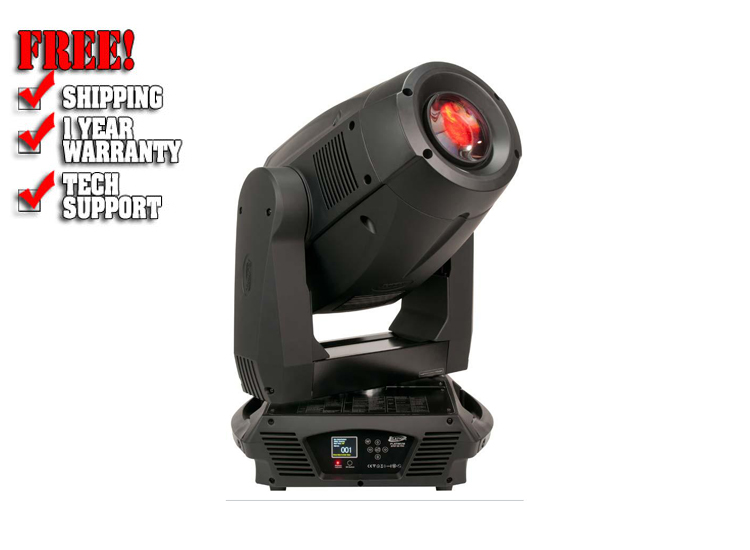

ELATION Platinum Spot 35 Pro Moving Head Effect Light

The Elation Platinum Spot 35 Pro (EPS863) is is part of the Elation Platinum Series and features the MSR Platinum 35, 800-watt lamp from Phillips?, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 12 interchangeable glass rotating / indexing gobos, variable CMY & CTO color mixing, a static dichroic color wheel with 8 interchangeable colors (including UV), 3 facet rotating / indexing prism, frost filter, motorized focus / zoom system with an 8? to 50? range, rotating / indexing animation wheel effect, pan/tilt lock, built-in EWDMX wireless DMX receiver, 3 & 5pin DMX connections, full color 180? reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
540°/630° Pan
245° Tilt
Pan/Tilt Lock
8 / 16 Bit Resolution Adjustable Movement
Motorized Focus
7 Auto Program Macros

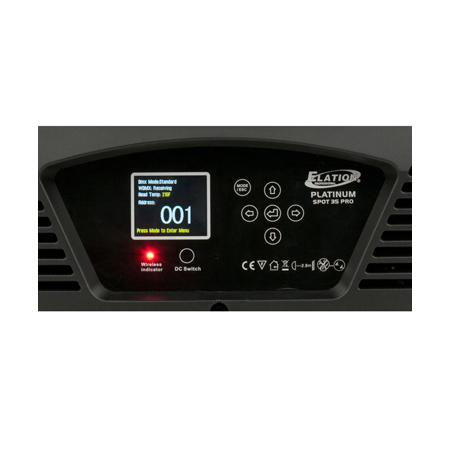

6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
EWDMX Wireless DMX Receiver
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Master/Slave Function
Software Upload via Optional External DMX Accessary

LAMP
Philips 800-Watt MSR PLATINUM 35
55,000 Lumen, 7,800k, >75 CRI, 750 Hour Average Life

PHOTOMETRICS
Max 76,880 LUX @5M 8° Min Zoom
Max 2,725 LUX @5M 50° Max Zoom

EFFECTS
Frost Filter
Animation Wheel Effect
Motorized Iris: 5% - 100%
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet Rotating Prisms with 16 Prism Macros

COLOR
Variable CMY & CTO
8 Static Dichroic Colors Including UV + White (Open)

GOBOS
2 Gobo Wheels With 12 Total Interchangeable Glass Rotating / Indexing Gobos
Size: OD 29mm / ID 24mm

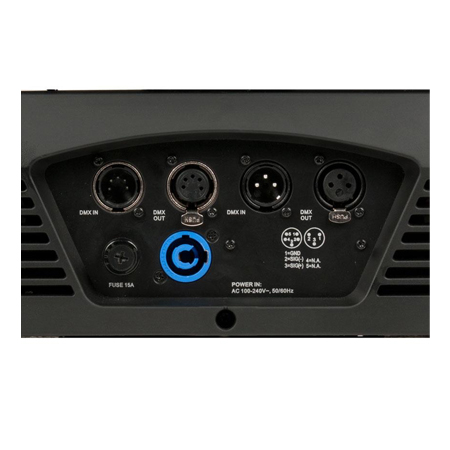

CONTROL / CONNECTIONS
3 DMX Channel Modes (27 / 29 / 41)
3pin & 5pin DMX In/Out
powerCON Power In

SIZE / WEIGHT
Length: 19.9” (506.5mm)
Width: 17.6” (447.3mm)
Vertical Height: 28.6” (726.5mm)
Weight: 79 lbs. (36kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1200W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)

APPROVALS / RATINGS
CE Approved
cETLus Approved
IP20 Rated
