Elation Professional Colour Chorus 48

Overview

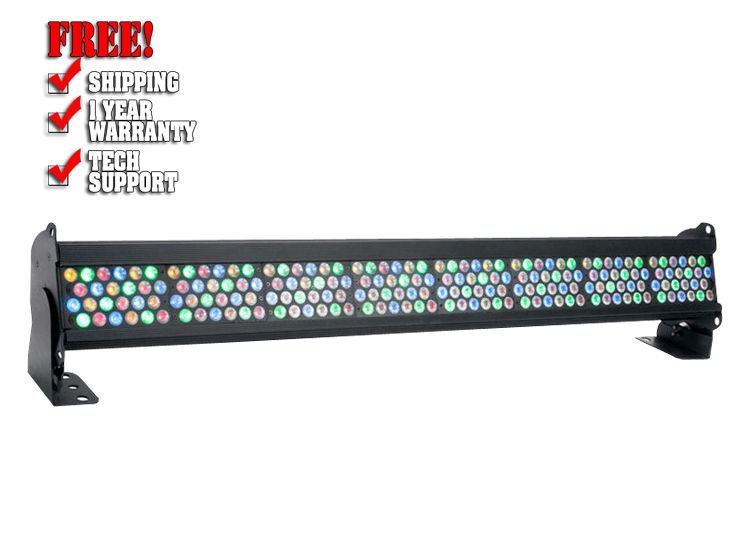

The Colour Chorus 48 from Elation Professional is a 4'-long RGBA (red, green, blue, & amber) light bar featuring 192 individual 3W LEDs: 48 LEDs per color. The fixture offers individual hue, saturation, and intensity control; LED group control; variable dimming curve modes; and strobe & chase effects.

The Colour Chorus 48 incorporates a four-button touch-control panel and an LCD menu display. It supports three & five-pin DMX connectivity, Art-Net & Kling-Net protocols, and RDM (Remote Device Management) control. Flicker-free operation makes the unit suitable for TV and film broadcast. Multiple DMX channel modes enable you to control varying levels of features.

The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 110-250 VAC outlets and has a maximum power consumption of 446W. The Colour Chorus 48 can be mounted in any position using the integrated rigging brackets (clamps sold separately).

Features:

• Individual hue, saturation, and intensity control
• Variable dimming curve modes
• Supports RDM (Remote Device Management), Art-Net, and Kling-Net protocols
• Flicker-free operation for TV and film
• Multiple DMX channel modes
• Four-button touch control panel
• LCD menu display
• Multiple-unit power linking
• Rugged die-cast aluminum exterior

Specifications:

• Lamp 192 x 3 W (RGBA) LEDs (red, green, blue, amber)
• LED Life Expectancy Average: 100,000 hours
• Photometric Data 21,500 lux (1,997 fc) @ 3.3' (1 m) 65° full-on
• DMX Connectors
  • 1 x 3-pin XLR male, DMX in
  • 1 x 3-pin XLR female, DMX out
  • 1 x 5-pin XLR male, DMX in
  • 1 x 5-pin XLR female, DMX out
  • 1 x Ethernet RJ45, Art-Net / Kling-Net in
  • 1 x Ethernet RJ45, Art-Net / Kling-Net out
• Protocols DMX512, Art-Net, Kling-Net, and RDM (Remote Device Management)
• EffectsStrobe and chase,Variable dimming curves,Individual hue, saturation, and intensity control
• Power Connection Type
  • 1 x powerCON, power in
  • 1 x powerCON, power out
• Power Cord Daisy Chain Yes
• Power Supply110-250 VAC, 50 / 60 Hz
• Power Consumption446 W max.
• Display/ControlsLCD menu display with four-button control panel
• IP RatingIP30
• ExteriorRugged die-cast aluminum
• Operating Temperature5 to 113°F (-15 to 45°C)
• Rigging Points Integrated rigging brackets
• Working PositionAny (360°)
• Approvals
  • CE
  • cETLus
• Dimensions46.5 x 7.6 x 7.6" (1182.0 x 194.1 x 192.5 mm)
• Weight 37 lb (16.8 kg)
