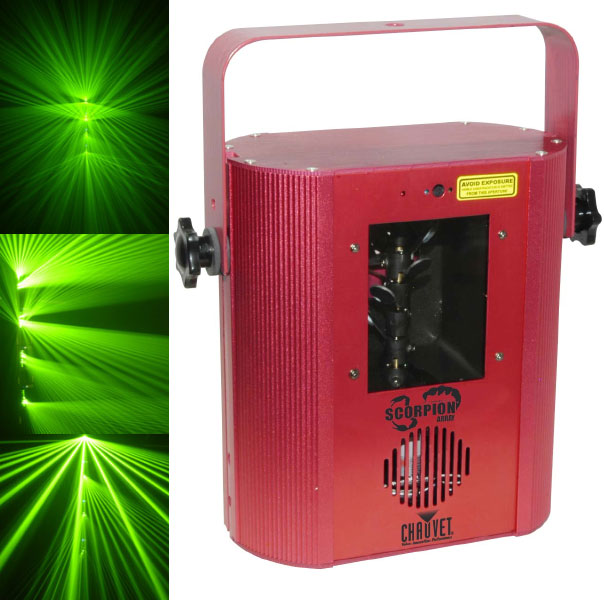

Scorpion Array

2-channel DMX-512 controlled green laser
Operating modes: auto, sound active, master/slave
Scan and speed adjustment
Laser on/off
Built-in automated programs via master/slave or DMX
Built-in sound activated programs via master/slave or DMX
ADDITIONAL FEATURES
Video of product
PDF Manual
10mW Fat BeamTM laser produces 10-14mm beams that comply with IEC safety standards under ClassIIIA
No variance required

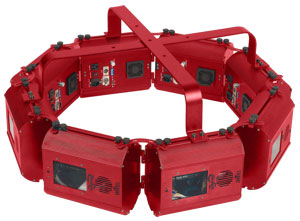

Multiple array configurations with optional mounting brackets (LAB-40CT & LAB-40V)
Additional power output for daisy chaining units
Sound sensitivity control
Micro-stepping motors
Rugged construction
Fan cooled (with removable air filter)
SPECIFICATIONS
Laser: 532nm/10mW green laser module
Current draw: (peak 20W @ 120V) (inrush 20W @ 120V)
Power: Switchable 110V/230V 50/60Hz
Weight: 7lbs (3.2kgs)
Size: 14in x 11in x 6in
355mm x 279mm x 152mm
2-year limited warranty (90 days on diodes)
Our Lasers
Before buying laser fixtures, ask whether they comply with FDA performance standards, as is required by law. Ours do. We don't ship any CHAUVET laser until they are in compliance with FDA safety regulations pursuant to Laser Notice No. 50, dated July 26,2001 for CLASS 3R Laser products 5.0mW CW Diode 532 nm (green) or 635-650 nm (red) IEC/EN 60825-1, ed 1.2. This review process is costly and lengthy. Sadly, other companies choose to bypass it, in defiance of the law. Ask before you buy. You'll be glad you did.
