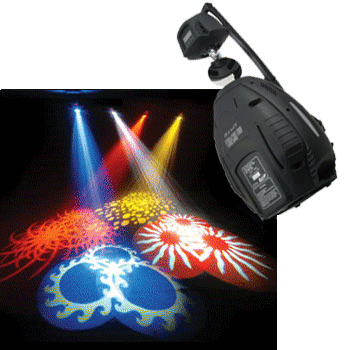

Vision Scan 575E

Vision Scan 575E
575W PROFESSIONAL SCANNER

List Price: $2999.99
Our Price: $2199.99

Quicktime Movie
WMV Movie
Vision Scan 575 PDF User Manual
Vision Scan 575 PDF DMX Traits
Vision Scan 575 PDF Brochure

CONTROL FEATURES
USITT DMX-512 (16-bit resolution)
Pan 170º/Tilt 80º
16 DMX channels
4 Digit L.E.D. Display
3 pin XLR serial input/output

OPTICAL SYSTEM
Remote Focus via DMX
High Output Luminous-Parabolic dichroic reflector

BEAM FEATURE
20º, 22º & 24º Beam Angle

COLOR FEATURES
8 Colors + White
UV filter
Color Scroll
Split Colors

GOBO FEATURES
16 Gobos on 2 wheels
Convenient Slot-Lock gobo replacement system
Gobo Shake Effect
Gobo Scroll
Wheel 1: 6 interchangeable Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal
Wheel 2: 7 interchangeable Static Metal gobos
Gobo Size Wheel 1: 22mm x 23mm viewing x 4mm thickness
Gobo Size wheel 2: 22mm x 23mm viewing metal only

EFFECT FEATURES
3-facet prism rotating in both directions at variable speeds
Gobo Overlaying

SHUTTER/DIMMER FEATURES
Mechanical Dimming 0-100%
Mechanical High Speed shutter & Pulse Effect

SPECIAL DMX-CONTROL FEATURES
16 pan/tilt preprogrammed movements via DMX
Built-in Programs via DMX
Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX

STAND-ALONE FEATURES
Sound activated built in programs
Sensitivity knob
Linkable up to 16 units
Self Test & Stand Alone settings
Built-in Microphone with sensitivity knob

TECHNICAL SPECIFICATIONS
Lamp: Phillips MSR-575/2 (575W, 7200ºK, 1000hrs)
Dimensions: 13.75” x 15.5”W x 30.5”H
Weight: 65lbs
Fuse: 10A
Voltage: 120V/220v (50/60Hz)
Power Consumption: 700VA
Fan cooled 1 axial fan
