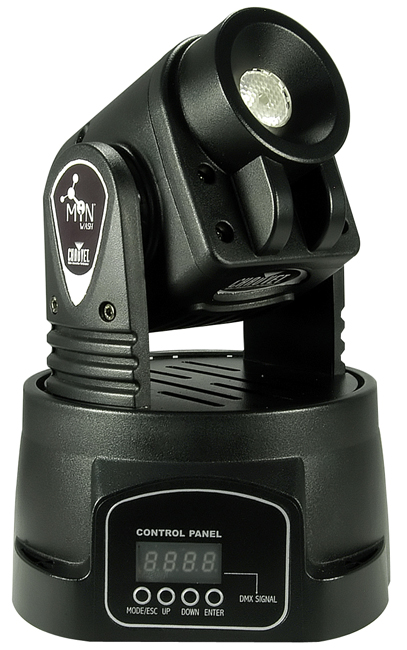

| MinWash |
|
|
- PDF Manual
- Product Video
- CONTROL FEATURES
- 5 or 13-channel DMX-512 LED moving yoke color wash
- Pan: 540° / tilt: 270°
- RGB color mixing
- Variable electronic strobe
- Variable electronic dimmer (0 – 100%)
- Vector speed channel for pan/tilt, RGB color mixing and color macros
- Built-in movement macros via master/slave or DMX
- ADDITIONAL FEATURES
- Built-in automated programs via master/slave (fast and slow)
- Built-in sound activated programs via master/slave
- User-selectable basic or advanced operating modes \
- User-selectable pan/tilt ranges
- Pan: 540°, 360°, 180°
- Tilt: 270°, 180°, 90°
- Compact and lightweight
- LED display with on, off, auto settings
- Reset to factory settings option
- Pan/tilt invert option
- Fan cooled
- SPECIFICATIONS
- Beam angle: 27°
- Field abgle : 53°
- Footcandles :64
- Lux : 689
- Light Source: 1 (14W RGB) LED 50,000hrs
- Current draw: (peak 61W @ 120V) (inrush 82W @ 120V)
- Power: Switchable 110V/230V 50/60Hz
- Weight: 8.3lbs (3.8kgs)
- Size: 6.8in x 6.8in x 9.8in
- 173mm x 173mm x 249mm
- 2-year limited warranty
|
