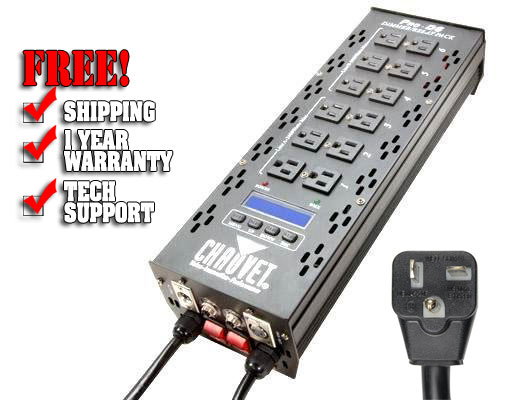

Chauvet PRO-D6

Description

The Pro D6™ is a 6-channel DMX-512 dimmer/switch pack designed to work on multiple voltages (115V and 230V) simultaneously, and comes fitted with 20 amp connectors for this purpose. It offers variable electronic dimming and each channel can be set as either dimmer or relay.

Specifications:

• 6-channel DMX-512 dimmer / relay pack
• Each channel can be set to any DMX address
• Each channel can be set as either dimmer or relay
• Variable electronic dimmer (0-100%)
• Dimmer curve selection for each channel: square, switch or linear
• Dual 20A power lines (requires 2 separate circuits on the same phase)
• Individual switch, circuit breaker and plug per line
• Accommodates different input voltages simultaneously
• 2 Edison plugs per channel
• Input voltage equals output voltage
• Output: 10A per channel, 20A per power line, 40A max
• AC power: Autoswitching 100V – 240V 50/60Hz
• Weight: 9.3lbs (4.2kg)
• Size: 18in x 5.8in x 3.8in / 457mm x 147mm x 97mm
• PDF Manual
