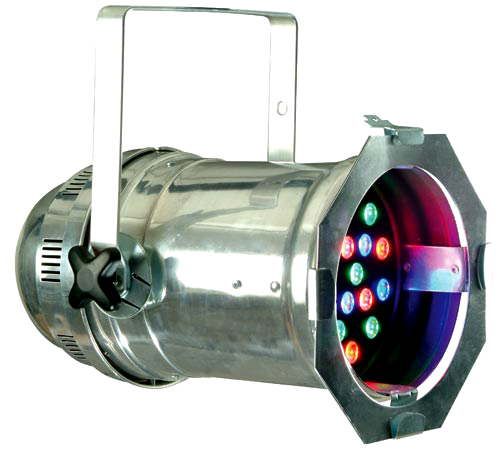

Stage Color LED
Bright Output LED Par Can |
Regular Price
$799.99
Our Price $499.99
|
- Quicktime Movie
- WMV Movie
- Stage Color LED DMX Traits (PDF)
- Stage Color LED Cut Sheet (PDF)
- Stage Color LED User Manual (PDF)
- Stage Color LED Dimensions (PDF)
- Stage Color LED Photometrics (PDF)
- Inspired from the highly successful STAGE COLOR, the Elation Professional, STAGE COLOR LED incorporates the latest in LED technology to fuse the ultimate professional stage lighting Par Can. The STAGE COLOR LED combines DMX-512 protocol along with RGB color mixing to create precise control of a large palette of colors from one fixture.
- It’s 24 bright 1-Watt LEDs produces a high impact without the heat emissions of a traditional par can; thus entertainers will stay cooler on stage. With 50,000 hour rated reliable LED technology, the STAGE COLOR LED will need virtually no servicing and produces the highest quality of output without color fading.
- In addition, the STAGE COLOR LED also offers other advanced features not found in traditional Par Cans, such as: 0-100% dimming; Strobing in any color; pulse effect; and Master/slave and Sound active modes. At 45W maximum power, the STAGE COLOR LED allows users to use more fixtures on one circuit and saves on electrical costs. The STAGE COLOR LED is proof that, “With Evolution Comes Change.”
- CONTROL FEATURES:
• USITT DMX-512 (16-bit resoultion)
• 7 DMX Channels
• 10 Digit Dip switches
• 3-pin XLR serial input/output
• Sound active mode
- OPTICAL SYSTEM:
• 24 1 watt LED’s
• 8 Red, 8 Green, 8 Blue
• 50,000 Lamp life
• 10-degree beam angle
• 45-degree optional lens kit
- RGB - ADDITIVE COLOR MIXING:
• The RGB color mixing system is based on graduated Red, Green, and Blue LED’s
• A continuous range of colors may be achieved by varying the amount of intensity from 0 to 100%
- DIMMER STROBE:
• Electronic Dimming: 0 - 100%
• Strobe-effect with a maximum flash rate of 0 - 18fps
• Pre-set variable/random strobe and dimming pulse effect
- BUILT IN FEATURES:
• Stand alone mode - with color fade setting
• Master Slave mode
• Sound Active mode
• Built in Color Macros
- RIGGING:
• Hanging Yoke with Clutch
• Optional portable floor stand
- POWER SUPPLY:
• Voltage 120V 60Hz or 230V 50Hz
• Power Consumption 45W
- DIMENSIONS & WEIGHT:
• PAR 64 CAN size
• (LxWxH): 18.5” x 10.75” x 10” / 470x274x254 mm
• 9 lbs. / 4 kgs.
|
