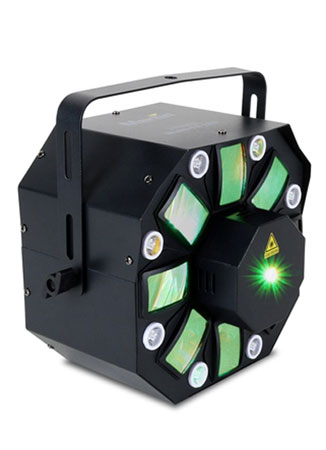

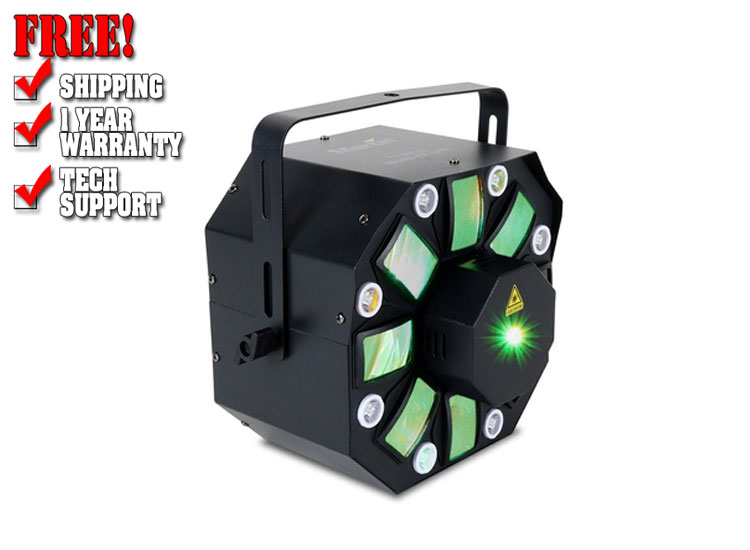

Martin THRILL Multi-FX LED

LET THE MUSIC DO THE TALKING

THRILL Multi-FX LED is a perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Multi-FX LED features a built-in microphone-simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has eight, professionally-programmed shows that can be run either standalone or with daisy-chained units-no lighting experience required.

Features

• Energizing multi-effect light featuring multibeam, laser, strobe
• Vibrant 5 x 3 W RGBWA rotating multibeam effects
• Blinding 8 x 1 W white LEDs for strobe effects
• Projects hundreds of razor sharp laser beams with 50 mW green and 100 mW red lasers
• Easy to operate standalone sound-activated, master/slave control methods
• 8 professionally pre-programmed shows
• DMX operable for individualized control and design
• Included adjustable bracket for hanging or surface mount
• Common IEC mains inlet/thru - mains cable included

Tech Specs

Physical

• Length: 246 mm (9.7 in.)
• Length with hanging bracket: 307 mm (12.1 in.)
• Width: 234 mm (9.3 in.)
• Width with hanging bracket: 234 mm (9.3 in.)
• Height: 246 mm (9.7 in.)
• Height with hanging bracket: 286 mm (11.3 in.)
• Weight: 4.5 kg (9.8 lbs.)

Dynamic Effects

• Multibeam effects
• Color mixing: RGBWA
• Color selection: 36 color presets
• Electronic dimming: 0-100%
• Strobe rate: 0-22 Hz
• Strobe and pulse effects: Variable speed and action, random strobe
• Electronic 'shutter' effect: Instant open and blackout
• Strobe effects
• Color: White
• Strobe rate: Fixed, 15 Hz
• Special effects: On/off, strobe effect, pulse effects, random and blackout
• Laser effects
• Color: Red, green
• Special effects: On/off, strobe effect, pulse effects, random and blackout

Control and Programming

• Control options: DMX, stand-alone
• Safety lockout switch, laser: Keyed switch on/off operation
• DMX channels: 2/16
• Stand-alone trigger options: Sound-trigger, auto-run
• User interface: Control panel with LED display
• DMX compliance: ANSI E1.11 - USITT DMX512-A

Optics

• Multibeam and strobe
• Multibeam light source: 5 x 3 W RGBWA LEDs
• Strobe light source: 8 x 1 W White LEDs
• Minimum LED lifetime: 30 000 hours (to >70% luminous output)*
• *Figure obtained under manufacturer's test conditions
• Laser
• Green laser, power / wavelength: 3.8 mW / 531 nm
• Red laser, power / wavelength: 1.5 mW / 659 nm
• Aperture diameter: 7 mm
• Beam shape: Divergent
• Pulse duration (frequency): Not pulsed
• Maximum single-beam laser power from aperature: 7.5 mW
• Class: 3R (US: Class IIIR)
• Minimum laser lifetime: 3 000 hours*
• *Figure obtained under manufacturer's test conditions

Construction

• Housing: Steel
• Color: Black
• Ingress protection: IP 20

Installation

• Mounting: Adjustable bracket, surface or truss mount
• Mounting points: Bracket for single rigging clamp, M12 or ½"
• Orientation: Any (respecting laser precautions)
• Location: Indoor, dry locations only, overhead use only
• Minimum distance above floor level: 3 m (9.8 ft.)
• Minimum distance from public: 3 m (9.8 ft.)

Connections

• AC power in/thru: IEC male inlet/female connector, C14/C13
• DMX data in/thru: 3-pin XLR

Electrical

• AC power: 100-240 V nominal, 50/60 Hz
• Fuse: F 3 AL, 250 V
• Typical power consumption:: 35 W*
• Maximum number of fixtures on AC power throughput, 100-130 V: 6 x THRILL Multi-FX LED or 3 A
• Maximum number of fixtures on AC power throughput, 220-240 V: 10 x THRILL Multi-FX LED or 3 A
• *Power consumption figures are typical, not maximum. Allow for +/-10% variation.

Typical Power and Current

• 110 V, 60 Hz: 0.5 A, 35 W *
• 230 V, 50 Hz: 0.3 A, 35 W *
• *Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
• Thermal
• Cooling: Passive
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 0° C (32° F)
• Total heat dissipation (calculated, +/- 10%) at full intensity, full white: 225 BTU/hr.
• Approvals
• EU safety: EN 60598-1, EN 60598-2-17, EN 60825-1, EN 62031, EN 6247-1, EN 6247-2-13, EN 62493, IEC TR 62471-2
• EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
• Australia/NZ (pending): RCM
