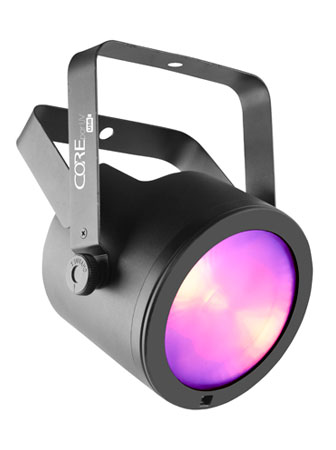

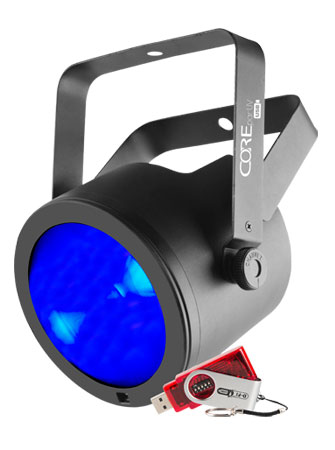

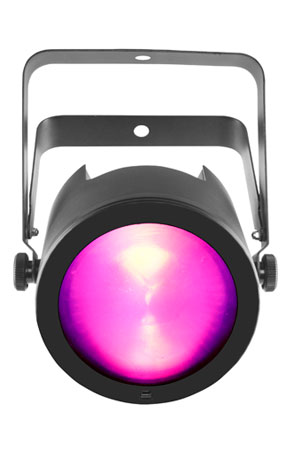

Chauvet COREpar™ UV USB

Features:

• Compact ultra-wide UV wash with COB (Chip-on-Board) technology
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control
• Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
• Withstand the harshness of traveling from gig to gig with a robust housing
• Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
• Multiple control options include DMX, Master/Slave and Sound-Active modes, IRC-6 or D-Fi™ USB
• Fits best in the CHS-25 VIP Gear Bag
• Compact design easily fits inside sticks of TRUSST®

Specification:

• DMX Channels: 1 or 5
• DMX Connectors: 3- pin XLR
• Light Source: 1 COB LED (UV) 70 W (1.5 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 33 Hz
• PWM Frequency: 2,000 Hz
• Coverage Angle: 100° without Fresnel lens, 50 with Fresnel lens
• Power Linking: 8 units @ 120 V; 15 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 67 W, 0.975 A @ 120 V, 60 Hz
• Power and Current: 65 W, 0.517 A @ 230 V, 50 Hz
• Weight: 4.6 lb (2.1 kg)
• Size: 5.5 x 7.9 x 10 in (139 x 200 x 253 mm)
• Optional Controllers: IRC-6
• Approvals: CE
